Alloy core-Metal soft magnetic core_Silicon Iron Core_KSF092-060A-E14

KSF092-060A-E14

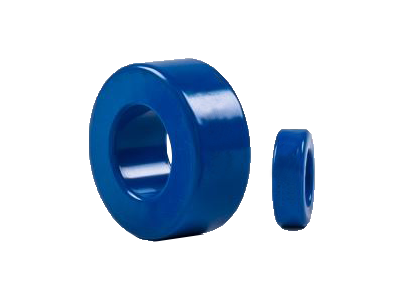

*The picture is for reference only, please refer to the actual product/technical specification for specific parameters

Alloy core-Metal soft magnetic core

  • 型号:KSF092-060A-E14
  • Coating ID (mm): 24.300
  • Coating OD (mm): 13.770
  • Coating HT (mm): 15.000
  • Without coating HT (mm): 23.60
  • Without coating ID (mm): 15.00
  • Without coating OD (mm): 14.00
  • Ae(cm2): 0.611
  • le(cm): 5.88
  • V(cm3): 3.591
  • W(cm2): 1.49
  • Perm.(μ): 60
  • Al(nH/N2): 80
