Differential Mode Inductor

Click to expand the criteria search box
  • Product number

  • {/php}
  • Inductance

  • DCR

  • Load current

  • Dimension (mm)

Differential Mode Inductor Filter Models: 101 in total, please see the table below.

Series Inductance DCR Load current Spec. Sample Application
FAHPI0412
0.15-4.70uH 0.009-0.195Ω 2200-15000mA
-
FAHPI0412-1R0M5R5
1.00uH 0.0470Ω 5500mA
FAHPI0412-1R5M4R0
1.50uH 0.0750Ω 4000mA
FAHPI0412-2R2M3R0
2.20uH 0.0835Ω 3000mA
FAHPI0412-4R7M2R2
4.70uH 0.1950Ω 2200mA
FAHPI0412-R15M15R0
0.15uH 0.0090Ω 15000mA
FAHPI0412-R22M11R0
0.22uH 0.0110Ω 11000mA
FAHPI0412-R33M8R4
0.33uH 0.0190Ω 8400mA
FAHPI0412-R47M6R8
0.47uH 0.0210Ω 6800mA
FAHPI0412-R68M6R0
0.68uH 0.0360Ω 6000mA
FAHPI0420
0.10-22.00uH 0.0066-0.3630Ω 1400-22000mA
-
FAHPI0420-1R0M7R0
1.00uH 0.0270Ω 7000mA
FAHPI0420-1R2M6R5
1.20uH 0.0270Ω 6500mA
FAHPI0420-1R5M5R5
1.50uH 0.0460Ω 5500mA
FAHPI0420-2R2M5R0
2.20uH 0.0580Ω 5000mA
FAHPI0420-3R3M3R5
3.30uH 0.0870Ω 3500mA
FAHPI0420-4R7M3R0
4.70uH 0.1050Ω 3000mA
FAHPI0420-6R8M2R5
6.80uH 0.1750Ω 2500mA
FAHPI0420-100M2R0
10.00uH 0.2820Ω 2000mA
FAHPI0420-220M1R4
22.00uH 0.3630Ω 1400mA
FAHPI0420-R10M22R0
0.10uH 0.0040Ω 22000mA
FAHPI0420-R22M12R5
0.22uH 0.0066Ω 12500mA
FAHPI0420-R33M12R0
0.33uH 0.0110Ω 12000mA
FAHPI0420-R47M9R5
0.47uH 0.0140Ω 9500mA
FAHPI0420-R56M9R0
0.56uH 0.0160Ω 9000mA
FAHPI0420-R68M8R0
0.68uH 0.0180Ω 8000mA
FAHPI0518
0.47-10.00uH 0.009-0.155Ω 3000-15500mA
-
FAHPI0518-1R0M
1.00uH 0.0170Ω 9000mA
FAHPI0518-1R5M8R0
1.50uH 0.0260Ω 8000mA
FAHPI0518-2R2M6R5
2.20uH 0.0350Ω 6500mA
FAHPI0518-3R3M5R0
3.30uH 0.0580Ω 5000mA
FAHPI0518-4R7M
4.70uH 0.0850Ω 4000mA
FAHPI0518-6R8M3R4
6.80uH 0.1200Ω 3400mA
FAHPI0518-100M3R0
10.00uH 0.1550Ω 3000mA
FAHPI0518-R47M15R5
0.47uH 0.0090Ω 15500mA
FAHPI0518-R56M15R0
0.56uH 0.0100Ω 15000mA
FAHPI0518-R68M11R2
0.68uH 0.1380Ω 11200mA
FAHPI0530
0.10-10.00uH 0.003-0.125Ω 3500-30000mA
-
FAHPI0530-1R0M10R0
1.00uH 0.0140Ω 10000mA
FAHPI0530-1R2M9R5
1.20uH 0.0160Ω 9500mA
FAHPI0530-1R5M9R0
1.50uH 0.0250Ω 9000mA
FAHPI0530-2R2M7R0
2.20uH 0.0290Ω 7000mA
FAHPI0530-3R3M6R0
3.30uH 0.0380Ω 6000mA
FAHPI0530-4R7M4R6
4.70uH 0.0600Ω 4600mA
FAHPI0530-6R8M3R6
6.80uH 0.0900Ω 3600mA
FAHPI0530-100M3R5
10.00uH 0.1250Ω 3500mA
FAHPI0530-R10M30R0
0.10uH 0.0030Ω 30000mA
FAHPI0530-R20M20R0
0.20uH 0.0039Ω 20000mA
FAHPI0530-R33M18R0
0.33uH 0.0055Ω 18000mA
FAHPI0530-R47M15R0
0.47uH 0.0085Ω 15000mA
FAHPI0530-R68M11R5
0.68uH 0.0120Ω 9000mA
FAHPI0615
0.47-10.00uH 0.0085-0.175Ω 3000-16000mA
-
FAHPI0615-1R0M9R0
1.00uH 0.0210Ω 9000mA
FAHPI0615-2R2M7R0
2.20uH 0.0540Ω 7000mA
FAHPI0615-3R3M5R5
3.30uH 0.0630Ω 5500mA
FAHPI0615-4R7M5R0
4.70uH 0.0850Ω 5000mA
FAHPI0615-6R8M4R0
6.80uH 0.1350Ω 4000mA
FAHPI0615-100M3R0
10.0uH 0.1750Ω 3000mA
FAHPI0615-R47M16R0
0.47uH 0.0085Ω 16000mA
FAHPI0615-R56M14R0
0.56uH 0.0110Ω 14000mA
FAHPI0615-R68M12R0
0.68uH 0.0120Ω 12000mA
FAHPI0615-R82M10R0
0.82uH 0.0170Ω 10000mA
FAHPI0618
0.10-22.00uH 0.0023-0.35Ω 1200-38000mA
-
FAHPI0618-1R0M12R0
1.00uH 0.0160Ω 1200mA
FAHPI0618-1R5M9R2
1.50uH 0.0260Ω 9200mA
FAHPI0618-2R2M8R0
2.20uH 0.0350Ω 8000mA
FAHPI0618-3R3M6R0
3.30uH 0.0500Ω 6000mA
FAHPI0618-4R7M5R0
4.70uH 0.0620Ω 5000mA
FAHPI0618-6R8M4R5
6.80uH 0.1100Ω 4500mA
FAHPI0618-100M4R0
10.00uH 0.1550Ω 4000mA
FAHPI0618-220M2R3
22.00uH 0.3500Ω 2300mA
FAHPI0618-R10M38R0
0.10uH 0.0023Ω 38000mA
FAHPI0618-R22M24R0
0.22uH 0.0035Ω 24000mA
FAHPI0618-R47M18R0
0.47uH 0.0084Ω 18000mA
FAHPI0618-R68M16R5
0.68uH 0.0120Ω 16500mA
FAHPI0624
0.22-22.0uH 0.003-0.23Ω 2500-34000mA
-
FAHPI0624-1R0M15R0
1uH 0.0135Ω 15000mA
FAHPI0624-1R5M13R5
1.50uH 0.0200Ω 13500mA -
FAHPI0624-2R2M10R0
2.20uH 0.0280Ω 10000mA
FAHPI0624-3R3M8R0
3.30uH 0.0390Ω 8000mA
FAHPI0624-4R7M6R5
4.70uH 0.0500Ω 6500mA
FAHPI0624-6R8M6R0
6.80uH 0.0700Ω 6000mA
FAHPI0624-100M4R0
10.00uH 0.1010Ω 4000mA
FAHPI0624-150M3R3
15.00uH 0.1600Ω 3300mA
FAHPI0624-220M2R5
22.00uH 0.2300Ω 2500mA
FAHPI0624-R22M34R0
0.22uH 0.0030Ω 34000mA
FAHPI0624-R33M24R5
0.33uH 0.0041Ω 24500mA
FAHPI0624-R47M22R0
0.47uH 0.0051Ω 22000mA
FAHPI0624-R56M17R0
0.56uH 0.0065Ω 17000mA
FAHPI0624-R68M16R0
0.68uH 0.0070Ω 16000mA
FAHPI0630
0.22-47.0uH 0.003-0.385Ω 2000-25000mA
-
FAHPI0630-1R0M15R0
1.00uH 0.0074Ω 15000mA
FAHPI0630-1R5M
1.50uH 0.0121Ω 12000mA
FAHPI0630-2R2M10R0
2.20uH 0.0150Ω 10000mA
FAHPI0630-3R3M9R5
3.30uH 0.0220Ω 9500mA
FAHPI0630-4R7M
4.70uH 0.0330Ω 9000mA
FAHPI0630-5R6M6R5
5.60uH 0.0420Ω 6500mA
FAHPI0630-6R8M6R0
6.80uH 0.0480Ω 6000mA
FAHPI0630-8R2M5R5
8.20uH 0.0600Ω 5500mA
FAHPI0630-100M5R5
10.00uH 0.0680Ω 5500mA
FAHPI0630-150M4R0
15.00uH 0.1130Ω 4000mA
FAHPI0630-220M3R0
22.00uH 0.1700Ω 3000mA
FAHPI0630-330M2R5
33.00uH 0.2700Ω 2500mA
FAHPI0630-470M2R0
47.00uH 0.3850Ω 2000mA
FAHPI0630-R22M34R0
0.22uH 0.0030Ω 3400mA
FAHPI0630-R33M25R0
0.33uH 0.0035Ω 25000mA
FAHPI0630-R47M20R0
0.47uH 0.0041Ω 20000mA
FAHPI0630-R56M18R0
0.56uH 0.0045Ω 18000mA
FAHPI0630-R68M17R0
0.68uH 0.0053Ω 17000mA
FAHPI0630-R82M16R0
0.82uH 0.0060Ω 16000mA
FAHPI0640
0.68-47.00uH 0.0048-0.32Ω 2500-19000mA
-
FAHPI0640-1R0M16R0
1.00uH 0.0066Ω 16000mA
FAHPI0640-1R5M12R5
1.50uH 0.0100Ω 12500mA
FAHPI0640-2R2M11R0
2.20uH 0.0140Ω 11000mA
FAHPI0640-3R3M9R5
3.30uH 0.0200Ω 9500mA
FAHPI0640-4R7M9R0
4.70uH 0.0300Ω 9000mA
FAHPI0640-6R8M6R5
6.80uH 0.0450Ω 6500mA
FAHPI0640-100M6R0
10.00uH 0.0650Ω 6000mA
FAHPI0640-150M4R5
15.00uH 0.0950Ω 4500mA
FAHPI0640-220M4R0
22.00uH 0.1250Ω 4000mA
FAHPI0640-330M3R0
33.00uH 0.2400Ω 3000mA
FAHPI0640-470M2R5
47.00uH 0.3200Ω 2500mA
FAHPI0640-R68M19R0
0.68uH 0.0048Ω 19000mA
FAHPI0650
0.47-47.0uH 0.0039-0.2300Ω 2600-21000mA
-
FAHPI0650-1R0M16R0
1.00uH 0.0066Ω 16000mA
FAHPI0650-1R5M13R0
1.50uH 0.0100Ω 13000mA
FAHPI0650-2R2M11R0
2.20uH 0.0125Ω 11000mA
FAHPI0650-3R3M10R0
3.30uH 0.0220Ω 10000mA
FAHPI0650-4R7M8R0
4.70uH 0.0290Ω 8000mA
FAHPI0650-6R8M6R3
6.80uH 0.0410Ω 6300mA
FAHPI0650-8R2M5R5
8.20uH 0.0480Ω 5500mA
FAHPI0650-100M5R3
10.00uH 0.0600Ω 5300mA
FAHPI0650-150M4R0
15.00uH 0.0900Ω 4000mA
FAHPI0650-220M3R5
22.00uH 0.1400Ω 3500mA
FAHPI0650-330M3R0
33.00uH 0.1900Ω 3000mA
FAHPI0650-470M2R6
47.00uH 0.2300Ω 2600mA
FAHPI0650-R47M21R0
0.47uH 0.0039Ω 21000mA
FAHPI0650-R68M18R0
0.68uH 0.0045Ω 18000mA
FAHPI1030
0.22-33.0uH 0.0012-0.1600Ω 4000-50000mA -
-
FAHPI1030-1R0M21R0
1.00uH 0.0060Ω 21000mA
FAHPI1030-2R2M14R0
2.20uH 0.0090Ω 14000mA
FAHPI1030-3R3M12R0
3.30uH 0.0160Ω 12000mA
FAHPI1030-4R7M10R0
4.70uH 0.0240Ω 24000mA
FAHPI1030-8R2M7R0
8.20uH 0.0450Ω 7000mA
FAHPI1030-330M4R0
33.00uH 0.1600Ω 4000mA
FAHPI1030-R22M50R0
0.22uH 0.0012Ω 50000mA
FAHPI1030-R33M32R0
0.33uH 0.0016Ω 32000mA
FAHPI1030-R36M28R0
0.36uH 0.0016Ω 28000mA
FAHPI1030-R47M26R0
0.47uH 0.0025Ω 26000mA
FAHPI1030-R82M23R0
0.82uH 0.0037Ω 23000mA
FAHPI1040
0.22-68.0uH 0.0010-0.195Ω 3000-60000mA
-
FAHPI1040-1R0M28R0
1.00uH 0.0033Ω 28000mA
FAHPI1040-1R5M24R0
1.50uH 0.0042Ω 24000mA
FAHPI1040-2R2M16R5
2.20uH 0.0070Ω 16500mA
FAHPI1040-3R3M16R0
3.30uH 0.0118Ω 16000mA
FAHPI1040-4R7M13R0
4.70uH 0.0200Ω 13000mA
FAHPI1040-6R8M12R0
6.80uH 0.0250Ω 12000mA
FAHPI1040-8R2M9R0
8.20uH 0.0270Ω 9000mA
FAHPI1040-100M8R5
10.00uH 0.0350Ω 8500mA
FAHPI1040-150M7R0
15.00uH 0.0450Ω 7000mA
FAHPI1040-220M5R5
22.00uH 0.0660Ω 5500mA
FAHPI1040-330M4R8
33.00uH 0.0920Ω 4800mA
FAHPI1040-470M3R5
47.00uH 0.1450Ω 3500mA
FAHPI1040-680M3R0
68.00uH 0.1950Ω 3000mA
FAHPI1040-R22M60R0
0.22uH 0.0010Ω 60000mA
FAHPI1040-R30M45R0
0.30uH 0.0011Ω 45000mA
FAHPI1040-R36M45R0
0.36uH 0.0012Ω 45000mA
FAHPI1040-R47M40R0
0.47uH 0.0017Ω 40000mA -
FAHPI1040-R56M33R0
0.56uH 0.0018Ω 33000mA -
FAHPI1040-R68M30R0
0.68uH 0.0024Ω 30000mA -
FAHPI1040-R80M29R0
0.80uH 0.0027Ω 29000mA -
FAHPI1050
0.22-100.0uH 0.0008-0.2900Ω 2800-65000mA -
-
FAHPI1050-1R0M30R0
1.00uH 0.0030Ω 30000mA
FAHPI1050-1R5M25R0
1.50uH 0.0038Ω 25000mA
FAHPI1050-2R2M19R0
2.20uH 0.0060Ω 19000mA
FAHPI1050-3R3M16R0
3.30uH 0.0100Ω 16000mA
FAHPI1050-4R7M15R0
4.70uH 0.0140Ω 15000mA
FAHPI1050-5R6M14R0
5.60uH 0.0170Ω 14000mA
FAHPI1050-6R8M14R0
6.80uH 0.0185Ω 14000mA
FAHPI1050-100M10R0
10.00uH 0.0280Ω 10000mA
FAHPI1050-101M2R8
100.00uH 0.2900Ω 2800mA
FAHPI1050-150M7R5
15.00uH 0.0420Ω 7500mA
FAHPI1050-220M6R0
22.00uH 0.0500Ω 6000mA
FAHPI1050-330M5R2
33.00uH 0.0860Ω 5200mA
FAHPI1050-470M4R5
47.00uH 0.1270Ω 4500mA
FAHPI1050-R22M65R0
0.22uH 0.0008Ω 65000mA
FAHPI1240
0.22-22.0uH 0.0009-0.051Ω 6000-48000mA -
-
FAHPI1240-1R0M35R0
1.00uH 0.0075Ω 35000mA
FAHPI1240-1R5M30R5
1.50uH 0.0095Ω 30500mA
FAHPI1240-2R2M26R0
2.20uH 0.0115Ω 26000mA
FAHPI1240-3R3M21R0
3.30uH 0.0130Ω 21000mA
FAHPI1240-4R7M18R0
4.70uH 0.0145Ω 18000mA
FAHPI1240-6R8M14R0
6.80uH 0.0200Ω 14000mA
FAHPI1240-100M10R0
10.00uH 0.0250Ω 10000mA
FAHPI1240-150M7R5
15.00uH 0.0390Ω 7500mA
FAHPI1240-220M6R0
22.00uH 0.0510Ω 6000mA
FAHPI1240-R22M50R0
0.22uH 0.0009Ω 50000mA
FAHPI1240-R47M48R0
0.47uH 0.0020Ω 48000mA
FAHPI1240-R68M47R0
0.68uH 0.0035Ω 47000mA
FAHPI1240-R82M40R0
0.82uH 0.0045Ω 40000mA
FAHPI1250
0.22-47.00uH 0.0007-0.13Ω 3900-35000mA -
-
FAHPI1250-1R0M35R0
1.00uH 0.0022Ω 35000mA
FAHPI1250-1R5M33R0
1.50uH 0.0032Ω 33000mA
FAHPI1250-2R2M24R0
2.20uH 0.0050Ω 24000mA
FAHPI1250-3R3M22R0
3.30uH 0.0070Ω 22000mA
FAHPI1250-4R7M20R0
4.70uH 0.0090Ω 20000mA
FAHPI1250-6R8M16R0
6.80uH 0.0180Ω 16000mA
FAHPI1250-8R2M13R0
8.20uH 0.0200Ω 13000mA
FAHPI1250-100M12R0
10.00uH 0.0220Ω 12000mA
FAHPI1250-150M10R0
15.00uH 0.0300Ω 10000mA
FAHPI1250-220M6R5
22.00uH 0.0580Ω 6500mA
FAHPI1250-330M6R0
33.00uH 0.0840Ω 6000mA
FAHPI1250-470M5R0
47.00uH 0.1300Ω 5000mA
FAHPI1250-R22M75R0
0.22uH 0.0007Ω 7500mA
FAHPI1250-R36M50R0
0.36uH 0.0008Ω 5000mA
FAHPI1250-R50M48R0
0.50uH 0.0012Ω 4800mA
FAHPI1250-R68M46R0
0.68uH 0.0016Ω 4600mA
FAHPI1250-R82M39R0
0.82uH 0.0017Ω 3900mA
FAHPI1260
4.70-150.00uH 0.009-0.35Ω 2700-24000mA -
-
FAHPI1260-4R7M24R0
4.70uH 0.0090Ω 24000mA
FAHPI1260-5R6M22R5
5.60uH 0.0110Ω 22500mA
FAHPI1260-6R8M19R0
6.80uH 0.0135Ω 19000mA
FAHPI1260-8R2M13R5
8.20uH 0.0160Ω 13500mA
FAHPI1260-100M12R5
10.00uH 0.0207Ω 12500mA
FAHPI1260-101M3R5
100.00uH 0.2000Ω 3500mA
FAHPI1260-120M10R0
12.00uH 0.0230Ω 10000mA
FAHPI1260-121M3R2
120.00uH 0.2350Ω 3200mA
FAHPI1260-150M9R0
15.00uH 0.0290Ω 9000mA
FAHPI1260-151M2R7
150.00uH 0.3500Ω 2700mA
FAHPI1260-180M8R0
18.00uH 0.0350Ω 8000mA
FAHPI1260-220M7R5
22.00uH 0.0395Ω 7500mA
FAHPI1260-270M6R5
27.00uH 0.0560Ω 6500mA
FAHPI1260-330M6R0
33.00uH 0.0750Ω 6000mA
FAHPI1260-470M5R5
47.00uH 0.0900Ω 5500mA
FAHPI1260-680M4R5
68.00uH 0.1400Ω 4500mA
FAHPI1265
4.70-100.00uH 0.0085-0.17Ω 4000-24000mA -
-
FAHPI1265-4R7M24R0
4.70uH 0.0085Ω 24000mA
FAHPI1265-5R6M22R5
5.60uH 0.0105Ω 22500mA
FAHPI1265-6R8M19R0
6.80uH 0.0120Ω 19000mA
FAHPI1265-8R2M16R0
8.20uH 0.0140Ω 16000mA
FAHPI1265-100M15R0
10.00uH 0.0165Ω 15000mA
FAHPI1265-101M4R0
100.00uH 0.1700Ω 4000mA
FAHPI1265-150M11R0
15.00uH 0.0260Ω 11000mA
FAHPI1265-220M9R0
22.00uH 0.0360Ω 9000mA
FAHPI1265-330M8R0
33.00uH 0.0650Ω 8000mA
FAHPI1265-470M6R8
47.00uH 0.0700Ω 6800mA
FAHPI1265-680M5R2
68.00uH 0.1200Ω 5200mA
FAHPI1265-820M4R5
82.00uH 0.1350Ω 4500mA
FAHPI1770
2.20-100.00uH 0.0025-0.1300Ω 6500-34000mA -
-
FAHPI1770-2R2M34R0
2.20uH 0.0025Ω 34000mA
FAHPI1770-3R3M30R0
3.30uH 0.0039Ω 30000mA
FAHPI1770-4R7M24R0
4.70uH 0.0048Ω 24000mA
FAHPI1770-6R8M22R0
6.80uH 0.0075Ω 22000mA
FAHPI1770-8R2M20R0
8.20uH 0.0087Ω 20000mA
FAHPI1770-100M19R0
10.00uH 0.0099Ω 19000mA
FAHPI1770-101M5R0
100.00uH 0.1300Ω 5000mA
FAHPI1770-150M14R5
15.00uH 0.0170Ω 14500mA
FAHPI1770-220M11R5
22.00uH 0.0230Ω 11500mA
FAHPI1770-330M10R0
33.00uH 0.0370Ω 10000mA
FAHPI1770-470M7R5
47.00uH 0.0470Ω 7500mA
FAHPI1770-680M6R5
68.00uH 0.0850Ω 6500mA
FALQH-1210
0.1-560uH 0.25-28.0Ω 40-700mA -
-
FALQH-1210-1R0M
1.00uH 0.5000Ω 445mA
FALQH-1210-1R2M
1.20uH 0.6000Ω 425mA
FALQH-1210-1R5M
1.50uH 0.6000Ω 400mA
FALQH-1210-1R8M
1.80uH 0.7000Ω 390mA
FALQH-1210-2R2M
2.20uH 0.8000Ω 370mA
FALQH-1210-2R7M
2.70uH 0.9000Ω 320mA
FALQH-1210-3R3M
3.30uH 1.0000Ω 300mA
FALQH-1210-3R9M
3.90uH 1.1000Ω 290mA
FALQH-1210-4R7K
4.70uH 1.2000Ω 270mA
FALQH-1210-5R6K
5.60uH 1.3000Ω 250mA
FALQH-1210-6R8K
6.80uH 1.5000Ω 240mA
FALQH-1210-8R2K
8.20uH 1.6000Ω 225mA
FALQH-1210-100K
10.00uH 1.8000Ω 190mA
FALQH-1210-101K
100.00uH 7.0000Ω 80mA
FALQH-1210-120K
12.00uH 2.0000Ω 180mA
FALQH-1210-121K
120.00uH 8.0000Ω 75mA
FALQH-1210-150K
15.00uH 2.2000Ω 170mA
FALQH-1210-151K
150.00uH 9.3000Ω 70mA
FALQH-1210-180K
18.00uH 2.5000Ω 165mA
FALQH-1210-181K
180.00uH 10.2000Ω 65mA
FALQH-1210-220K
22.00uH 2.8000Ω 150mA
FALQH-1210-221K
220.00uH 11.8000Ω 65mA
FALQH-1210-270K
27.00uH 3.1000Ω 125mA
FALQH-1210-271K
270.00uH 12.5000Ω 65mA
FALQH-1210-330K
33.00uH 3.5000Ω 115mA
FALQH-1210-331K
330.00uH 13.0000Ω 65mA
FALQH-1210-390K
39.00uH 3.9000Ω 110mA
FALQH-1210-391K
390.00uH 22.0000Ω 50mA
FALQH-1210-470K
47.00uH 4.3000Ω 100mA
FALQH-1210-471K
470.00uH 24.7000Ω 45mA
FALQH-1210-560K
56.00uH 4.9000Ω 85mA
FALQH-1210-561K
560.00uH 28.0000Ω 40mA
FALQH-1210-680K
68.00uH 5.5000Ω 80mA
FALQH-1210-820K
82.00uH 6.2000Ω 70mA
FALQH-1210-R10M
0.10uH 0.2500Ω 700mA
FALQH-1210-R18M
0.18uH 0.2500Ω 650mA
FALQH-1210-R27M
0.27uH 0.2500Ω 600mA
FALQH-1210-R39M
0.39uH 0.2500Ω 530mA
FALQH-1210-R56M
0.56uH 0.2500Ω 530mA
FALQH-1210-R68M
0.68uH 0.2500Ω 470mA
FALQH-1210-R82M
0.82uH 0.2500Ω 450mA
FALQH-1812
1.0-2200uH 0.00094-30Ω 30-550mA -
-
FALQH-1812-1R0M
1.00uH 0.2000Ω 550mA
FALQH-1812-1R2M
1.20uH 0.2500Ω 530mA
FALQH-1812-1R5M
1.50uH 0.2800Ω 500mA
FALQH-1812-1R8M
1.80uH 0.3000Ω 500mA
FALQH-1812-2R2M
2.20uH 0.3000Ω 500mA
FALQH-1812-2R7M
2.70uH 0.3200Ω 500mA
FALQH-1812-3R3M
3.30uH 0.3500Ω 500mA
FALQH-1812-3R9M
3.90uH 0.3800Ω 500mA
FALQH-1812-4R7K
4.70uH 0.4000Ω 500mA
FALQH-1812-5R6K
5.60uH 0.4700Ω 500mA
FALQH-1812-6R8K
6.80uH 0.5000Ω 500mA
FALQH-1812-8R2K
8.20uH 0.5600Ω 500mA
FALQH-1812-100K
10.00uH 0.5600Ω 450mA
FALQH-1812-101K
100.00uH 2.5000Ω 175mA
FALQH-1812-102K
1000.00uH 25.000Ω 50mA
FALQH-1812-120K
12.00uH 0.6200Ω 450mA
FALQH-1812-121K
120.00uH 3.0000Ω 165mA
FALQH-1812-122K
1200.00uH 30.0000Ω 45mA
FALQH-1812-150K
15.00uH 0.7300Ω 390mA
FALQH-1812-152K
1500.00uH 0.0370Ω 40mA
FALQH-1812-180K
18.00uH 0.0082Ω 370mA
FALQH-1812-181K
180.00uH 0.0045Ω 135mA
FALQH-1812-182K
180.00uH 0.0450Ω 35mA
FALQH-1812-220K
22.00uH 0.00094Ω 350mA
FALQH-1812-221K
220.00uH 0.0054Ω 125mA
FALQH-1812-222K
2200.00uH 0.0500Ω 30mA
FALQH-1812-270K
27.00uH 0.0011Ω 330mA
FALQH-1812-271K
270.00uH 0.0068Ω 115mA
FALQH-1812-330K
33.00uH 0.0012Ω 310mA
FALQH-1812-331K
330.00uH 0.0082Ω 100mA
FALQH-1812-390K
39.00uH 0.0014Ω 280mA
FALQH-1812-391K
390.00uH 0.0097Ω 90mA
FALQH-1812-470K
47.00uH 0.0015Ω 250mA
FALQH-1812-471K
470.00uH 0.0120Ω 80mA
FALQH-1812-560K
56.00uH 0.0017Ω 225mA
FALQH-1812-561K
560.00uH 0.0150Ω 70mA
FALQH-1812-680K
68.00uH 0.0019Ω 225mA
FALQH-1812-681K
680.00uH 0.0170Ω 65mA
FALQH-1812-820K
82.00uH 0.0022Ω 185mA
FALQH-1812-821K
820.00uH 0.0210Ω 60mA
FALQH-2220
0.12-10000uH 0.0100-140.0000Ω 50-6000mA -
-
FALQH-2220-1R0M
1.00uH 0.0270Ω 4000mA
FALQH-2220-1R5M
1.50uH 0.0310Ω 3700mA
FALQH-2220-2R2M
2.20uH 0.0410Ω 3200mA
FALQH-2220-3R3M
3.30uH 0.0500Ω 2900mA
FALQH-2220-4R7M
4.70uH 0.0570Ω 2700mA
FALQH-2220-6R8M
6.80uH 0.1000Ω 2000mA
FALQH-2220-100K
10.00uH 0.1300Ω 1700mA
FALQH-2220-101K
100.00uH 1.2000Ω 560mA
FALQH-2220-102K
1000.00uH 14.4000Ω 150mA
FALQH-2220-103K
10000.00uH 140.0000Ω 50mA
FALQH-2220-150K
15.00uH 0.2100Ω 1400mA
FALQH-2220-151K
150.00uH 2.6600Ω 420mA
FALQH-2220-152K
1500.00uH 30.1000Ω 100mA
FALQH-2220-220K
22.00uH 0.2700Ω 1200mA
FALQH-2220-221K
220.00uH 3.3600Ω 320mA
FALQH-2220-222K
2200.00uH 45.0000Ω 90mA
FALQH-2220-330K
33.00uH 0.4500Ω 900mA
FALQH-2220-331K
330.00uH 6.1600Ω 270mA
FALQH-2220-332K
3300.00uH 50.0000Ω 80mA
FALQH-2220-470K
47.00uH 0.5600Ω 800mA
FALQH-2220-471K
470.00uH 7.5600Ω 240mA
FALQH-2220-472K
4700.00uH 61.0000Ω 70mA
FALQH-2220-680K
68.00uH 0.9400Ω 640mA
FALQH-2220-681K
680.00uH 11.3000Ω 190mA
FALQH-2220-682K
6800.00uH 100.0000Ω 60mA
FALQH-2220-822K
8200.00uH 125.0000Ω 50mA
FALQH-2220-R12M
0.12uH 0.0100Ω 6000mA
FALQH-2220-R27M
0.27uH 0.0140Ω 5300mA
FALQH-2220-R47M
0.47uH 0.0180Ω 4800mA
FAMPI0412
0.10-10.0uH 0.0055-0.4630Ω 1400-25000mA -
-
FAMPI0412-1R0M6R0
1.00uH 0.0500Ω 6000mA
FAMPI0412-1R5M4R0
1.50uH 0.0730Ω 4000mA
FAMPI0412-2R2M3R5
2.20uH 0.0800Ω 3500mA
FAMPI0412-3R3M3R0
3.30uH 0.0970Ω 3000mA
FAMPI0412-4R7M2R5
4.70uH 0.1850Ω 2500mA
FAMPI0412-5R6M2R3
5.60uH 0.2080Ω 2300mA
FAMPI0412-6R8M1R7
6.80uH 0.3600Ω 1700mA
FAMPI0412-8R2M1R6
8.20uH 0.3760Ω 1600mA
FAMPI0412-100M1R4
10.00uH 0.4630Ω 1400mA
FAMPI0412-R10M25R0
0.10uH 0.0055Ω 25000mA
FAMPI0412-R22M20R0
0.22uH 0.0120Ω 20000mA
FAMPI0412-R47M6R5
0.47uH 0.0200Ω 6500mA
FAMPI0420
0.10-22.0uH 0.004-0.500Ω 1400-35000mA -
-
FAMPI0420-1R0M8R5
1.00uH 0.0275Ω 8500mA
FAMPI0420-1R2M7R8
1.20uH 0.0300Ω 7800mA
FAMPI0420-1R5M7R0
1.50uH 0.0420Ω 7000mA
FAMPI0420-2R2M6R0
2.20uH 0.0610Ω 6000mA
FAMPI0420-3R3M4R0
3.30uH 0.0900Ω 4000mA
FAMPI0420-4R7M3R5
4.70uH 0.1050Ω 3500mA
FAMPI0420-5R6M3R0
5.60uH 0.1250Ω 3000mA
FAMPI0420-6R8M2R8
6.80uH 0.1720Ω 2800mA
FAMPI0420-8R2M2R5
8.20uH 0.1800Ω 2500mA
FAMPI0420-100M2R3
10.00uH 0.2430Ω 2300mA
FAMPI0420-150M1R9
15.00uH 0.3740Ω 1900mA
FAMPI0420-220M1R4
22.00uH 0.5000Ω 1400mA
FAMPI0420-R10M35R0
0.10uH 0.0040Ω 35000mA
FAMPI0420-R18M28R0
0.18uH 0.0054Ω 28000mA
FAMPI0420-R22M24R0
0.22uH 0.0073Ω 24000mA
FAMPI0420-R33M18R0
0.33uH 0.0086Ω 18000mA
FAMPI0420-R47M12R0
0.47uH 0.0140Ω 12000mA
FAMPI0420-R56M10R0
0.56uH 0.0170Ω 10000mA
FAMPI0420-R68M10R0
0.68uH 0.0190Ω 10000mA
FAMPI0512
0.10-10.0uH 0.0052-0.385Ω 1800-14500mA -
-
FAMPI0512-1R0M6R0
1.00uH 0.0300Ω 6000mA
FAMPI0512-1R2M5R5
1.20uH 0.0400Ω 5500mA
FAMPI0512-1R5M5R0
1.50uH 0.0440Ω 5000mA
FAMPI0512-2R2M4R0
2.20uH 0.0750Ω 4000mA
FAMPI0512-3R3M3R8
3.30uH 0.0860Ω 3800mA
FAMPI0512-4R7M3R2
4.70uH 0.1150Ω 3200mA
FAMPI0512-5R6M3R2
5.60uH 0.2010Ω 3200mA
FAMPI0512-6R8M3R0
6.80uH 0.2220Ω 3000mA
FAMPI0512-8R2M2R8
8.20uH 0.3780Ω 2800mA
FAMPI0512-100M1R8
10.00uH 0.3850Ω 1800mA
FAMPI0512-R10M14R5
0.10uH 0.0052Ω 14500mA
FAMPI0512-R22M14R0
0.22uH 0.0067Ω 14000mA
FAMPI0512-R33M13R5
0.33uH 0.0094Ω 13500mA
FAMPI0512-R36M13R0
0.36uH 0.0115Ω 13000mA
FAMPI0512-R47M11R0
0.47uH 0.0158Ω 11000mA
FAMPI0512-R68M9R0
0.68uH 0.0245Ω 9000mA
FAMPI0515
0.33-10.0uH 0.0098-0.2350Ω 2300-16000mA -
-
FAMPI0515-1R0M9R0
1.00uH 0.0253Ω 9000mA
FAMPI0515-1R5M7R0
1.50uH 0.0450Ω 7000mA
FAMPI0515-2R2M6R0
2.20uH 0.0520Ω 6000mA
FAMPI0515-3R3M4R5
3.30uH 0.0900Ω 4500mA
FAMPI0515-4R7M4R0
4.70uH 0.1180Ω 4000mA
FAMPI0515-5R6M3R2
5.60uH 0.1520Ω 3200mA
FAMPI0515-6R8M3R0
6.80uH 0.1710Ω 3000mA
FAMPI0515-8R2M2R6
8.20uH 0.2100Ω 2600mA
FAMPI0515-100M2R3
10.00uH 0.2350Ω 2300mA
FAMPI0515-R33M16R0
0.33uH 0.0098Ω 16000mA
FAMPI0515-R47M15R0
0.47uH 0.0138Ω 15000mA
FAMPI0515-R68M13R0
0.68uH 0.0162Ω 13000mA
FAMPI0518
0.33-10.0uH 0.0086-0.1900Ω 2800-15000mA -
-
FAMPI0518-1R0M10R0
1.00uH 0.0210Ω 10000mA
FAMPI0518-1R5M9R0
1.50uH 0.0300Ω 9000mA
FAMPI0518-2R2M7R5
2.20uH 0.0483Ω 7500mA
FAMPI0518-3R3M5R0
3.30uH 0.0690Ω 5000mA
FAMPI0518-4R7M4R5
4.70uH 0.0980Ω 4500mA
FAMPI0518-5R6M4R0
5.60uH 0.1270Ω 4000mA
FAMPI0518-6R8M3R5
6.80uH 0.1370Ω 3500mA
FAMPI0518-8R2M3R0
8.20uH 0.1650Ω 3000mA
FAMPI0518-100M2R8
10.00uH 0.1900Ω 2800mA
FAMPI0518-R33M15R0
0.33uH 0.0086Ω 15000mA
FAMPI0518-R47M14R0
0.47uH 0.0113Ω 14000mA
FAMPI0518-R68M13R0
0.68uH 0.0143Ω 13000mA
FAMPI0520
0.33-10.00uH 0.0073-0.1890Ω 3400-21300mA -
-
FAMPI0520-1R0M11R7
1.00uH 0.0192Ω 11700mA
FAMPI0520-1R2M11R0
1.20uH 0.0280Ω 11000mA
FAMPI0520-1R5M9R8
1.50uH 0.0305Ω 9800mA
FAMPI0520-2R2M9R0
2.20uH 0.0500Ω 9000mA
FAMPI0520-3R3M7R3
3.30uH 0.0700Ω 7300mA
FAMPI0520-4R7M5R0
4.70uH 0.1060Ω 5000mA
FAMPI0520-5R6M4R0
5.60uH 0.1220Ω 4000mA
FAMPI0520-6R8M3R8
6.80uH 0.1450Ω 3800mA
FAMPI0520-8R2M3R5
8.20uH 0.1680Ω 3500mA
FAMPI0520-100M3R4
10.00uH 0.1890Ω 3400mA
FAMPI0520-R33M21R3
0.33uH 0.0073Ω 21300mA
FAMPI0520-R47M18R0
0.47uH 0.0086Ω 18000mA
FAMPI0520-R68M12R8
0.68uH 0.01240Ω 12800mA
FAMPI0530
0.33-10.00uH 0.0050-0.1260Ω 3500-18000mA -
-
FAMPI0530-1R0M11R0
1.00uH 0.0135Ω 11000mA
FAMPI0530-1R2M11R0
1.20uH 0.0155Ω 11000mA
FAMPI0530-1R5M10R0
1.50uH 0.0230Ω 10000mA
FAMPI0530-2R2M9R0
2.20uH 0.0350Ω 9000mA
FAMPI0530-3R3M8R0
3.30uH 0.0380Ω 8000mA
FAMPI0530-4R7M6R0
4.70uH 0.0530Ω 6000mA
FAMPI0530-5R6M6R0
5.60uH 0.0630Ω 6000mA
FAMPI0530-6R8M4R3
6.80uH 0.0762Ω 4300mA
FAMPI0530-100M3R5
10.00uH 0.1260Ω 3500mA
FAMPI0530-R33M18R0
0.33uH 0.0050Ω 18000mA
FAMPI0530-R47M16R0
0.47uH 0.0074Ω 16000mA
FAMPI0530-R68M14R0
0.68uH 0.0115Ω 14000mA
FAMPI0612
0.22-10.00uH 0.0075-0.2900Ω 2500-19000mA -
-
FAMPI0612-1R0M7R0
1.00uH 0.0300Ω 7000mA
FAMPI0612-1R2M6R8
1.20uH 0.0360Ω 6800mA
FAMPI0612-1R5M6R5
1.50uH 0.0400Ω 6500mA
FAMPI0612-2R2M5R0
2.20uH 0.0610Ω 5000mA
FAMPI0612-3R3M4R0
3.30uH 0.1000Ω 4000mA
FAMPI0612-4R7M3R8
4.70uH 0.1500Ω 3800mA
FAMPI0612-6R8M3R0
6.80uH 0.1980Ω 3000mA
FAMPI0612-100M2R5
10.00uH 0.2900Ω 2500mA
FAMPI0612-R22M19R0
0.22uH 0.0075Ω 19000mA
FAMPI0612-R33M16R0
0.33uH 0.0100Ω 16000mA
FAMPI0612-R47M12R0
0.47uH 0.0170Ω 12000mA
FAMPI0612-R68M9R0
0.68uH 0.0190Ω 9000mA
FAMPI0615
0.22-10.00uH 0.0052-0.2160Ω 2800-22000mA -
-
FAMPI0615-1R0M12R0
1.00uH 0.0258Ω 12000mA
FAMPI0615-1R2M10R5
1.20uH 0.0340Ω 10500mA
FAMPI0615-1R5M9R5
1.50uH 0.0425Ω 9500mA
FAMPI0615-2R2M6R5
2.20uH 0.0540Ω 6500mA
FAMPI0615-3R3M6R0
3.30uH 0.0700Ω 6000mA
FAMPI0615-4R7M5R0
4.70uH 0.1080Ω 5000mA
FAMPI0615-5R6M4R5
5.60uH 0.1380Ω 4500mA
FAMPI0615-6R8M3R5
6.80uH 0.1460Ω 3500mA
FAMPI0615-8R2M3R2
8.20uH 0.1840Ω 3200mA
FAMPI0615-100M2R8
10.00uH 0.2160Ω 2800mA
FAMPI0615-R22M22R0
0.22uH 0.0052Ω 22000mA
FAMPI0615-R33M18R0
0.33uH 0.0076Ω 18000mA
FAMPI0615-R47M16R0
0.47uH 0.0103Ω 16000mA
FAMPI0615-R68M15R0
0.68uH 0.0152Ω 15000mA
FAMPI0618
0.33-10.00uH 0.0058-0.1600Ω 3500-22000mA -
-
FAMPI0618-1R0M14R0
1.00uH 0.0170Ω 14000mA
FAMPI0618-1R2M13R5
1.20uH 0.0240Ω 13500mA
FAMPI0618-1R5M13R0
1.50uH 0.0252Ω 13000mA
FAMPI0618-2R2M11R0
2.20uH 0.0350Ω 11000mA
FAMPI0618-3R3M9R0
3.30uH 0.0460Ω 9000mA
FAMPI0618-4R7M7R0
4.70uH 0.0760Ω 7000mA
FAMPI0618-5R6M6R0
5.60uH 0.0860Ω 6000mA
FAMPI0618-6R8M5R5
6.80uH 0.1040Ω 5500mA
FAMPI0618-8R2M4R5
8.20uH 0.1400Ω 4500mA
FAMPI0618-100M3R5
10.00uH 0.1600Ω 3500mA
FAMPI0618-R33M22R0
0.33uH 0.0058Ω 22000mA
FAMPI0618-R47M18R0
0.47uH 0.0074Ω 18000mA
FAMPI0618-R68M17R0
0.68uH 0.0110Ω 17000mA
FAMPI0618-R82M15R5
0.82uH 0.0140Ω 15500mA
FAMPI0620
0.10-22.0uH 0.0024-0.28Ω 2500-40000mA -
-
FAMPI0620-1R0M14R0
1.00uH 0.0165Ω 14000mA
FAMPI0620-1R5M12R0
1.50uH 0.0245Ω 12000mA
FAMPI0620-2R2M10R0
2.20uH 0.0340Ω 10000mA
FAMPI0620-3R3M8R0
3.30uH 0.0480Ω 8000mA
FAMPI0620-4R7M7R0
4.70uH 0.0595Ω 7000mA
FAMPI0620-5R6M6R0
5.60uH 0.0680Ω 6000mA
FAMPI0620-6R8M5R5
6.80uH 0.0730Ω 5500mA
FAMPI0620-8R2M5R0
8.20uH 0.1160Ω 5000mA
FAMPI0620-100M4R0
10.00uH 0.1540Ω 4000mA
FAMPI0620-220M2R5
22.00uH 0.2800Ω 2500mA
FAMPI0620-R10M40R0
0.10uH 0.0024Ω 40000mA
FAMPI0620-R20M35R0
0.20uH 0.0030Ω 35000mA
FAMPI0620-R33M25R0
0.33uH 0.0050Ω 25000mA
FAMPI0620-R47M20R0
0.47uH 0.0083Ω 20000mA
FAMPI0620-R68M16R0
0.68uH 0.0100Ω 16000mA
FAMPI0624
0.10-22.0uH 0.0017-0.215Ω 3000-70000mA -
-
FAMPI0624-1R0M16R0
1.00uH 0.0135Ω 16000mA
FAMPI0624-1R5M15R0
1.50uH 0.0207Ω 15000mA
FAMPI0624-2R2M14R0
2.20uH 0.0275Ω 14000mA
FAMPI0624-3R3M10R0
3.30uH 0.0378Ω 10000mA
FAMPI0624-4R7M9R0
4.70uH 0.0500Ω 9000mA
FAMPI0624-5R6M8R0
5.60uH 0.0620Ω 8000mA
FAMPI0624-6R8M7R0
6.80uH 0.0705Ω 7000mA
FAMPI0624-8R2M6R0
8.20uH 0.0950Ω 6000mA
FAMPI0624-100M5R0
10.00uH 0.1010Ω 5000mA
FAMPI0624-220M3R0
22.00uH 0.2150Ω 3000mA
FAMPI0624-R10M70R0
0.10uH 0.0017Ω 70000mA
FAMPI0624-R15M45R0
0.15uH 0.0023Ω 45000mA
FAMPI0624-R20M40R0
0.20uH 0.0028Ω 40000mA
FAMPI0624-R22M34R0
0.22uH 0.0032Ω 34000mA
FAMPI0624-R33M30R0
0.33uH 0.0044Ω 30000mA
FAMPI0624-R36M29R0
0.36uH 0.0046Ω 29000mA
FAMPI0624-R47M26R0
0.47uH 0.0055Ω 26000mA
FAMPI0624-R56M24R0
0.56uH 0.0068Ω 24000mA
FAMPI0624-R60M22R0
0.60uH 0.0069Ω 22000mA
FAMPI0624-R68M21R0
0.68uH 0.072Ω 21000mA
FAMPI0624-R82M17R0
0.82uH 0.0095Ω 17000mA
FAMPI0630
0.22-22.0uH 0.0028-0.186Ω 3500-40000mA -
-
FAMPI0630-1R0M22R0
1.00uH 0.0095Ω 22000mA
FAMPI0630-1R5M18R0
1.50uH 0.0150Ω 18000mA
FAMPI0630-1R8M16R0
1.80uH 0.0170Ω 16000mA
FAMPI0630-2R2M14R0
2.20uH 0.0200Ω 14000mA
FAMPI0630-2R5M13R0
2.50uH 0.0220Ω 13000mA
FAMPI0630-3R3M12R5
3.30uH 0.0295Ω 12500mA
FAMPI0630-4R7M10R0
4.70uH 0.0395Ω 10000mA
FAMPI0630-5R6M9R0
5.60uH 0.0475Ω 9000mA
FAMPI0630-6R8M8R0
6.80uH 0.0550Ω 8000mA
FAMPI0630-8R2M7R5
8.20uH 0.0680Ω 7500mA
FAMPI0630-100M6R0
10.00uH 0.0832Ω 6000mA
FAMPI0630-220M3R5
22.00uH 0.1860Ω 3500mA
FAMPI0630-R22M40R0
0.22uH 0.0028Ω 40000mA
FAMPI0630-R33M32R0
0.33uH 0.0039Ω 32000mA
FAMPI0630-R47M26R0
0.47uH 0.0042Ω 26000mA
FAMPI0630-R56M25R5
0.56uH 0.0050Ω 25500mA
FAMPI0630-R68M25R0
0.68uH 0.0055Ω 25000mA
FAMPI0630-R75M24R5
0.75uH 0.0066Ω 24500mA
FAMPI0630-R82M24R0
0.82uH 0.0078Ω 24000mA
FAMPI0650
0.47-22uH 0.0039-0.16Ω 5500-30000mA -
-
FAMPI0650-1R0M20R2
1.00uH 0.0065Ω 20200mA
FAMPI0650-1R2M18R0
1.20uH 0.0075Ω 18000mA
FAMPI0650-1R5M16R5
1.50uH 0.0090Ω 16500mA
FAMPI0650-1R8M15R0
1.80uH 0.0110Ω 15000mA
FAMPI0650-2R2M14R0
2.20uH 0.0116Ω 14000mA
FAMPI0650-3R3M12R0
3.30uH 0.0209Ω 12000mA
FAMPI0650-4R7M10R0
4.70uH 0.0302Ω 10000mA
FAMPI0650-5R6M9R0
5.60uH 0.0490Ω 9000mA
FAMPI0650-6R8M8R5
6.80uH 0.0505Ω 8500mA
FAMPI0650-8R2M8R0
8.20uH 0.0600Ω 8000mA
FAMPI0650-100M7R5
10.00uH 0.0690Ω 7500mA
FAMPI0650-220M5R5
22.00uH 0.1600Ω 5500mA
FAMPI0650-R47M30R0
0.47uH 0.0039Ω 30000mA
FAMPI0650-R56M27R0
0.56uH 0.0042Ω 27000mA
FAMPI0650-R60M25R0
0.60uH 0.0043Ω 25000mA
FAMPI0650-R68M24R0
0.68uH 0.0045Ω 24000mA
FAMPI0650-R82M22R0
0.82uH 0.0049Ω 22000mA
FAMPI1040
0.15-5.60uH 0.00065-0.0193Ω 18000-100000mA -
-
FAMPI1040-1R0M41R0
1.00uH 0.0032Ω 41000mA
FAMPI1040-1R5M38R0
1.50uH 0.0042Ω 38000mA
FAMPI1040-2R2M27R0
2.20uH 0.0070Ω 27000mA
FAMPI1040-3R3M25R5
3.30uH 0.0118Ω 25500mA
FAMPI1040-4R7M19R0
4.70uH 0.0186Ω 19000mA
FAMPI1040-5R6M18R0
5.60uH 0.0193Ω 18000mA
FAMPI1040-R15M100R0
0.15uH 0.00065Ω 100000mA
FAMPI1040-R22M90R0
0.22uH 0.00095Ω 90000mA
FAMPI1040-R36M70R0
0.36uH 0.00125Ω 70000mA
FAMPI1040-R56M45R0
0.56uH 0.0018Ω 45000mA
FAMPI1040-R68M43R0
0.68uH 0.0021Ω 43000mA
FAMPI1260
1.00-220uH 0.0024-0.55Ω 3000-45000mA -
-
FAMPI1260-1R0M45R0
1.00uH 0.0024Ω 45000mA
FAMPI1260-1R2M44R0
1.20uH 0.0045Ω 44000mA
FAMPI1260-1R5M43R0
1.50uH 0.0032Ω 43000mA
FAMPI1260-2R2M34R0
2.20uH 0.0047Ω 34000mA
FAMPI1260-3R3M28R0
3.30uH 0.0071Ω 28000mA
FAMPI1260-4R7M25R0
4.70uH 0.0115Ω 25000mA
FAMPI1260-5R6M22R0
5.60uH 0.0126Ω 22000mA
FAMPI1260-6R8M19R0
6.80uH 0.0138Ω 19000mA
FAMPI1260-8R2M17R0
8.20uH 0.0160Ω 17000mA
FAMPI1260-100M15R5
10.00uH 0.0207Ω 15500mA
FAMPI1260-101M5R0
100.00uH 0.2000Ω 5000mA
FAMPI1260-120M13R5
12.00uH 0.0230Ω 13500mA
FAMPI1260-121M4R5
120.00uH 0.2350Ω 4500mA
FAMPI1260-150M13R0
15.00uH 0.0290Ω 13000mA
FAMPI1260-151M4R0
150.00uH 0.3500Ω 4000mA
FAMPI1260-180M12R0
18.00uH 0.0350Ω 12000mA
FAMPI1260-220M11R0
22.00uH 0.0395Ω 11000mA
FAMPI1260-221M3R0
220.00uH 0.5500Ω 3000mA
FAMPI1260-270M9R0
27.00uH 0.0560Ω 9000mA
FAMPI1260-330M8R0
33.00uH 0.0750Ω 8000mA
FAMPI1260-470M7R0
47.00uH 0.0900Ω 7000mA
FAMPI1260-560M6R5
56.00H 0.1180Ω 6500mA
FAMPI1260-680M6R0
68.00uH 0.1400Ω 6000mA
FAMPI1260-820M5R5
82.00uH 0.1610Ω 5500mA
FAMPI1265
0.15-47.0uH 0.0003-0.090Ω 9500-118000mA -
-
FAMPI1265-1R0M48R0
1.00uH 0.0023Ω 48000mA
FAMPI1265-1R5M45R0
1.50uH 0.0030Ω 45000mA
FAMPI1265-2R2M37R0
2.20uH 0.0042Ω 37000mA
FAMPI1265-3R3M30R0
3.30uH 0.0068Ω 30000mA
FAMPI1265-4R7M28R0
4.70uH 0.0084Ω 28000mA
FAMPI1265-5R6M23R0
5.60uH 0.0100Ω 23000mA
FAMPI1265-6R8M18R0
6.80uH 0.0115Ω 18000mA
FAMPI1265-8R2M16R0
8.20uH 0.0155Ω 16000mA
FAMPI1265-130M13R0
13.00uH 0.0240Ω 13000mA
FAMPI1265-150M12R5
15.00uH 0.0280Ω 12500mA
FAMPI1265-220M12R0
22.00uH 0.0370Ω 12000mA
FAMPI1265-470M9R5
47.00uH 0.0900Ω 9500mA
FAMPI1265-R15M118R0
0.15uH 0.0006Ω 118000mA
FAMPI1265-R22M112R0
0.22uH 0.0006Ω 112000mA
FAMPI1265-R30M72R0
0.30uH 0.0007Ω 72000mA
FAMPI1265-R33M68R0
0.33uH 0.0008Ω 68000mA
FAMPI1265-R36M66R0
0.36uH 0.0009Ω 66000mA
FAMPI1265-R40M64R0
0.40uH 0.0010Ω 64000mA
FAMPI1265-R47M63R0
0.47uH 0.0012Ω 63000mA
FAMPI1265-R50M60R0
0.50uH 0.0003Ω 60000mA
FAMPI1265-R56M58R0
0.56uH 0.0014Ω 58000mA
FAMPI1265-R68M55R0
0.68uH 0.0015Ω 55000mA
FAMPI1265-R82M50R0
0.82uH 0.0019Ω 50000mA
FAMPI1770
1-100uH 0.0014-0.1100Ω 4200-73000mA -
-
FAMPI1770-1R0M-T01
1.00uH 0.0014Ω 73000mA
FAMPI1770-1R0M-T02
1.00uH 0.0013Ω 32000mA
FAMPI1770-1R5M-T01
1.50uH 0.0019Ω 65000mA
FAMPI1770-1R5M-T02
1.50uH 0.0016Ω 31000mA
FAMPI1770-1R8M-T01
1.80uH 0.0021Ω 65000mA
FAMPI1770-2R2M-T01
2.20uH 0.0025Ω 62000mA
FAMPI1770-2R2M-T02
2.20uH 0.0020Ω 28000mA
FAMPI1770-3R3M-T01
3.30uH 0.0039Ω 54000mA
FAMPI1770-3R3M-T02
3.30uH 0.0029Ω 27000mA
FAMPI1770-4R7M-T01
4.70uH 0.0051Ω 41000mA
FAMPI1770-4R7M-T02
4.70uH 0.0076Ω 21000mA
FAMPI1770-5R6M-T01
5.60uH 0.0071Ω 40000mA
FAMPI1770-5R6M-T02
5.60uH 0.0046Ω 21000mA
FAMPI1770-6R8M-T01
6.80uH 0.0088Ω 32000mA
FAMPI1770-6R8M-T02
6.80uH 0.0052Ω 18500mA
FAMPI1770-8R2M-T01
8.20uH 0.0107Ω 25000mA
FAMPI1770-8R2M-T02
8.20uH 0.0081Ω 18000mA
FAMPI1770-100M-T01
10.00uH 0.0120Ω 25000mA
FAMPI1770-100M-T02
10.00uH 0.0138Ω 17000mA
FAMPI1770-101M-T02
100.00uH 0.1100Ω 4000mA
FAMPI1770-101M-T03
100.00uH 0.1400Ω 7000mA
FAMPI1770-150M-T01
15.00uH 0.0199Ω 25000mA
FAMPI1770-150M-T02
15.00uH 0.0144Ω 12000mA
FAMPI1770-220M-T01
22.00uH 0.0265Ω 23000mA
FAMPI1770-220M-T02
22.00uH 0.0210Ω 9500mA
FAMPI1770-330M-T02
33.00uH 0.0370Ω 9000mA
FAMPI1770-330M-T03
33.00uH 0.0380Ω 13000mA
FAMPI1770-470M-T02
47.00uH 0.0427Ω 8600mA
FAMPI1770-470M-T03
47.00uH 0.0580Ω 11000mA
FAMPI1770-560M-T02
56.00uH 0.0578Ω 4200mA
FAMPI1770-680M-T02
68.00uH 0.0757Ω 4500mA
FAMPI1770-680M-T03
68.00uH 0.1000Ω 9000mA
FAMPI1770-820M-T02
82.00uH 0.0917Ω 4500mA
FAMPI1770-820M-T03
82.00uH 0.1100Ω 8000mA

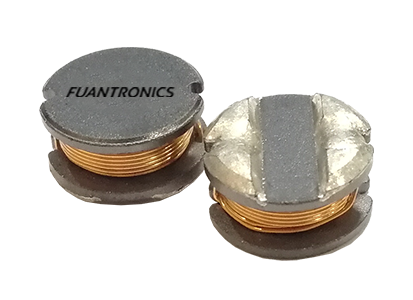

FASDR0301
2.20-330uH 0.1300-16.0000Ω 900-790mA -
-
FASDR0301-2R2M0R79
2.20uH 0.1300Ω 790mA
FASDR0301-3R3M0R75
3.30uH 0.1500Ω 750mA
FASDR0301-4R7M0R65
4.70uH 0.1800Ω 650mA
FASDR0301-100M0R45
10.00uH 0.3900Ω 450mA
FASDR0301-101M0R15
100.00uH 2.8700Ω 150mA
FASDR0301-150M0R3
15.00uH 0.7500Ω 300mA
FASDR0301-220M0R25
22.00uH 0.9200Ω 250mA
FASDR0301-221M0R13
220.00uH 10.0000Ω 130mA
FASDR0301-330M0R20
33.00uH 1.4300Ω 200mA
FASDR0301-331M0R09
330.00uH 16.0000Ω 90mA
FASDR0301-470M0R17
47.00uH 1.6900Ω 170mA
FASDR0301-680M0R16
68.00uH 2.7000Ω 160mA

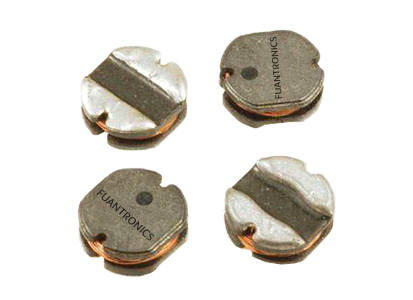

FASDR0302
1.00-680uH 0.0350-20.5000Ω 40-3200mA -
-
FASDR0302-1R0M3R2
1.00uH 0.0350Ω 3200mA
FASDR0302-1R5M2R6
1.50uH 0.0750Ω 2600mA
FASDR0302-2R2M2R35
2.20uH 0.1300Ω 2350mA
FASDR0302-2R7M1R9
2.70uH 0.1400Ω 1900mA
FASDR0302-3R3M1R8
3.30uH 0.1700Ω 1800mA
FASDR0302-4R7M1R4
4.70uH 0.2100Ω 1400mA
FASDR0302-5R6M1R2
5.60uH 0.2200Ω 1200mA
FASDR0302-6R8M1R15
6.80uH 0.2500Ω 1150mA
FASDR0302-100M1R1
10.00uH 0.3200Ω 1100mA
FASDR0302-101K0R25
100.00uH 2.800Ω 250mA
FASDR0302-120M0R85
12.00uH 0.3500Ω 850mA
FASDR0302-150M0R8
15.00uH 0.4200Ω 800mA
FASDR0302-151K0R2
150.00uH 4.2000Ω 200mA
FASDR0302-220M0R65
22.00uH 0.5800Ω 650mA
FASDR0302-221K0R16
220.00uH 6.0000Ω 160mA
FASDR0302-270M0R5
27.00uH 0.6500Ω 500mA
FASDR0302-330K0R45
33.00uH 0.8000Ω 450mA
FASDR0302-331K0R12
330.00uH 9.5000Ω 120mA
FASDR0302-391K0R11
390.00uH 10.5000Ω 110mA
FASDR0302-470K0R4
47.00uH 1.2000Ω 400mA
FASDR0302-471K0R95
470.00uH 11.5000Ω 95mA
FASDR0302-560K0R31
56.00uH 1.6500Ω 310mA
FASDR0302-680K0R29
68.00uH 1.8000Ω 290mA
FASDR0302-681K0R04
680.00uH 20.5000Ω 40mA
FASDR0403
1.00-2200.00uH 0.0300-30.0000Ω 20-3800mA -
-
FASDR0403-1R0M3R8
1.00uH 0.0300Ω 3800mA
FASDR0403-1R5M3R5
1.50uH 0.0360Ω 3500mA
FASDR0403-2R2M2R9
2.20uH 0.0470Ω 2900mA
FASDR0403-2R7M2R5
2.70uH 0.0520Ω 2500mA
FASDR0403-3R3M2R4
3.30uH 0.0580Ω 2400mA
FASDR0403-3R9M1R98
3.90uH 0.0760Ω 1980mA
FASDR0403-4R7M1R9
4.70uH 0.0940Ω 1900mA
FASDR0403-5R6M1R8
5.60uH 0.1000Ω 1800mA
FASDR0403-6R8M1R6
6.80uH 0.1200Ω 1600mA
FASDR0403-8R2M1R26
8.20uH 0.1600Ω 1260mA
FASDR0403-100M1R15
10.00uH 0.1800Ω 1150mA
FASDR0403-101K0R4
100.00uH 1.5200Ω 400mA
FASDR0403-102K0R13
1000.00uH 15.6000Ω 130mA
FASDR0403-120M1R05
12.00uH 0.2100Ω 1050mA
FASDR0403-150M0R92
15.00uH 0.2400Ω 920mA
FASDR0403-151K0R38
150.00uH 2.0000Ω 380mA
FASDR0403-180M0R84
18.00uH 0.3400Ω 840mA
FASDR0403-220M0R76
22.00uH 0.3800Ω 760mA
FASDR0403-221K0R32
220.00uH 3.4000Ω 320mA
FASDR0403-222M0R02
2200.00uH 30.0000Ω 20mA
FASDR0403-270M0R71
27.00uH 0.4100Ω 710mA
FASDR0403-330K0R7
33.00uH 0.5100Ω 700mA
FASDR0403-331K0R28
330.00uH 5.3000Ω 280mA
FASDR0403-390K0R66
39.00uH 0.5600Ω 660mA
FASDR0403-470K0R65
47.00uH 0.8000Ω 650mA
FASDR0403-471K0R2
470.00uH 6.8000Ω 200mA
FASDR0403-560K0R5
56.00uH 0.9400Ω 500mA
FASDR0403-680K0R48
68.00uH 1.1200Ω 480mA
FASDR0403-681K0R16
680.00uH 10.0000Ω 160mA
FASDR0403-820K0R45
82.00uH 1.3500Ω 450mA
FASDR0502
1-1000uH 0.021-15.0000Ω 140-4000mA -
-
FASDR0502-1R0M4R0
1.00uH 0.0210Ω 4000mA
FASDR0502-1R5M4R0
1.50uH 0.0600Ω 4000mA
FASDR0502-1R8M3R7
1.80uH 0.0650Ω 3700mA
FASDR0502-2R2M3R5
2.20uH 0.0700Ω 3500mA
FASDR0502-2R7M3R2
2.70uH 0.0800Ω 3200mA
FASDR0502-3R3M2R7
3.30uH 0.1000Ω 2700mA
FASDR0502-3R9M2R4
3.90uH 0.1200Ω 2400mA
FASDR0502-4R7M2R0
4.70uH 0.1400Ω 2000mA
FASDR0502-5R6M1R8
5.60uH 0.1500Ω 1800mA
FASDR0502-6R8M1R5
6.80uH 0.1600Ω 1500mA
FASDR0502-8R2M1R4
8.20uH 0.1700Ω 1400mA
FASDR0502-100M1R3
10.00uH 0.2000Ω 1300mA
FASDR0502-101K0R4
100.00uH 1.4000Ω 400mA
FASDR0502-102K0R14
1000.00uH 15.0000Ω 140mA
FASDR0502-120M1R1
12.00uH 0.2500Ω 1100mA
FASDR0502-121K0R35
120.00uH 1.7500Ω 350mA
FASDR0502-150M1R05
15.00uH 0.2500Ω 1050mA
FASDR0502-151K0R25
150.00uH 2.0000Ω 250mA
FASDR0502-180M1R0
18.00uH 0.3000Ω 1000mA
FASDR0502-181K0R25
180.00uH 2.6000Ω 250mA
FASDR0502-220M0R9
22.00uH 0.3500Ω 900mA
FASDR0502-221K0R2
220.00uH 3.00Ω 200mA
FASDR0502-270M0R85
27.00uH 0.4000Ω 850mA
FASDR0502-271K0R18
270.00uH 3.7000Ω 180mA
FASDR0502-330K0R75
33.00uH 0.5000Ω 750mA
FASDR0502-331K0R17
330.00uH 4.3000Ω 170mA
FASDR0502-390K0R7
39.00uH 0.5500Ω 700mA
FASDR0502-391K0R16
390.00uH 6.0000Ω 160mA
FASDR0502-470K0R6
47.00uH 0.6500Ω 600mA
FASDR0502-471K0R15
470.00uH 6.7000Ω 150mA
FASDR0502-560K0R55
56.00uH 0.7600Ω 550mA
FASDR0502-680K0R5
68.00uH 0.9500Ω 500mA
FASDR0502-820K0R45
82.00uH 1.2000Ω 450mA
FASDR0503
1-1000uH 0.03-9.87Ω 100-4500mA -
-
FASDR0503-1R0M4R5
1.00uH 0.0300Ω 4500mA
FASDR0503-1R5M4R2
1.50uH 0.0400Ω 4200mA
FASDR0503-1R8M3R49
1.80uH 0.0500Ω 3490mA
FASDR0503-2R2M3R12
2.20uH 0.0600Ω 3120mA
FASDR0503-2R7M2R67
2.70uH 0.0700Ω 2670mA
FASDR0503-3R3M2R51
3.30uH 0.0800Ω 2510mA
FASDR0503-3R9M2R35
3.90uH 0.0900Ω 2350mA
FASDR0503-4R7M2R14
4.70uH 0.1400Ω 2140mA
FASDR0503-5R6M1R93
5.60uH 0.1500Ω 1930mA
FASDR0503-6R8M1R82
6.80uH 0.1600Ω 1820mA
FASDR0503-8R2M1R51
8.20uH 0.1700Ω 1510mA
FASDR0503-100M1R3
10.00uH 0.1800Ω 1300mA
FASDR0503-101K0R47
100.00uH 1.3000Ω 470mA
FASDR0503-102K0R1
1000.00uH 9.8700Ω 100mA
FASDR0503-120M1R27
12.00uH 0.2000Ω 1270mA
FASDR0503-121K0R42
120.00uH 1.3800Ω 420mA
FASDR0503-150M1R23
15.00uH 0.2200Ω 1230mA
FASDR0503-151K0R35
150.00uH 1.8100Ω 350mA
FASDR0503-180M1R17
18.00uH 0.2500Ω 1170mA
FASDR0503-181K0R3
180.00uH 1.9500Ω 300mA
FASDR0503-220M1R06
22.00uH 0.3500Ω 1060mA
FASDR0503-221K0R28
220.00uH 2.1000Ω 280mA
FASDR0503-270M0R85
27.00uH 0.4500Ω 850mA
FASDR0503-271K0R23
270.00uH 2.4200Ω 230mA
FASDR0503-330K0R8
33.00uH 0.5500Ω 800mA
FASDR0503-331K0R19
330.00uH 3.8200Ω 190mA
FASDR0503-390K0R78
39.00uH 0.7000Ω 780mA
FASDR0503-391K0R16
390.00uH 4.6800Ω 160mA
FASDR0503-470K0R75
47.00uH 0.7200Ω 750mA
FASDR0503-471K0R15
470.00uH 5.1000Ω 150mA
FASDR0503-560K0R56
56.00uH 0.8400Ω 560mA
FASDR0503-561K0R14
560.00uH 6.0000Ω 140mA
FASDR0503-680K0R52
68.00uH 0.9000Ω 520mA
FASDR0503-681K0R13
680.00uH 7.6000Ω 130mA
FASDR0503-820K0R5
82.00uH 0.9500Ω 500mA
FASDR0503-821K0R11
820.00uH 9.1200Ω 110mA
FASDR0504
1-2200uH 0.028-15Ω 100-4700mA -
-
FASDR0504-1R0M4R7
1.00uH 0.0250Ω 4700mA
FASDR0504-1R4M4R4
1.40uH 0.0300Ω 4400mA
FASDR0504-1R8M4R0
1.80uH 0.0350Ω 4000mA
FASDR0504-2R2M3R2
2.20uH 0.0400Ω 3200mA
FASDR0504-2R7M3R0
2.70uH 0.0450Ω 3000mA
FASDR0504-3R3M2R8
3.30uH 0.0480Ω 2800mA
FASDR0504-3R9M2R5
3.90uH 0.0550Ω 2500mA
FASDR0504-4R7M2R4
4.70uH 0.0600Ω 2400mA
FASDR0504-6R8M2R3
6.80uH 0.0650Ω 2300mA
FASDR0504-100M1R44
10.00uH 0.0850Ω 1440mA
FASDR0504-101K0R52
100.00uH 0.7000Ω 520mA
FASDR0504-102K0R15
1000.00uH 7.0000Ω 150mA
FASDR0504-120M1R4
120.00uH 0.1000Ω 1400mA
FASDR0504-121K0R48
120.00uH 0.7700Ω 480mA
FASDR0504-150M1R3
15.00uH 0.1200Ω 1300mA
FASDR0504-151K0R46
150.00uH 1.2000Ω 460mA
FASDR0504-152K0R12
1500.00uH 10.0000Ω 120mA
FASDR0504-180M1R23
18.00uH 0.1500Ω 1230mA
FASDR0504-182K0R11
1800.00uH 12.0000Ω 110mA
FASDR0504-220M1R11
22.00uH 0.17000Ω 1110mA
FASDR0504-221K0R42
220.00uH 1.5700Ω 420mA
FASDR0504-222K0R1
2200.00uH 15.0000Ω 100mA
FASDR0504-270M0R97
27.00uH 0.2000Ω 970mA
FASDR0504-330K0R88
33.00uH 0.2300Ω 880mA
FASDR0504-331K0R38
330.00uH 1.8000Ω 380mA
FASDR0504-470K0R72
47.00uH 0.3500Ω 720mA
FASDR0504-471K0R25
470.00uH 3.0000Ω 250mA
FASDR0504-561K0R22
560.00uH 3.5000Ω 220mA
FASDR0504-680K0R61
68.00uH 0.4600Ω 610mA
FASDR0504-681K0R3
680.00uH 4.8000Ω 300mA
FASDR0504-681K0R19
680.00uH 5.1000Ω 190mA
FASDR0504-820K0R58
82.00uH 0.6000Ω 580mA
FASDR0504-821K0R18
820.00uH 5.5000Ω 180mA
FASDR0703
1.00-1000uH 0.0180-4.7600Ω 210-1640mA -
-
FASDR0703-1R0M1R64
1.00uH 0.0180Ω 1640mA
FASDR0703-1R5M1R6
1.50uH 0.0200Ω 1600mA
FASDR0703-2R2M1R6
2.20uH 0.0230Ω 1600mA
FASDR0703-3R3M1R59
3.30uH 0.0250Ω 1590mA
FASDR0703-4R7M1R54
4.70uH 0.0390Ω 1540mA
FASDR0703-6R8M1R49
6.80uH 0.0400Ω 1490mA
FASDR0703-8R2M1R46
8.20uH 0.0800Ω 1460mA
FASDR0703-100M1R44
10.00uH 0.0800Ω 1440mA
FASDR0703-101K0R51
100.00uH 0.4800Ω 510mA
FASDR0703-102K0R2
1000.00uH 4.7600Ω 200mA
FASDR0703-120M1R39
12.00uH 0.0900Ω 1390mA
FASDR0703-121K0R49
120.00uH 0.5400Ω 490mA
FASDR0703-150M1R24
15.00uH 0.1100Ω 1240mA
FASDR0703-151K0R4
150.00uH 0.7600Ω 400mA
FASDR0703-180M1R12
18.00uH 0.1100Ω 1120mA
FASDR0703-181K0R36
180.00uH 1.0200Ω 360mA
FASDR0703-220M1R07
22.00uH 0.1300Ω 1070mA
FASDR0703-221K0R31
220.00uH 1.2000Ω 310mA
FASDR0703-270M0R94
27.00uH 0.1500Ω 940mA
FASDR0703-271K0R29
270.00uH 1.3100Ω 290mA
FASDR0703-330K0R85
33.00uH 0.1700Ω 850mA
FASDR0703-331K0R28
330.00uH 1.5000Ω 280mA
FASDR0703-390K0R74
39.00uH 0.2200Ω 740mA
FASDR0703-391K0R27
390.00uH 1.7000Ω 270mA
FASDR0703-470K0R68
47.00uH 0.2500Ω 680mA
FASDR0703-471K0R26
470.00uH 2.1000Ω 260mA
FASDR0703-560K0R64
56.00uH 0.2800Ω 640mA
FASDR0703-561K0R25
560.00uH 2.6600Ω 250mA
FASDR0703-680K0R59
68.00uH 0.3300Ω 590mA
FASDR0703-681K0R23
680.00uH 3.0000Ω 230mA
FASDR0703-820K0R54
82.00uH 0.4100Ω 540mA
FASDR0703-821K0R21
820.00uH 3.6300Ω 210mA
FASDR0705
1.00-2200uH 0.0100-11.0000Ω 110-5500mA -
-
FASDR0705-1R0M5R5
1.00uH 0.0150Ω 5500mA
FASDR0705-1R5M5R0
1.50uH 0.0180Ω 5000mA
FASDR0705-2R2M4R5
2.20uH 0.0220Ω 4500mA
FASDR0705-3R3M4R0
3.30uH 0.0300Ω 4000mA
FASDR0705-4R7M3R6
4.70uH 0.0350Ω 3600mA
FASDR0705-5R6M3R3
5.60uH 0.0380Ω 3300mA
FASDR0705-6R8M3R1
6.80uH 0.0400Ω 3100mA
FASDR0705-8R2M2R7
8.20uH 0.0500Ω 2700mA
FASDR0705-100M2R3
10.00uH 0.0700Ω 2300mA
FASDR0705-101K
100.00uH 0.4300Ω 720mA
FASDR0705-102K0R2
1000.00uH 3.5000Ω 200mA
FASDR0705-120M2R0
12.00uH 0.0800Ω 2000mA
FASDR0705-121K0R66
120.00uH 0.4700Ω 660mA
FASDR0705-150M1R8
15.00uH 0.0900Ω 1800mA
FASDR0705-151K0R58
150.00uH 0.6400Ω 580mA
FASDR0705-152K0R23
1.50uH 7.5000Ω 230mA
FASDR0705-180M1R6
18.00uH 0.1000Ω 1600mA
FASDR0705-181K0R51
180.00uH 0.7100Ω 510mA
FASDR0705-220M1R5
22.00uH 0.1100Ω 1500mA
FASDR0705-221K
220.00uH 0.9600Ω 490mA
FASDR0705-222K0R15
2200.00uH 11.0000Ω 150mA
FASDR0705-270M1R3
27.00uH 0.1200Ω 1300mA
FASDR0705-271K0R45
270.00uH 1.1000Ω 450mA
FASDR0705-330K1R2
33.00uH 0.1300Ω 1200mA
FASDR0705-331K0R4
330.00uH 1.2600Ω 400mA
FASDR0705-390K1R1
39.00uH 0.1600Ω 1100mA
FASDR0705-470K
47.00uH 0.1800Ω 1100mA
FASDR0705-471K0R33
470.00uH 1.8900Ω 330mA
FASDR0705-560K0R94
56.00uH 0.2400Ω 940mA
FASDR0705-561K0R32
560.00uH 2.0000Ω 320mA
FASDR0705-680K0R85
68.00uH 0.2800Ω 850mA
FASDR0705-681K0R26
680.00uH 2.5600Ω 260mA
FASDR0705-820K0R78
82.00uH 0.3700Ω 780mA
FASDR0705-821K0R22
820.00uH 3.2500Ω 220mA
FASDR1004
1.00-560uH 0.0120-1.9000Ω 320-8700mA -
-
FASDR1004-1R0M8R7
1.00uH 0.0120Ω 8700mA
FASDR1004-1R5M7R48
1.50uH 0.0160Ω 7480mA
FASDR1004-1R8M6R8
1.80uH 0.0180Ω 6800mA
FASDR1004-2R2M5R4
2.20uH 0.0200Ω 5400mA
FASDR1004-2R7M3R2
2.70uH 0.0240Ω 3200mA
FASDR1004-3R3M2R85
3.30uH 0.0280Ω 2850mA
FASDR1004-3R9M2R8
3.90uH 0.0300Ω 2800mA
FASDR1004-4R7M2R75
4.70uH 0.0380Ω 2750mA
FASDR1004-5R6M2R7
5.60uH 0.0400Ω 2700mA
FASDR1004-6R8M2R65
6.80uH 0.0420Ω 2650mA
FASDR1004-8R2M2R6
8.20uH 0.0480Ω 2600mA
FASDR1004-100M2R38
10.00uH 0.0530Ω 2380mA
FASDR1004-101K0R74
100.00uH 0.3500Ω 740mA
FASDR1004-120M2R13
12.00uH 0.0610Ω 2130mA
FASDR1004-121K0R69
120.00uH 0.4000Ω 690mA
FASDR1004-150M1R87
15.00uH 0.0700Ω 1870mA
FASDR1004-151K0R61
150.00uH 0.5500Ω 610mA
FASDR1004-180M1R73
18.00uH 0.0810Ω 1730mA
FASDR1004-181K0R56
180.00uH 0.6200Ω 560mA
FASDR1004-220M1R6
22.00uH 0.0900Ω 1600mA
FASDR1004-221K0R53
220.00uH 0.7200Ω 530mA
FASDR1004-270M1R44
27.00uH 0.1000Ω 1440mA
FASDR1004-271K0R45
270.00uH 0.9500Ω 450mA
FASDR1004-330K1R26
33.00uH 0.1200Ω 1260mA
FASDR1004-331K0R42
330.00uH 1.1000Ω 420mA
FASDR1004-390K1R2
39.00uH 0.1500Ω 1200mA
FASDR1004-391K0R38
390.00uH 1.2500Ω 380mA
FASDR1004-470K1R1
47.00uH 0.1700Ω 1100mA
FASDR1004-471K0R35
470.00uH 1.5300Ω 350mA
FASDR1004-560K1R01
56.00uH 0.2000Ω 1010mA
FASDR1004-561K0R32
560.00uH 1.9000Ω 320mA
FASDR1004-680K0R91
68.00uH 0.2200Ω 910mA
FASDR1004-820K0R85
82.00uH 0.2500Ω 850mA
FASDR1005
10.00-820.00uH 0.0600-2.5500Ω 240-2600mA -
-
FASDR1005-100M2R6
10.00uH 0.0600Ω 2600mA
FASDR1005-101K0R97
100.00uH 0.3500Ω 970mA
FASDR1005-120M2R45
12.00uH 0.0700Ω 2450mA
FASDR1005-121K0R89
120.00uH 0.4000Ω 890mA
FASDR1005-150M2R27
15.00uH 0.0800Ω 2270mA
FASDR1005-151K0R78
150.00uH 0.4700Ω 780mA
FASDR1005-180M2R15
18.00uH 0.0900Ω 2150mA
FASDR1005-181K0R72
180.00uH 0.6300Ω 720mA
FASDR1005-220M
22.00uH 0.1000Ω 1950mA
FASDR1005-221K
220.00uH 0.7300Ω 660mA
