Bobbin Filter Models: 16 in total, please see the table below.

Series Spec. Material Row pitch Pin Pitch Spec. Sample Application
EE
More - - - -
-
EE-0802
Horizontal(3+3PIN) PF2A5-151J 2.50mm 7.00mm
EE-0803
Horizontal(3+3PIN) T378J 2.50mm 6.70mm
EE-0804
Horizontal(2+2PIN) PF2A5-151J 5.00mm 6.80mm
EE-1001-1
Horizontal(4+4PIN) PF2A5-151J 2.50mm 10.50mm
EE-1002
Horizontal(2+2PIN) PF2A5-151J 5.00mm 7.00mm
EE-1202
Horizontal(2+2PIN) T378J 6.00mm 12.00mm
EE-1301-1
Vertical(4+4PIN) PF2A5-151J 2.50mm 10.00mm
EE-1302
Horizontal(5+2PIN) PF2A5-151J 2.70/9.00mm 16.00mm
EE-1303
Horizontal(5+5PIN) T378J 2.50mm 10.00mm
EE-1304
Horizontal(4+2+2PIN) T378J 3.0/3.5/4.0mm 7.50/10.00mm
EE-1305
Horizontal(2+2PIN) T378J 10.00mm 10.00mm
EE-1309
Horizontal(4+4PIN) T378J 3.80mm 10.00mm
EE-1310
Vertical(2+2+3PIN) T378J 2.80/4.00mm 10.65/17.60mm
EE-1310-1
Vertical(2+2+3PIN) T378J 2.8/3.3/4.0mm 10.65/17.85mm
EE-1401
Horizontal(2+2PIN) T378J 6.00mm 12.00mm
EE-1501
Horizontal(2+2PIN) T378J 6.00mm 12.00mm
EE-1502
Horizontal(2+2PIN) T378J 6.00mm 12.00mm
EE-1604
Horizontal(3+3PIN) T375HF 5.00mm 13.00mm
EE-1608-1
Horizontal(5+5PIN) T375HF 3.25mm 15.50mm
EE-1608-2
Horizontal(5+5PIN) T378J 3.30mm 15.50mm
EE-1608-3
Horizontal(5+5PIN) T378J 3.20mm 15.50mm
EE-1608-4
Horizontal(5+5PIN) T378J 3.25mm 17.50mm
EE-1610
Vertical(5+3PIN) T378J 3.00/5.50mm 18.00mm
EE-1611
Horizontal(6+2PIN) T378J 3.00/11.00mm 18.20mm
EE-1618
Vertical(2+2+5PIN) PF2A5-151J 3.00/5.50mm 13.80/21.00mm
EE-1618-1
Vertical(2+2+4PIN) PF2A5-151J 2.90/3.30/5.40mm 12.00/20.00mm
EE-1618-2
Vertical(2+4PIN) PF2A5-151J 3.00/3.30/5.40mm 20.20mm
EE-1618-4
Vertical(2+5PIN) T378J 3.00/3.50mm 20.00mm
EE-1618-5
Vertical(2+5PIN) T378J 3.00/4.50mm 19.80mm
EE-1618-6
Vertical(2+5PIN) T378J 3.00/6.00mm 21.00mm
EE-1619-2
Vertical(4+5PIN) T399J 3.25/6.50mm 19.50mm
EE-1901
Horizontal(5+5PIN) PM9820 3.12mm 12.50mm
EE-1901-1
Horizontal(5+5PIN) PF2A5-151J 3.08mm 12.50mm
EE-1901-2
Horizontal(5+5PIN) PF2A5-151J 3.00mm 12.50mm
EE-1903
Horizontal(2+5PIN) T378J 3.00mm 18.30mm
EE-1911
Horizontal(2+5PIN) PM9820 3.50/14.00mm 13.00mm
EE-1912
Horizontal(4+5PIN) T378J 3.00/4.00mm 18.75mm
EE-2502
Horizontal(4+4PIN) PF2A5-151J 4.00mm 15.00mm
EE-2504-1
Horizontal(2+2PIN) PF2A5-151J 14.00mm 15.00mm
EE-2507
Horizontal(4+4PIN) PBT 5.00/7.90mm 14.80mm
EE-3006
Horizontal(6+6PIN) T378J 5.00mm 25.00mm
EE-3201
Horizontal(6+6PIN) FR530 5.10mm 25.40mm
EE-3201-1
Horizontal(6+6PIN) FR530 5.10mm 25.40mm
EE-3202
Horizontal(7+7PIN) T378J 5.00mm 25.00mm
EE-4005
Horizontal(7+7PIN) T378J 5.00mm 26.00mm
EE-4201
Vertical(9+9PIN) T378J 5.00mm 27.80mm
EE-4202
Horizontal(8+8PIN) T378J 5.00mm 35.00mm
EE-4202-1
Horizontal(8+8PIN) T378J 5.00mm 35.00mm
EE-4203
Horizontal(8+8PIN) T378J 5.00mm 35.00mm
EE-4206
Vertical(9+9PIN) FR530 5.00mm 27.20mm
EE-4206-1
Vertical(4+4PIN) FR530 5.00/20.00mm 27.20mm
EE-4209-1
Vertical(6+6PIN) T375HF 5.00mm 32.00mm
EE-5501
Horizontal(10+10PIN) PBT 5.00/7.00mm 45.00mm
EE-5502
Vertical(12+12PIN) PM9820 5.00mm 30.00mm
EE-5503
NO PIN PA66 - -
EE-5504
Vertical(4+4PIN) PA66 8.60/13.00mm 32.50mm
EE-5507
Horizontal(11+11PIN) T378J 5.00mm 40.00mm
EE-6502
Vertical(6+6PIN) PA66 6.70/7.20/7.50mm 35.00mm
EE-6502-1
Vertical(6+6PIN) PA66 6.70/7.20/7.50mm 38.40mm
EE-6504
NO PIN FR530 - -
EE-7001
NO PIN PA66 - -
EE-8001
NO PIN PA66 - -
EE-8501
Vertical(10+10PIN) PA66 5.50mm 46.70mm
EE-8502
Vertical(9+9PIN) PA66 6.20mm 48.00mm
EE-110
NO PIN PA66 - -
EE-130
NO PIN PA66 - -
EI
More - - - -
-
EI-1001
vertical(4+4PIN) PF2A5-151J 2.50mm 12.50mm
EI-1002
vertical(4+4PIN) PF2A5-151J 2.50mm 8.00mm
EI-1003
vertical(4+4PIN) PF2A5-151J 2.50mm 8.00mm
EI-1305
vertical(5+5PIN) T378J 2.50mm 12.50mm
EI-1306
vertical(5+5PIN) T375HF 2.50mm 8.60mm
EI-1308
vertical(2+2+5PIN) T378J 2.50/3.30/5.00mm 16.50mm
EI-1404
vertical(3+3PIN) T378J 3.00mm 9.00mm
EI-1405
vertical(4+4PIN) T378J 2.50mm 10.00mm
EI-1601
vertical(5+5PIN) T378J 3.25mm 10.50mm
EI-1604-1
vertical(5+5PIN) T378J 3.20mm 10.60mm
EI-1606
vertical(5+5PIN) PF2A5-151J 3.00mm 14.00mm
EI-1606-1
vertical(4+4PIN) T378J 4.00mm 14.00mm -
EI-1616
vertical(4+6PIN) T378J 2.70/3.50mm 12.40mm
EI-1616-2
vertical(4+6PIN) PF2A5-151J 2.70/3.50mm 12.00mm
EI-1617
vertical(3+3PIN) T378J 3.00mm 9.00mm
EI-1619
vertical(2+4PIN) T378J 3.30/6.70/13.30mm 8.90mm
EI-1909
vertical(5+5PIN) T378J 4.00mm 10.20mm
EI-1917
Horizontal(2+0PIN) FR50 5.00mm -
EI-2006
Horizontal(4+4PIN) PBT 5.00mm 15.00mm
EI-2010
Horizontal(4+4PIN) PBT 5.00mm 15.00mm
EI-2202
vertical(5+5PIN) T378J 4.00mm 10.00mm
EI-2202-2
vertical(5+5PIN) T378J 4.00mm 10.00mm
EI-2402
vertical(3+5PIN) PF2A5-151J 3.75/4.00mm 29.10mm
EI-2503
vertical(5+5PIN) T385J 5.00mm 15.20mm
EI-2813
vertical(5+5PIN) T378J 5.00mm 17.80mm
EI-2813-1
vertical(5+5PIN) T378J 5.00mm 17.80mm
EI-2813-2
vertical(5+5PIN) PF2A5-151J 5.00mm 17.50mm
EI-2816
Horizontal(5+5PIN) T378J 5.00mm 20.00mm
EI-3001
vertical(6+6PIN) T378J 5.00mm 20.00mm
EI-3005
Horizontal(5+5PIN) PBT 5.00mm 20.00mm
EI-3006
vertical(5+5PIN) T378J 5.00mm 17.50mm
EI-3008
Horizontal(5+5PIN) PBT 5.00mm 20.00mm
EI-3010
Horizontal(5+5PIN) PBT 5.00mm 20.00mm
EI-3012
Horizontal(5+5PIN) PBT 5.00mm 20.00mm
EI-3013
Horizontal(4+4PIN) PBT 5.04mm 20.00mm
EI-3015
horizontal(5+5PIN) PBT 5.00mm 20.00mm
EI-3018
horizontal(5+5PIN) PBT 5.00mm 20.00mm
EI-3023
horizontal(5+5PIN) PBT 5.00mm 20.00mm
EI-3301
vertical(6+6PIN) T378J 5.00mm 23.00mm
EI-3301-1
vertical(6+6PIN) T378J 5.00mm 23.00mm
EI-3505
vertical(6+6PIN) T378J 5.00mm 20.00mm
EI-3507
horizontal(4+4PIN) FR530 6.20mm 30.48mm
EI-3513
horizontal(4+4PIN) FR530 6.20mm 30.48mm
EI-3813
horizontal(5+5PIN) PBT 5.00mm 25.00mm
EI-4001
vertical(6+6PIN) T378J 5.00mm 22.50mm
EI-4116
horizontal(4+4PIN) FR530 6.00/9.00mm 32.51mm
EI-4214
horizontal(7+7PIN) PBT 2.50/5.00mm 25.00mm
EI-4820
horizontal(4+4PIN) FR530 7.50/10.00mm 35.80mm
EI-5717
horizontal(4+4PIN) FR530 7.50/10.00mm 40.64mm
EEL
More - - - -
-
EEL-1903
Vertical(4+6PIN) T378J 12.10mm 2.70/3.50mm
EEL-1907
Horizontal(5+5PIN) T378J 32.50mm 4.50/5.00mm
EEL-2203-1
Vertical(5+5PIN) T378J 10.20mm 4.00mm
EEL-2502-1
Horizontal(7+7PIN) T378J 27.00mm 4.00mm
EF
More - - - -
-
EF-1201-2
Horizontal(3+3PIN) T378J 10.30mm 5.05mm
EF-1201-3
Horizontal(3+3PIN) T378J 10.30mm 5.05mm
EF-1202
Horizontal(5+5PIN) T378J 10.20mm 2.50mm
EF-1203
Horizontal(5+5PIN) T378J 10.20mm 2.50mm
EF-1205
Horizontal(4+4PIN) T378J 10.16mm 3.80mm
EF-1206
Horizontal(4+5PIN) T378J 15.50mm 2.70/3.50mm
EF-1601-1
Horizontal(4+4PIN) T378J 14.50mm 3.50mm
EF-1602
Vertical(3+3PIN) FR530 7.50mm 3.80mm
EF-1602-1
Vertical(3+3PIN) FR530 7.50mm 3.80mm
EF-1602-2
Vertical(3+3PIN) FR530 7.50mm 3.80mm
EF-1603
Horizontal(7+7PIN) T378J 15.30mm 2.54mm
EF-1604
Horizontal(4+4PIN) PA66 15.40mm 3.80mm
EF-1605
Vertical(4+4PIN) T378J 7.50mm 4.00mm
EF-1607
Vertical(4+5PIN) T378J 17.50mm 3.50/3.75mm
EF-1608
Horizontal(3+3PIN) T378J 11.25mm 3.75mm
EF-1609-1
Horizontal(4+4PIN) T378J 13.50mm 3.87mm
EF-1610
Horizontal(4+4PIN) T375HF 17.80mm 3.80/5.10mm
EF-1611
Horizontal(4+5PIN) T378J 17.50mm 3.50/4.00/5.00mm
EF-1613
Horizontal(6+6PIN) PF2A5-151J 19.00mm 2.70mm
EF-1614
Horizontal(5+5PIN) PF2A5-151J 17.50mm 3.20mm
EF-2001
Horizontal(4+4PIN) T378J 15.00mm 5.00mm
EF-2001-1
Horizontal(4+4PIN) PF2A5-151J 15.00mm 5.00mm
EF-2002
Horizontal(5+5PIN) PM9820 15.20mm 3.80mm
EF-2003
Vertical(5+5PIN) PM9820 10.00mm 3.70mm
EF-2004-1
Vertical(3+3PIN) PM9820 9.80mm 5.00mm
EF-2006
Horizontal(5+5PIN) T385J 15.40mm 3.81mm
EF-2007
Horizontal(5+5PIN) PM9820 15.00mm 3.80mm
EF-2008
Horizontal(4+5PIN) PF2A5-151J 22.50mm 4.00mm
EF-2017
Horizontal(4+4PIN) PF2A5-151J 29.42mm 4.00/5.00mm
EF-2025-1
Horizontal(6+8PIN) PM9820 20.16mm 2.52/5.12mm -
EF-2026
Horizontal(4+5PIN) PM9820 21.00mm 4.00/8.00mm
EF-2501
Horizontal(4+4PIN) T378J 20.00mm 5.00mm
EF-2502
Horizontal(5+5PIN) T378J 20.00mm 4.00mm
EF-2504
Horizontal(5+5PIN) T378J 20.00mm 5.00mm
EF-2505
Horizontal(5+5PIN) T378J 20.30mm 5.00mm
EF-2505-1
Horizontal(5+5PIN) T378J 20.30mm 5.00mm
EF-2508
Horizontal(4+4PIN) FR530 20.00mm 5.00mm
EF-2508-1
Horizontal(4+4PIN) FR530 20.00mm 5.00mm
EF-2508-2
Horizontal(4+4PIN) FR530 20.00mm 5.00mm
EF-2509
Horizontal(5+5PIN) T375HF 20.00mm 5.00mm
EF-2511
Vertical(4+4PIN) FR530 17.50mm 5.00mm
EF-2513
Horizontal(5+5PIN) T378J 26.80mm 5.00mm
EF-2514
Vertical(5+5PIN) T378J 12.70mm 5.00mm
EF-2515
Horizontal(4+4PIN) T378J 24.00mm 5.00/7.50mm
EF-2518
Horizontal(7+8PIN) T378J 25.80mm 2.50/3.80mm
EF-2519
Horizontal(4+5PIN) PM9820 21.60mm 5.00mm
EF-2527
Horizontal(5+5PIN) T378J 20.00mm 5.00mm
EF-2549
Vertical(5+5PIN) PA66 12.50mm 5.00mm
EF-3201
Horizontal(7+7PIN) PA66 27.50mm 4.50mm
EF-3202
Vertical(7+7PIN) T378J 20.00mm 5.00mm
EFD
More - - - -
-
EP
More - - - -
-
EP-1301
horizontal(5+5PIN) T378J 10.00mm 2.50mm
EP-1301-1
horizontal(5+5PIN) T378J 10.00mm 2.50mm
EP-2001
horizontal(5+5PIN) T378J 17.50mm 5.00mm
EPC
More - - - -
-
EPC-1301
horizontal(5+5PIN) PM9820 10.50mm 2.50mm
EPC-1301-1
horizontal(5+5PIN) PM9820 10.50mm 2.50mm
EPC-1303
horizontal(2+2+4PIN) PM9820 11.00/18.00mm 3.00/3.70mm
EPC-1304
horizontal(2+5PIN) PM9820 15.80mm 2.50/8.20mm
EPC-1701
horizontal(4+6PIN) T378J 15.00mm 2.50/3.70mm
EPC-1702
horizontal(5+5PIN) T378J 13.00mm 3.00mm
EPC-1703
horizontal(5+5PIN) T378J 13.00mm 3.00mm
EPC-1704
horizontal(2+5PIN) PF2A5-151J 18.50mm 3.00/11.50mm
EPC-1902
horizontal(6+6PIN) T375HF 21.50mm 2.50mm
EPC-3901
horizontal(7+7PIN) T378J 30.00mm 5.00mm
EPC-4601
horizontal(9+9PIN) T378J 35.00mm 5.00mm
EPC-4602
horizontal(9+9PIN) T378J 35.00mm 5.00mm
EPC-5402
horizontal(11+11PIN) T378J 42.50mm 5.00mm
ER
More - - - -
-
ER-2001
horizontal(4+5PIN) T378J 17.00mm 4.00/8.00mm
ER-2010
vertical(5+5PIN) T378J 16.50mm 2.50mm
ER-2510
vertical(5+5PIN) PF2A5-151J 14.00mm 3.50mm
ER-2802
horizontal(6+6PIN) T378J 30.00mm 5.00mm
ER-2803
vertical(6+6PIN) T378J 17.50mm 5.00mm
ER-2804
vertical(6+6PIN) T378J 17.50mm 5.00mm
ER-2805
horizontal(6+6PIN) T378J 25.00mm 5.00mm
ER-2809
vertical(5+5PIN) T378J 17.50mm 5.00mm
ER-2814
vertical(6+6PIN) T378J 17.50mm 5.00mm
ER-2814-1
vertical(5+5PIN) T378J 17.80mm 5.00mm
ER-3401
horizontal(6+6PIN) T378J 28.00mm 5.50mm
ER-3501
horizontal(8+8PIN) T378J 35.00mm 5.00mm
ER-3502
horizontal(7+7PIN) T378J 34.00mm 5.00mm
ER-3507
vertical(7+7PIN) PF2A5-151J 22.60mm 5.00mm
ER-3509
vertical(6+6PIN) T378J 30.30mm 5.00/7.50mm
ER-3509-1
vertical(6+6PIN) T378J 30.30mm 5.00/7.50mm
ER-3511
vertical(6+6PIN) T378J 22.80mm 5.00mm
ER-3512
horizontal(7+7PIN) T378J 37.00mm 5.00mm
ER-3904
horizontal(8+8PIN) T378J 35.30mm 5.00mm
ER-4001-1
horizontal(8+8PIN) T378J 35.00mm 5.00mm
ER-4001-2
horizontal(8+8PIN) T378J 35.00mm 5.00mm
ER-4001-3
horizontal(8+8PIN) T378J 35.00mm 5.00mm
ER-4201
vertical(9+9PIN) PF2A5-151J 25.00mm 5.00mm
ER-4202
vertical(10+10PIN) T378J 30.00mm 4.00mm
ER-4203-1
vertical(7+7PIN) T378J 24.50mm 5.00mm
ER-4204
horizontal(8+8PIN) T378J 35.00mm 5.00mm
ER-4205
horizontal(8+8PIN) T378J 35.50mm 5.00mm
ER-4205-1
horizontal(8+8PIN) T378J 35.00mm 5.00mm
ER-4206
vertical(6+6PIN) T385J 30.00mm 5.00/7.50mm
ER-4208
vertical(7+7PIN) T378J 30.00mm 5.00mm
ER-4209
horizontal(8+8PIN) T378J 35.00mm 5.00mm
ER-4902
horizontal(10+10PIN) T378J 46.00mm 5.00mm
ER-6301
horizontal(NO PIN) FR530 - -
ETD
More - - - -
-
ETD-1901
vertical(2+5PIN) FR530 10.80mm 1.59/3.1/4.13/5.4mm
ETD-2901
horizontal(7+7PIN) PM9820 25.50mm 5.00mm
ETD-2902
vertical(7+7PIN) PM9820 20.30mm 5.00mm
ETD-2904
horizontal(7+7PIN) T378J 34.50mm 5.00mm
ETD-2904C
NO PIN PBT - -
ETD-3401
horizontal(7+7PIN) T378J 25.60mm 5.00mm
ETD-3401-1
horizontal(7+7PIN) T378J 25.60mm 5.00mm
ETD-3403
vertical(7+7PIN) PA66 20.00mm 5.00mm
ETD-3901
horizontal(8+8PIN) T378J 30.50mm 5.00mm
ETD-3902
vertical(8+8PIN) PA66 25.00mm 5.00mm
ETD-4401
horizontal(9+9PIN) T378J 36.00mm 5.00mm
ETD-4403
vertical(2+2PIN) T378J 27.00mm 4.00mm
ETD-4403C
NO PIN PBT - -
ETD-4902
horizontal(10+10PIN) T378J 40.70mm 5.00mm
ETD-4902-1
horizontal(10+10PIN) T378J 40.70mm 5.00mm
ETD-5401
horizontal(11+11PIN) PA66 46.00mm 5.00mm
ETD-5901
horizontal(13+13PIN) PA66 50.80mm 5.08mm
ETD-5902
horizontal(12+12PIN) PA66 50.80mm 5.00mm
ETD-5903
vertical(12+12PIN) FR530 35.50mm 5.10mm
ETD-5903-1
vertical(6+12PIN) FR530 35.50mm 5.08/32.60mm
EVD
More - - - -
-
EVD-1501
horizontal(4+4PIN) T378J 15.00mm 3.70mm
EVD-2507-1
horizontal(4+4PIN) PA66 20.00mm 5.00mm
EVD-2507-2
horizontal(4+4PIN) PA66 20.00mm 5.00mm
EVD-2507-3
horizontal(4+4PIN) PA66 20.00mm 5.00mm
EVD-2508
horizontal(5+5PIN) PM9820 20.00mm 5.00mm
EVD-2508-1
horizontal(5+5PIN) PA66 20.00mm 5.00mm
EVD-3001
horizontal(6+6PIN) PF2A5-151J 28.00mm 3.80/5.00mm
FK
More - - - -
-
FK-1601
vertical(2+2PIN) PA66 19.00mm 10.00mm
FK-2301
vertical(2+2PIN) PA66 22.50mm 20.00mm
FK-2302
vertical(2+2PIN) PA66 18.80mm 10.00mm

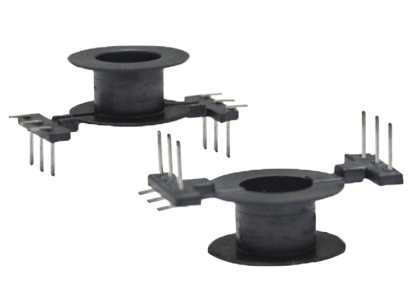

POT
More - - - -
-
POT-1801
vertical(3+3PIN) PA66 22.40mm 3.50mm
POT-1801-1
vertical(3+3PIN) PA66 22.40mm 3.50mm
POT-2201-1
vertical(NO PIN) PA66 - -
POT-2601-1
vertical(NO PIN) PA66 - -
POT-3015
vertical(5+5PIN) PM9820 28.00mm 5.00mm
POT-3019
vertical(5+5PIN) T200HF 27.50mm 5.00mm
POT-3019-1
vertical(5+5PIN) T200HF 29.50mm 5.00mm
POT-3314
vertical(5+5PIN) T378J 36.00mm 5.00mm
POT-4025-1
vertical(NO PIN) PA66 - -
PQ
More - - - -
-
PQ-2012
vertical(4+1PIN) PM9820 1.00/15.20mm 2.80/3.00mm
PQ-2014
vertical(4+2+2PIN) PM9820 14.2/15.2/22.25mm 3.00/3.50/4.00mm
PQ-2014-1
vertical(4+1PIN) PM9820 14.20/15.20mm 2.80/3.00mm
PQ-2016
vertical(6+8PIN) T378J 20.30mm 2.50/3.80/5.00mm
PQ-2016-1
vertical(4+0PIN) T378J - 3.50mm
PQ-2016-2
vertical(4+4PIN) T378J 15.80/16.20mm 3.50mm
PQ-2016-3
vertical(6+6PIN) T378J 19.00mm 3.50/4.30mm
PQ-2020
vertical(6+8PIN) T378J 20.30mm 2.50mm
PQ-2020-1
vertical(6+6PIN) T378J 19.10mm 3.50/4.30mm
PQ-2618
vertical(6+6PIN) T375HF 25.40mm 3.80/7.60mm
PQ-2618-1
vertical(6+6PIN) T375HF 23.20mm 3.70/7.50mm
PQ-2620
vertical(6+6PIN) T378J 25.40mm 3.80/7.60mm
PQ-2625
vertical(6+6PIN) T378J 25.60mm 3.80/7.60mm
PQ-2625-1
vertical(4+6PIN) T375HF 29.80mm 3.80/7.50mm
PQ-3218
vertical(6+6PIN) T378J 30.50mm 5.00/7.50mm
PQ-3218-1
vertical(6+6PIN) T378J 30.00mm 5.00/7.50mm
PQ-3220
vertical(6+6PIN) T378J 30.00mm 5.00/7.50mm
PQ-3220-2
vertical(6+6PIN) T378J 30.00mm 5.00/7.50mm
PQ-3220-3
vertical(6+6PIN) T378J 30.0mm 5.00/7.50mm
PQ-3220-4
vertical(6+6PIN) T378J 30.50mm 5.00/7.50mm
PQ-3225
vertical(6+6PIN) T378J 30.00mm 5.00/7.50mm
PQ-3225-1
vertical(6+6PIN) T378J 30.00mm 5.00/7.50mm
PQ-3225-2
vertical(6+6PIN) T378J 30.00mm 5.00/7.50mm
PQ-3225-3
vertical(6+6PIN) T378J 30.50mm 5.00/7.50mm
PQ-3225-4
horizontal(8+8PIN) PF2A5-151J 30.00mm 4.00/5.00mm
PQ-3225-6
vertical(6+6PIN) T378J 30.50mm 5.00/7.60mm
PQ-3225-7
vertical(6+6PIN) T378J 30.00mm 5.00/7.60mm
PQ-3230-2
vertical(6+6PIN) T378J 30.00mm 5.00/7.50mm
PQ-3230-3
vertical(6+6PIN) T378J 30.00mm 5.00/7.50mm
PQ-3230-4
vertical(4+4PIN) T378J 30.50mm 5.00/7.50mm
PQ-3230-5
horizontal(8+8PIN) PF2A5-151J 30.00mm 4.00/5.00mm
PQ-3235
vertical(6+6PIN) T378J 30.00mm 5.00/7.50mm
PQ-3235-1
vertical(6+6PIN) T378J 30.00mm 5.00/7.50mm
PQ-3528
vertical(6+6PIN) T378J 35.50mm 5.00/10.00mm
PQ-3535
vertical(6+6PIN) T378J 35.50mm 5.00/10.00mm
PQ-4040
vertical(6+6PIN) T378J 38.00mm 5.00/15.00mm
PQ-4040-2
horizontal(7+7PIN) T378J 35.00mm 5.00mm
PQ-4040-3
vertical(NO PIN) FR530 - -
PQ-5040
horizontal(NO PIN) PA66 - -
PQ-5050
vertical(6+6PIN) T378J 45.65mm 7.40/12.40mm
PQ-5050-1
vertical(NO PIN) T378J - -
PQ-5050-4
vertical(NO PIN) FR530 - -
RM
More - - - -
-
RM-0602
vertical(3+3PIN) PM9820 10.8/14.4/18.0mm 1.80/3.60mm
RM-0602-1
vertical(3+3PIN) PM9820 10.8/14.4/18.0mm 1.80/3.60mm
RM-0605
vertical(4+4PIN) PM9820 15.20mm 3.80/4.96mm
RM-0605-1
vertical(4+4PIN) PA66 15.40mm 3.70/5.20mm
RM-0605C-1
NO PIN PBT - -
RM-0607
vertical(6+6PIN) PBT 15.24mm 2.54/5.08mm
RM-0608
vertical(6+6PIN) PM9820 18.40mm 2.19/6.93mm
RM-0801
vertical(6+6PIN) PM9820 14.4/18.0/21.6mm 3.40/7.20mm
RM-0801-1
vertical(6+6PIN) PM9820 14.4/18.0/21.6mm 3.40/7.20mm
RM-1001-1
vertical(6+6PIN) PM9820 18.0/21.5/25.0mm 3.50/7.00mm
RM-1001-2
vertical(6+6PIN) PM9820 18.0/21.5/25.0mm 3.50/7.00mm
RM-1006
vertical(6+6PIN) PM9820 18.1/21.6/25.4mm 3.65/7.15mm
RM-1008
vertical(5+0PIN) PM9820 - 3.50mm
RM-1201
vertical(6+6PIN) PM9820 22.0/29.0/36.0mm 3.50/10.50mm
RM-1201-1
vertical(6+6PIN) PM9820 22.0/29.0/36.0mm 3.50/10.50mm
RM-1401
vertical(6+6PIN) PM9820 25.5/32.5/39.5mm 7.00/14.30mm
RM-1402
vertical(6+6PIN) PM9820 25.5/32.5/39.5mm 7.00/14.30mm
RM-1404
vertical(NO PIN) FR530 - -
UI
More - - - -
-
UI-12.7-1
Horizontal(3+3PIN) PA66 10.00mm 5.00mm
UI-12.7-2
Horizontal(3+3PIN) PA66 10.00mm 5.00mm
UI-1701
Horizontal(2+2PIN) PBT 9.00mm 6.00mm
UI-3001
Horizontal(NO PIN) PA66 - -
UI-3910
Horizontal(5+5PIN) PBT 45.00mm 5.00mm
UI-3913
Horizontal(5+5PIN) PBT 45.00mm 5.00mm
UI-0901
Horizontal(2+2PIN) T378J 8.00mm 7.00mm
UI-1052
Horizontal(2+2PIN) T378J 13.00mm 10.00mm
UI-1052-1
Horizontal(2+2PIN) T378J 13.00mm 10.00mm
UI-1055
Horizontal(2+2PIN) T378J 13.00mm 10.00mm -
UI-1056
Horizontal(2+2PIN) T378J 13.00mm 10.00mm -
UI-1057
Horizontal(2+2PIN) T378J 13.00mm 10.00mm -
UU
More - - - -
-
UU-0901
Horizontal(2+2PIN) T378J 8.00mm 7.00mm
UU-1052
Horizontal(2+2PIN) T378J 13.00mm 10.00mm
UU-1052-1
Horizontal(2+2PIN) T378J 13.00mm 10.00mm
UU-1055
Horizontal(2+2PIN) T378J 13.00mm 10.00mm
UU-1056
Horizontal(2+2PIN) T378J 13.00mm 10.00mm
UU-1057
Horizontal(2+2PIN) T378J 13.00mm 10.00mm
UU-1601-1
Horizontal(3+3PIN) T378J 13.00mm 5.00mm

* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters

Series
EE
EE-0802
EE-0803
EE-0804
EE-1001-1
EE-1002
EE-1202
EE-1301-1
EE-1302
EE-1303
EE-1304
EE-1305
EE-1309
EE-1310
EE-1310-1
EE-1401
EE-1501
EE-1502
EE-1604
EE-1608-1
EE-1608-2
EE-1608-3
EE-1608-4
EE-1610
EE-1611
EE-1618
EE-1618-1
EE-1618-2
EE-1618-4
EE-1618-5
EE-1618-6
EE-1619-2
EE-1901
EE-1901-1
EE-1901-2
EE-1903
EE-1911
EE-1912
EE-2502
EE-2504-1
EE-2507
EE-3006
EE-3201
EE-3201-1
EE-3202
EE-4005
EE-4201
EE-4202
EE-4202-1
EE-4203
EE-4206
EE-4206-1
EE-4209-1
EE-5501
EE-5502
EE-5503
EE-5504
EE-5507
EE-6502
EE-6502-1
EE-6504
EE-7001
EE-8001
EE-8501
EE-8502
EE-110
EE-130
EI
EI-1001
EI-1002
EI-1003
EI-1305
EI-1306
EI-1308
EI-1404
EI-1405
EI-1601
EI-1604-1
EI-1606
EI-1606-1
EI-1616
EI-1616-2
EI-1617
EI-1619
EI-1909
EI-1917
EI-2006
EI-2010
EI-2202
EI-2202-2
EI-2402
EI-2503
EI-2813
EI-2813-1
EI-2813-2
EI-2816
EI-3001
EI-3005
EI-3006
EI-3008
EI-3010
EI-3012
EI-3013
EI-3015
EI-3018
EI-3023
EI-3301
EI-3301-1
EI-3505
EI-3507
EI-3513
EI-3813
EI-4001
EI-4116
EI-4214
EI-4820
EI-5717
EEL
EEL-1903
EEL-1907
EEL-2203-1
EEL-2502-1
EF
EF-1201-2
EF-1201-3
EF-1202
EF-1203
EF-1205
EF-1206
EF-1601-1
EF-1602
EF-1602-1
EF-1602-2
EF-1603
EF-1604
EF-1605
EF-1607
EF-1608
EF-1609-1
EF-1610
EF-1611
EF-1613
EF-1614
EF-2001
EF-2001-1
EF-2002
EF-2003
EF-2004-1
EF-2006
EF-2007
EF-2008
EF-2017
EF-2025-1
EF-2026
EF-2501
EF-2502
EF-2504
EF-2505
EF-2505-1
EF-2508
EF-2508-1
EF-2508-2
EF-2509
EF-2511
EF-2513
EF-2514
EF-2515
EF-2518
EF-2519
EF-2527
EF-2549
EF-3201
EF-3202
EFD
EP
EP-1301
EP-1301-1
EP-2001
EPC
EPC-1301
EPC-1301-1
EPC-1303
EPC-1304
EPC-1701
EPC-1702
EPC-1703
EPC-1704
EPC-1902
EPC-3901
EPC-4601
EPC-4602
EPC-5402
ER
ER-2001
ER-2010
ER-2510
ER-2802
ER-2803
ER-2804
ER-2805
ER-2809
ER-2814
ER-2814-1
ER-3401
ER-3501
ER-3502
ER-3507
ER-3509
ER-3509-1
ER-3511
ER-3512
ER-3904
ER-4001-1
ER-4001-2
ER-4001-3
ER-4201
ER-4202
ER-4203-1
ER-4204
ER-4205
ER-4205-1
ER-4206
ER-4208
ER-4209
ER-4902
ER-6301
ETD
ETD-1901
ETD-2901
ETD-2902
ETD-2904
ETD-2904C
ETD-3401
ETD-3401-1
ETD-3403
ETD-3901
ETD-3902
ETD-4401
ETD-4403
ETD-4403C
ETD-4902
ETD-4902-1
ETD-5401
ETD-5901
ETD-5902
ETD-5903
ETD-5903-1
EVD
EVD-1501
EVD-2507-1
EVD-2507-2
EVD-2507-3
EVD-2508
EVD-2508-1
EVD-3001
FK
FK-1601
FK-2301
FK-2302
POT
POT-1801
POT-1801-1
POT-2201-1
POT-2601-1
POT-3015
POT-3019
POT-3019-1
POT-3314
POT-4025-1
PQ
PQ-2012
PQ-2014
PQ-2014-1
PQ-2016
PQ-2016-1
PQ-2016-2
PQ-2016-3
PQ-2020
PQ-2020-1
PQ-2618
PQ-2618-1
PQ-2620
PQ-2625
PQ-2625-1
PQ-3218
PQ-3218-1
PQ-3220
PQ-3220-2
PQ-3220-3
PQ-3220-4
PQ-3225
PQ-3225-1
PQ-3225-2
PQ-3225-3
PQ-3225-4
PQ-3225-6
PQ-3225-7
PQ-3230-2
PQ-3230-3
PQ-3230-4
PQ-3230-5
PQ-3235
PQ-3235-1
PQ-3528
PQ-3535
PQ-4040
PQ-4040-2
PQ-4040-3
PQ-5040
PQ-5050
PQ-5050-1
PQ-5050-4
RM
RM-0602
RM-0602-1
RM-0605
RM-0605-1
RM-0605C-1
RM-0607
RM-0608
RM-0801
RM-0801-1
RM-1001-1
RM-1001-2
RM-1006
RM-1008
RM-1201
RM-1201-1
RM-1401
RM-1402
RM-1404
UI
UI-12.7-1
UI-12.7-2
UI-1701
UI-3001
UI-3910
UI-3913
UI-0901
UI-1052
UI-1052-1
UI-1055
UI-1056
UI-1057
UU
UU-0901
UU-1052
UU-1052-1
UU-1055
UU-1056
UU-1057
UU-1601-1
hint
Please fill in the fields correctly

Subscription succeeded

Contact Us

  • Data name
