Alloy core-Metal soft magnetic core_Neu Flux Core_KNF290-090A

KNF290-090A

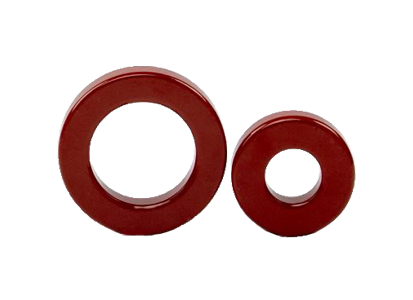

*The picture is for reference only, please refer to the actual product/technical specification for specific parameters

Alloy core-Metal soft magnetic core

  • 型号:KNF290-090A
  • Coating ID (mm): 75.20
  • Coating OD (mm): 44.07
  • Coating HT (mm): 36.27
  • Without coating HT (mm): 74.10
  • Without coating ID (mm): 45.30
  • Without coating OD (mm): 35.00
  • Ae(cm2): 5.04
  • le(cm): 18.38
  • V(cm3): 92.64
  • W(cm2): 15.25
  • Perm.(μ): 90
  • Al(nH/N2): 309
