Ring Core Choke
| Series | Dimension (mm) | Inductance | Rated current | Spec. | Certificate | Sample Application |
| FACM12H | 18.5*17.5*12.7 | 0.2mH-47.0mH | 0.3A-6.0A | - | - | - |
| FACM12H-102Y2R0 | 18.5*17.5*12.7 | 1.0mH | 2.0A | - | ||
| FACM12H-102Y2R0E | 18.5*17.5*12.7 | 1.0mH | 2.0A | - | ||
| FACM12H-103Y0R7 | 18.5*17.5*12.7 | 10.0mH | 0.7A | - | ||
| FACM12H-103Y0R7E | 18.5*17.5*12.7 | 10.0mH | 0.7A | - | ||
| FACM12H-153Y0R6 | 18.5*17.5*12.7 | 15.0mH | 0.6A | - | ||
| FACM12H-153Y0R6E | 18.5*17.5*12.7 | 15.0mH | 0.6A | - | ||
| FACM12H-183Y0R5 | 18.5*17.5*12.7 | 18.0mH | 0.5A | - | ||
| FACM12H-183Y0R5E | 18.5*17.5*12.7 | 18.0mH | 0.5A | - | ||
| FACM12H-201Y6R0 | 18.5*17.5*12.7 | 0.2mH | 6.0A | - | ||
| FACM12H-201Y6R0E | 18.5*17.5*12.7 | 0.2mH | 6.0A | - | ||
| FACM12H-273Y0R5 | 18.5*17.5*12.7 | 27.0mH | 0.5A | - | ||
| FACM12H-273Y0R5E | 18.5*17.5*12.7 | 27.0mH | 0.5A | - | ||
| FACM12H-301Y4R0 | 18.5*17.5*12.7 | 0.3mH | 4.0A | - | ||
| FACM12H-301Y4R0E | 18.5*17.5*12.7 | 0.3mH | 4.0A | - | ||
| FACM12H-332Y1R5 | 18.5*17.5*12.7 | 3.3mH | 1.5A | - | ||
| FACM12H-332Y1R5E | 18.5*17.5*12.7 | 3.3mH | 1.5A | - | ||
| FACM12H-393Y0R4 | 18.5*17.5*12.7 | 39.0mH | 0.4A | - | ||
| FACM12H-393Y0R4E | 18.5*17.5*12.7 | 39.0mH | 0.4A | - | ||
| FACM12H-401Y3R6 | 18.5*17.5*12.7 | 0.4mH | 3.6A | - | ||
| FACM12H-401Y3R6E | 18.5*17.5*12.7 | 0.4mH | 3.6A | - | ||
| FACM12H-473Y0R3 | 18.5*17.5*12.7 | 47.0mH | 0.3A | - | ||
| FACM12H-473Y0R3E | 18.5*17.5*12.7 | 47.0mH | 0.3A | - | ||
| FACM12H-601Y2R5 | 18.5*17.5*12.7 | 0.6mH | 2.5A | - | ||
| FACM12H-601Y2R5E | 18.5*17.5*12.7 | 0.6mH | 2.5A | - | ||
| FACM12H-682Y1R2 | 18.5*17.5*12.7 | 6.8mH | 1.2A | - | ||
| FACM12H-682Y1R2E | 18.5*17.5*12.7 | 6.8mH | 1.2A | - | ||
| FACM12V1 | 18.2*13.2*20.3 | 0.2mH-47.0mH | 0.3A-6.0A | - | - | - |
| FACM12V1-102Y2R0 | 18.2*13.2*20.3 | 1.0mH | 2.0A | - | ||
| FACM12V1-102Y2R0E | 18.2*13.2*20.3 | 1.0mH | 2.0A | - | ||
| FACM12V1-103Y0R7 | 18.2*13.2*20.3 | 10.0mH | 0.7A | - | ||
| FACM12V1-103Y0R7E | 18.2*13.2*20.3 | 10.0mH | 0.7A | - | ||
| FACM12V1-153Y0R6 | 18.2*13.2*20.3 | 15.0mH | 0.6A | - | ||
| FACM12V1-153Y0R6E | 18.2*13.2*20.3 | 15.0mH | 0.6A | - | ||
| FACM12V1-183Y0R5 | 18.2*13.2*20.3 | 18.0mH | 0.5A | - | ||
| FACM12V1-183Y0R5E | 18.2*13.2*20.3 | 18.0mH | 0.5A | - | ||
| FACM12V1-201Y6R0 | 18.2*13.2*20.3 | 0.2mH | 6.0A | - | ||
| FACM12V1-201Y6R0E | 18.2*13.2*20.3 | 0.2mH | 6.0A | - | ||
| FACM12V1-273Y0R5 | 18.2*13.2*20.3 | 27.0mH | 0.5A | - | ||
| FACM12V1-273Y0R5E | 18.2*13.2*20.3 | 27.0mH | 0.5A | - | ||
| FACM12V1-301Y4R0 | 18.2*13.2*20.3 | 0.3mH | 4.0A | - | ||
| FACM12V1-301Y4R0E | 18.2*13.2*20.3 | 0.3mH | 4.0A | - | ||
| FACM12V1-332Y1R5 | 18.2*13.2*20.3 | 3.3mH | 1.5A | - | ||
| FACM12V1-332Y1R5E | 18.2*13.2*20.3 | 3.3mH | 1.5A | - | ||
| FACM12V1-393Y0R4 | 18.2*13.2*20.3 | 39.0mH | 0.4A | - | ||
| FACM12V1-393Y0R4E | 18.2*13.2*20.3 | 39.0mH | 0.4A | - | ||
| FACM12V1-401Y3R6 | 18.2*13.2*20.3 | 0.4mH | 3.6A | - | ||
| FACM12V1-401Y3R6E | 18.2*13.2*20.3 | 0.4mH | 3.6A | - | ||
| FACM12V1-473Y0R3 | 18.2*13.2*20.3 | 47.0mH | 0.3A | - | ||
| FACM12V1-473Y0R3E | 18.2*13.2*20.3 | 47.0mH | 0.3A | - | ||
| FACM12V1-601Y2R5 | 18.2*13.2*20.3 | 0.6mH | 2.5A | - | ||
| FACM12V1-601Y2R5E | 18.2*13.2*20.3 | 0.6mH | 2.5A | - | ||
| FACM12V1-682Y1R2 | 18.2*13.2*20.3 | 6.8mH | 1.2A | - | ||
| FACM12V1-682Y1R2E | 18.2*13.2*20.3 | 6.8mH | 1.2A | - | ||
| FACM12V1S | 18.5*14.0*18.5 | 0.2mH-47.0mH | 0.3A-6.0A | - | - | - |
| FACM12V1S-102Y2R0 | 18.5*14.0*18.5 | 1.0mH | 2.0A | - | ||
| FACM12V1S-102Y2R0E | 18.5*14.0*18.5 | 1.0mH | 2.0A | - | ||
| FACM12V1S-103Y0R7 | 18.5*14.0*18.5 | 10.0mH | 0.7A | - | ||
| FACM12V1S-103Y0R7E | 18.5*14.0*18.5 | 10.0mH | 0.7A | - | ||
| FACM12V1S-153Y0R6 | 18.5*14.0*18.5 | 15.0mH | 0.6A | - | ||
| FACM12V1S-153Y0R6E | 18.5*14.0*18.5 | 15.0mH | 0.6A | - | ||
| FACM12V1S-183Y0R5 | 18.5*14.0*18.5 | 18.0mH | 0.5A | - | ||
| FACM12V1S-183Y0R5E | 18.5*14.0*18.5 | 18.0mH | 0.5A | - | ||
| FACM12V1S-201Y6R0 | 18.5*14.0*18.5 | 0.2mH | 6.0A | - | ||
| FACM12V1S-201Y6R0E | 18.5*14.0*18.5 | 0.2mH | 6.0A | - | ||
| FACM12V1S-273Y0R5 | 18.5*14.0*18.5 | 27.0mH | 0.5A | - | ||
| FACM12V1S-273Y0R5E | 18.5*14.0*18.5 | 27.0mH | 0.5A | - | ||
| FACM12V1S-301Y4R0 | 18.5*14.0*18.5 | 0.3mH | 4.0A | - | ||
| FACM12V1S-301Y4R0E | 18.5*14.0*18.5 | 0.3mH | 4.0A | - | ||
| FACM12V1S-332Y1R5 | 18.5*14.0*18.5 | 3.3mH | 1.5A | - | ||
| FACM12V1S-332Y1R5E | 18.5*14.0*18.5 | 3.3mH | 1.5A | - | ||
| FACM12V1S-393Y0R4 | 18.5*14.0*18.5 | 39.0mH | 0.4A | - | ||
| FACM12V1S-393Y0R4E | 18.5*14.0*18.5 | 39.0mH | 0.4A | - | ||
| FACM12V1S-401Y3R6 | 18.5*14.0*18.5 | 0.4mH | 3.6A | - | ||
| FACM12V1S-401Y3R6E | 18.5*14.0*18.5 | 0.4mH | 3.6A | - | ||
| FACM12V1S-473Y0R3 | 18.5*14.0*18.5 | 47.0mH | 0.3A | - | ||
| FACM12V1S-473Y0R3E | 18.5*14.0*18.5 | 47.0mH | 0.3A | - | ||
| FACM12V1S-601Y2R5 | 18.5*14.0*18.5 | 0.6mH | 2.5A | - | ||
| FACM12V1S-601Y2R5E | 18.5*14.0*18.5 | 0.6mH | 2.5A | - | ||
| FACM12V1S-682Y1R2 | 18.5*14.0*18.5 | 6.8mH | 1.2A | - | ||
| FACM12V1S-682Y1R2E | 18.5*14.0*18.5 | 6.8mH | 1.2A | - | ||

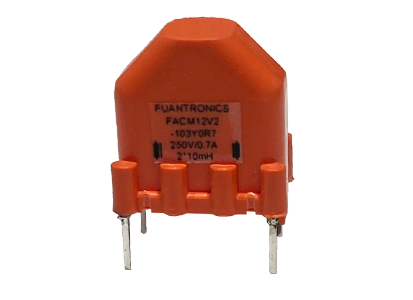

| FACM12V2 | 18.2*13.2*20.3 | 0.2mH-47.0mH | 0.3A-6.0A | - | - | - |
| FACM12V2-102Y2R0 | 18.2*13.2*20.3 | 1.0mH | 2.0A | - | ||
| FACM12V2-102Y2R0E | 18.2*13.2*20.3 | 1.0mH | 2.0A | - | ||
| FACM12V2-103Y0R7 | 18.2*13.2*20.3 | 10.0mH | 0.7A | - | ||
| FACM12V2-103Y0R7E | 18.2*13.2*20.3 | 10.0mH | 0.7A | - | ||
| FACM12V2-153Y0R6 | 18.2*13.2*20.3 | 15.0mH | 0.6A | - | ||
| FACM12V2-153Y0R6E | 18.2*13.2*20.3 | 15.0mH | 0.6A | - | ||
| FACM12V2-183Y0R5 | 18.2*13.2*20.3 | 18.0mH | 0.5A | - | ||
| FACM12V2-183Y0R5E | 18.2*13.2*20.3 | 18.0mH | 0.5A | - | ||
| FACM12V2-201Y6R0 | 18.2*13.2*20.3 | 0.2mH | 6.0A | - | ||
| FACM12V2-201Y6R0E | 18.2*13.2*20.3 | 0.2mH | 6.0A | - | ||
| FACM12V2-273Y0R5 | 18.2*13.2*20.3 | 27.0mH | 0.5A | - | ||
| FACM12V2-273Y0R5E | 18.2*13.2*20.3 | 27.0mH | 0.5A | - | ||
| FACM12V2-301Y4R0 | 18.2*13.2*20.3 | 0.3mH | 4.0A | - | ||
| FACM12V2-301Y4R0E | 18.2*13.2*20.3 | 0.3mH | 4.0A | - | ||
| FACM12V2-332Y1R5 | 18.2*13.2*20.3 | 3.3mH | 1.5A | - | ||
| FACM12V2-332Y1R5E | 18.2*13.2*20.3 | 3.3mH | 1.5A | - | ||
| FACM12V2-393Y0R4 | 18.2*13.2*20.3 | 39.0mH | 0.4A | - | ||
| FACM12V2-393Y0R4E | 18.2*13.2*20.3 | 39.0mH | 0.4A | - | ||
| FACM12V2-401Y3R6 | 18.2*13.2*20.3 | 0.4mH | 3.6A | - | ||
| FACM12V2-401Y3R6E | 18.2*13.2*20.3 | 0.4mH | 3.6A | - | ||
| FACM12V2-473Y0R3 | 18.2*13.2*20.3 | 47.0mH | 0.3A | - | ||
| FACM12V2-473Y0R3E | 18.2*13.2*20.3 | 47.0mH | 0.3A | - | ||
| FACM12V2-601Y2R5 | 18.2*13.2*20.3 | 0.6mH | 2.5A | - | ||
| FACM12V2-601Y2R5E | 18.2*13.2*20.3 | 0.6mH | 2.5A | - | ||
| FACM12V2-682Y1R2 | 18.2*13.2*20.3 | 6.8mH | 1.2A | - | ||
| FACM12V2-682Y1R2E | 18.2*13.2*20.3 | 6.8mH | 1.2A | - | ||
| FACM12V2S | 18.5*14.0*18.5 | 0.2mH-47.0mH | 0.3A-6.0A | - | - | - |
| FACM12V2S-102Y2R0 | 18.5*14.0*18.5 | 1.0mH | 2.0A | - | ||
| FACM12V2S-102Y2R0E | 18.5*14.0*18.5 | 1.0mH | 2.0A | - | ||
| FACM12V2S-103Y0R7 | 18.5*14.0*18.5 | 10.0mH | 0.7A | - | ||
| FACM12V2S-103Y0R7E | 18.5*14.0*18.5 | 10.0mH | 0.7A | - | ||
| FACM12V2S-153Y0R6 | 18.5*14.0*18.5 | 15.0mH | 0.6A | - | ||
| FACM12V2S-153Y0R6E | 18.5*14.0*18.5 | 15.0mH | 0.6A | - | ||
| FACM12V2S-183Y0R5 | 18.5*14.0*18.5 | 18.0mH | 0.5A | - | ||
| FACM12V2S-183Y0R5E | 18.5*14.0*18.5 | 18.0mH | 0.5A | - | ||
| FACM12V2S-201Y6R0 | 18.5*14.0*18.5 | 0.2mH | 6.0A | - | ||
| FACM12V2S-201Y6R0E | 18.5*14.0*18.5 | 0.2mH | 6.0A | - | ||
| FACM12V2S-273Y0R5 | 18.5*14.0*18.5 | 27.0mH | 0.5A | - | ||
| FACM12V2S-273Y0R5E | 18.5*14.0*18.5 | 27.0mH | 0.5A | - | ||
| FACM12V2S-301Y4R0 | 18.5*14.0*18.5 | 0.3mH | 4.0A | - | ||
| FACM12V2S-301Y4R0E | 18.5*14.0*18.5 | 0.3mH | 4.0A | - | ||
| FACM12V2S-332Y1R5 | 18.5*14.0*18.5 | 3.3mH | 1.5A | - | ||
| FACM12V2S-332Y1R5E | 18.5*14.0*18.5 | 3.3mH | 1.5A | - | ||
| FACM12V2S-393Y0R4 | 18.5*14.0*18.5 | 39.0mH | 0.4A | - | ||
| FACM12V2S-393Y0R4E | 18.5*14.0*18.5 | 39.0mH | 0.4A | - | ||
| FACM12V2S-401Y3R6 | 18.5*14.0*18.5 | 0.4mH | 3.6A | - | ||
| FACM12V2S-401Y3R6E | 18.5*14.0*18.5 | 0.4mH | 3.6A | - | ||
| FACM12V2S-473Y0R3 | 18.5*14.0*18.5 | 47.0mH | 0.3A | - | ||
| FACM12V2S-473Y0R3E | 18.5*14.0*18.5 | 47.0mH | 0.3A | - | ||
| FACM12V2S-601Y2R5 | 18.5*14.0*18.5 | 0.6mH | 2.5A | - | ||
| FACM12V2S-601Y2R5E | 18.5*14.0*18.5 | 0.6mH | 2.5A | - | ||
| FACM12V2S-682Y1R2 | 18.5*14.0*18.5 | 6.8mH | 1.2A | - | ||
| FACM12V2S-682Y1R2E | 18.5*14.0*18.5 | 6.8mH | 1.2A | - | ||
| FACM16H | 23.5*22.5*13.5 | 1.2mH-68.0mH | 0.3A-3.0A | - | - | - |
| FACM16H-103Y1R3 | 23.5*22.5*13.5 | 10.0mH | 1.3A | - | ||
| FACM16H-103Y1R3E | 23.5*22.5*13.5 | 10.0mH | 1.3A | - | ||
| FACM16H-122Y3R0 | 23.5*22.5*13.5 | 1.2mH | 3.0A | - | ||
| FACM16H-122Y3R0E | 23.5*22.5*13.5 | 1.2mH | 3.0A | - | ||
| FACM16H-153Y1R0 | 23.5*22.5*13.5 | 15.0mH | 1.0A | - | ||
| FACM16H-153Y1R0E | 23.5*22.5*13.5 | 15.0mH | 1.0A | - | ||
| FACM16H-172Y2R5 | 23.5*22.5*13.5 | 1.7mH | 2.5A | - | ||
| FACM16H-172Y2R5E | 23.5*22.5*13.5 | 1.7mH | 2.5A | - | ||
| FACM16H-222Y2R0 | 23.5*22.5*13.5 | 2.2mH | 2.0A | - | ||
| FACM16H-222Y2R0E | 23.5*22.5*13.5 | 2.2mH | 2.0A | - | ||
| FACM16H-273Y0R8 | 23.5*22.5*13.5 | 27.0mH | 0.8A | - | ||
| FACM16H-273Y0R8E | 23.5*22.5*13.5 | 27.0mH | 0.8A | - | ||
| FACM16H-332Y2R0 | 23.5*22.5*13.5 | 3.3mH | 2.0A | - | ||
| FACM16H-332Y2R0E | 23.5*22.5*13.5 | 3.3mH | 2.0A | - | ||
| FACM16H-393Y0R5 | 23.5*22.5*13.5 | 39.0mH | 0.5A | - | ||
| FACM16H-393Y0R5E | 23.5*22.5*13.5 | 39.0mH | 0.5A | - | ||
| FACM16H-402Y2R0 | 23.5*22.5*13.5 | 4.0mH | 2.0A | - | ||
| FACM16H-402Y2R0E | 23.5*22.5*13.5 | 4.0mH | 2.0A | - | ||
| FACM16H-422Y1R7 | 23.5*22.5*13.5 | 4.2mH | 1.7A | - | ||
| FACM16H-422Y1R7E | 23.5*22.5*13.5 | 4.2mH | 1.7A | - | ||
| FACM16H-473Y0R5 | 23.5*22.5*13.5 | 47.0mH | 0.5A | - | ||
| FACM16H-473Y0R5E | 23.5*22.5*13.5 | 47.0mH | 0.5A | - | ||
| FACM16H-563Y0R5 | 23.5*22.5*13.5 | 56.0mH | 0.5A | - | ||
| FACM16H-563Y0R5E | 23.5*22.5*13.5 | 56.0mH | 0.5A | - | ||
| FACM16H-682Y1R5 | 23.5*22.5*13.5 | 6.8mH | 1.5A | - | ||
| FACM16H-682Y1R5E | 23.5*22.5*13.5 | 6.8mH | 1.5A | - | ||
| FACM16H-683Y0R3 | 23.5*22.5*13.5 | 68.0mH | 0.3A | - | ||
| FACM16H-683Y0R3E | 23.5*22.5*13.5 | 68.0mH | 0.3A | - | ||
| FACM16V1 | 23.5*16.1*25.5 | 1.2mH-68.0mH | 0.3A-3.0A | - | - | - |
| FACM16V1-103Y1R3 | 23.5*16.1*25.5 | 10.0mH | 1.3A | - | ||
| FACM16V1-103Y1R3E | 23.5*16.1*25.5 | 10.0mH | 1.3A | - | ||
| FACM16V1-122Y3R0 | 23.5*16.1*25.5 | 1.2mH | 3.0A | - | ||
| FACM16V1-122Y3R0E | 23.5*16.1*25.5 | 1.2mH | 3.0A | - | ||
| FACM16V1-153Y1R0 | 23.5*16.1*25.5 | 15.0mH | 1.0A | - | ||
| FACM16V1-153Y1R0E | 23.5*16.1*25.5 | 15.0mH | 1.0A | - | ||
| FACM16V1-172Y2R5 | 23.5*16.1*25.5 | 1.7mH | 2.5A | - | ||
| FACM16V1-172Y2R5E | 23.5*16.1*25.5 | 1.7mH | 2.5A | - | ||
| FACM16V1-222Y2R0 | 23.5*16.1*25.5 | 2.2mH | 2.0A | - | ||
| FACM16V1-222Y2R0E | 23.5*16.1*25.5 | 2.2mH | 2.0A | - | ||
| FACM16V1-273Y0R8 | 23.5*16.1*25.5 | 27.0mH | 0.8A | - | ||
| FACM16V1-273Y0R8E | 23.5*16.1*25.5 | 27.0mH | 0.8A | - | ||
| FACM16V1-332Y2R0 | 23.5*16.1*25.5 | 3.3mH | 2.0A | - | ||
| FACM16V1-332Y2R0E | 23.5*16.1*25.5 | 3.3mH | 2.0A | - | ||
| FACM16V1-393Y0R5 | 23.5*16.1*25.5 | 39.0mH | 0.5A | - | ||
| FACM16V1-393Y0R5E | 23.5*16.1*25.5 | 39.0mH | 0.5A | - | ||
| FACM16V1-402Y2R0 | 23.5*16.1*25.5 | 4.0mH | 2.0A | - | ||
| FACM16V1-402Y2R0E | 23.5*16.1*25.5 | 4.0mH | 2.0A | - | ||
| FACM16V1-422Y1R7 | 23.5*16.1*25.5 | 4.2mH | 1.7A | - | ||
| FACM16V1-422Y1R7E | 23.5*16.1*25.5 | 4.2mH | 1.7A | - | ||
| FACM16V1-473Y0R5 | 23.5*16.1*25.5 | 47.0mH | 0.5A | - | ||
| FACM16V1-473Y0R5E | 23.5*16.1*25.5 | 47.0mH | 0.5A | - | ||
| FACM16V1-563Y0R5 | 23.5*16.1*25.5 | 56.0mH | 0.5A | - | ||
| FACM16V1-563Y0R5E | 23.5*16.1*25.5 | 56.0mH | 0.5A | - | ||
| FACM16V1-682Y1R5 | 23.5*16.1*25.5 | 6.8mH | 1.5A | - | ||
| FACM16V1-682Y1R5E | 23.5*16.1*25.5 | 6.8mH | 1.5A | - | ||
| FACM16V1-683Y0R3 | 23.5*16.1*25.5 | 68.0mH | 0.3A | - | ||
| FACM16V1-683Y0R3E | 23.5*16.1*25.5 | 68.0mH | 0.3A | - | ||
| FACM16V2 | 1.2mH-68.0mH | 1.2mH-68.0mH | 0.3A-3.0A | - | - | - |
| FACM16V2-103Y1R3 | 23.5*16.1*25.5 | 10.0mH | 1.3A | - | ||
| FACM16V2-103Y1R3E | 23.5*16.1*25.5 | 10.0mH | 1.3A | - | ||
| FACM16V2-122Y3R0 | 23.5*16.1*25.5 | 1.2mH | 3.0A | - | ||
| FACM16V2-122Y3R0E | 23.5*16.1*25.5 | 1.2mH | 3.0A | - | ||
| FACM16V2-153Y1R0 | 23.5*16.1*25.5 | 15.0mH | 1.0A | - | ||
| FACM16V2-153Y1R0E | 23.5*16.1*25.5 | 15.0mH | 1.0A | - | ||
| FACM16V2-172Y2R5 | 23.5*16.1*25.5 | 1.7mH | 2.5A | - | ||
| FACM16V2-172Y2R5E | 23.5*16.1*25.5 | 1.7mH | 2.5A | - | ||
| FACM16V2-222Y2R0 | 23.5*16.1*25.5 | 2.2mH | 2.0A | - | ||
| FACM16V2-222Y2R0E | 23.5*16.1*25.5 | 2.2mH | 2.0A | - | ||
| FACM16V2-273Y0R8 | 23.5*16.1*25.5 | 27.0mH | 0.8A | - | ||
| FACM16V2-273Y0R8E | 23.5*16.1*25.5 | 27.0mH | 0.8A | - | ||
| FACM16V2-332Y2R0 | 23.5*16.1*25.5 | 3.3mH | 2.0A | - | ||
| FACM16V2-332Y2R0E | 23.5*16.1*25.5 | 3.3mH | 2.0A | - | ||
| FACM16V2-393Y0R5 | 23.5*16.1*25.5 | 39.0mH | 0.5A | - | ||
| FACM16V2-393Y0R5E | 23.5*16.1*25.5 | 39.0mH | 0.5A | - | ||
| FACM16V2-402Y2R0 | 23.5*16.1*25.5 | 4.0mH | 2.0A | - | ||
| FACM16V2-402Y2R0E | 23.5*16.1*25.5 | 4.0mH | 2.0A | - | ||
| FACM16V2-422Y1R7 | 23.5*16.1*25.5 | 4.2mH | 1.7A | - | ||
| FACM16V2-422Y1R7E | 23.5*16.1*25.5 | 4.2mH | 1.7A | - | ||
| FACM16V2-473Y0R5 | 23.5*16.1*25.5 | 47.0mH | 0.5A | - | ||
| FACM16V2-473Y0R5E | 23.5*16.1*25.5 | 47.0mH | 0.5A | - | ||
| FACM16V2-563Y0R5 | 23.5*16.1*25.5 | 56.0mH | 0.5A | - | ||
| FACM16V2-563Y0R5E | 23.5*16.1*25.5 | 56.0mH | 0.5A | - | ||
| FACM16V2-682Y1R5 | 23.5*16.1*25.5 | 6.8mH | 1.5A | - | ||
| FACM16V2-682Y1R5E | 23.5*16.1*25.5 | 6.8mH | 1.5A | - | ||
| FACM16V2-683Y0R3 | 23.5*16.1*25.5 | 68.0mH | 0.3A | - | ||
| FACM16V2-683Y0R3E | 23.5*16.1*25.5 | 68.0mH | 0.3A | - | ||
| FACM22H | 28.5*27.5*16.8 | 0.45mH-56.0mH | 0.5A-8.0A | - | - | - |
| FACM22H-102Y6R0 | 28.5*27.5*16.8 | 1.0mH | 6.0A | - | ||
| FACM22H-102Y6R0E | 28.5*27.5*16.8 | 1.0mH | 6.0A | - | ||
| FACM22H-103Y1R8 | 28.5*27.5*16.8 | 10.0mH | 1.8A | - | ||
| FACM22H-103Y1R8E | 28.5*27.5*16.8 | 10.0mH | 1.8A | - | ||
| FACM22H-272Y4R0 | 28.5*27.5*16.8 | 2.7mH | 4.0A | - | ||
| FACM22H-272Y4R0E | 28.5*27.5*16.8 | 2.7mH | 4.0A | - | ||
| FACM22H-273Y1R4 | 28.5*27.5*16.8 | 27.0mH | 1.4A | - | ||
| FACM22H-273Y1R4E | 28.5*27.5*16.8 | 27.0mH | 1.4A | - | ||
| FACM22H-393Y1R0 | 28.5*27.5*16.8 | 39.0mH | 1.0A | - | ||
| FACM22H-393Y1R0E | 28.5*27.5*16.8 | 39.0mH | 1.0A | - | ||
| FACM22H-451Y8R0 | 28.5*27.5*16.8 | 0.45mH | 8.0A | - | ||
| FACM22H-451Y8R0E | 28.5*27.5*16.8 | 0.45mH | 8.0A | - | ||
| FACM22H-473Y0R6 | 28.5*27.5*16.8 | 47.0mH | 0.6A | - | ||
| FACM22H-473Y0R6E | 28.5*27.5*16.8 | 47.0mH | 0.6A | - | ||
| FACM22H-562Y2R0 | 28.5*27.5*16.8 | 5.6mH | 2.0A | - | ||
| FACM22H-562Y2R0E | 28.5*27.5*16.8 | 5.6mH | 2.0A | - | ||
| FACM22H-563Y0R5 | 28.5*27.5*16.8 | 56.0mH | 0.5A | - | ||
| FACM22H-563Y0R5E | 28.5*27.5*16.8 | 56.0mH | 0.5A | - | ||
| FACM22V1 | 28.0*18.6*31 | 0.45mH-56.0mH | 0.5A-8.0A | - | - | - |
| FACM22V1-102Y6R0 | 28.0*18.6*31 | 1.0mH | 6.0A | - | ||
| FACM22V1-102Y6R0E | 28.0*18.6*31 | 1.0mH | 6.0A | - | ||
| FACM22V1-103Y1R8 | 28.0*18.6*31 | 10.0mH | 1.8A | - | ||
| FACM22V1-103Y1R8E | 28.0*18.6*31 | 10.0mH | 1.8A | - | ||
| FACM22V1-272Y4R0 | 28.0*18.6*31 | 2.7mH | 4.0A | - | ||
| FACM22V1-272Y4R0E | 28.0*18.6*31 | 2.7mH | 4.0A | - | ||
| FACM22V1-273Y1R4 | 28.0*18.6*31 | 27.0mH | 1.4A | - | ||
| FACM22V1-273Y1R4E | 28.0*18.6*31 | 27.0mH | 1.4A | - | ||
| FACM22V1-393Y1R0 | 28.0*18.6*31 | 39.0mH | 1.0A | - | ||
| FACM22V1-393Y1R0E | 28.0*18.6*31 | 39.0mH | 1.0A | - | ||
| FACM22V1-451Y8R0 | 28.0*18.6*31 | 0.45mH | 8.0A | - | ||
| FACM22V1-451Y8R0E | 28.0*18.6*31 | 0.45mH | 8.0A | - | ||
| FACM22V1-473Y0R6 | 28.0*18.6*31 | 47.0mH | 0.6A | - | ||
| FACM22V1-473Y0R6E | 28.0*18.6*31 | 47.0mH | 0.6A | - | ||
| FACM22V1-562Y2R0 | 28.0*18.6*31 | 5.6mH | 2.0A | - | ||
| FACM22V1-562Y2R0E | 28.0*18.6*31 | 5.6mH | 2.0A | - | ||
| FACM22V1-563Y0R5 | 28.0*18.6*31 | 56.0mH | 0.5A | - | ||
| FACM22V1-563Y0R5E | 28.0*18.6*31 | 56.0mH | 0.5A | - | ||
| FACM22V2 | 28.0*18.6*31 | 0.45mH-56.0mH | 0.5A-8.0A | - | - | - |
| FACM22V2-102Y6R0 | 28.0*18.6*31 | 1.0mH | 6.0A | - | ||
| FACM22V2-102Y6R0E | 28.0*18.6*31 | 1.0mH | 6.0A | - | ||
| FACM22V2-103Y1R8 | 28.0*18.6*31 | 10.0mH | 1.8A | - | ||
| FACM22V2-103Y1R8E | 28.0*18.6*31 | 10.0mH | 1.8A | - | ||
| FACM22V2-272Y4R0 | 28.0*18.6*31 | 2.7mH | 4.0A | - | ||
| FACM22V2-272Y4R0E | 28.0*18.6*31 | 2.7mH | 4.0A | - | ||
| FACM22V2-273Y1R4 | 28.0*18.6*31 | 27.0mH | 1.4A | - | ||
| FACM22V2-273Y1R4E | 28.0*18.6*31 | 27.0mH | 1.4A | - | ||
| FACM22V2-393Y1R0 | 28.0*18.6*31 | 39.0mH | 1.0A | - | ||
| FACM22V2-393Y1R0E | 28.0*18.6*31 | 39.0mH | 1.0A | - | ||
| FACM22V2-451Y8R0 | 28.0*18.6*31 | 0.45mH | 8.0A | - | ||
| FACM22V2-451Y8R0E | 28.0*18.6*31 | 0.45mH | 8.0A | - | ||
| FACM22V2-473Y0R6 | 28.0*18.6*31 | 47.0mH | 0.6A | - | ||
| FACM22V2-473Y0R6E | 28.0*18.6*31 | 47.0mH | 0.6A | - | ||
| FACM22V2-562Y2R0 | 28.0*18.6*31 | 5.6mH | 2.0A | - | ||
| FACM22V2-562Y2R0E | 28.0*18.6*31 | 5.6mH | 2.0A | - | ||
| FACM22V2-563Y0R5 | 28.0*18.6*31 | 56.0mH | 0.5A | - | ||
| FACM22V2-563Y0R5E | 28.0*18.6*31 | 56.0mH | 0.5A | - | ||
| FACM25V1 | 32.5*18.5*35.5 | 1.0mH-100mH | 0.4A-10.0A | - | - | - |
| FACM25V1-102Y10R0 | 32.5*18.5*35.5 | 1.0mH | 10.0A | - | ||
| FACM25V1-102Y10R0E | 32.5*18.5*35.5 | 1.0mH | 10.0A | - | ||
| FACM25V1-103Y3R3 | 32.5*18.5*35.5 | 10.0mH | 3.3A | - | ||
| FACM25V1-103Y3R3E | 32.5*18.5*35.5 | 10.0mH | 3.3A | - | ||
| FACM25V1-104Y0R4 | 32.5*18.5*35.5 | 100mH | 0.4A | - | ||
| FACM25V1-104Y0R4E | 32.5*18.5*35.5 | 100mH | 0.4A | - | ||
| FACM25V1-123Y3R0 | 32.5*18.5*35.5 | 12.0mH | 3.0A | - | ||
| FACM25V1-123Y3R0E | 32.5*18.5*35.5 | 12.0mH | 3.0A | - | ||
| FACM25V1-152Y8R0 | 32.5*18.5*35.5 | 1.5mH | 8.0A | - | ||
| FACM25V1-152Y8R0E | 32.5*18.5*35.5 | 1.5mH | 8.0A | - | ||
| FACM25V1-153Y2R5 | 32.5*18.5*35.5 | 15.0mH | 2.5A | - | ||
| FACM25V1-153Y2R5E | 32.5*18.5*35.5 | 15.0mH | 2.5A | - | ||
| FACM25V1-202Y7R0 | 32.5*18.5*35.5 | 2.0mH | 7.0A | - | ||
| FACM25V1-202Y7R0E | 32.5*18.5*35.5 | 2.0mH | 7.0A | - | ||
| FACM25V1-203Y2R2 | 32.5*18.5*35.5 | 20.0mH | 2.2A | - | ||
| FACM25V1-203Y2R2E | 32.5*18.5*35.5 | 20.0mH | 2.2A | - | ||
| FACM25V1-273Y2R0 | 32.5*18.5*35.5 | 27.0mH | 2.0A | - | ||
| FACM25V1-273Y2R0E | 32.5*18.5*35.5 | 27.0mH | 2.0A | - | ||
| FACM25V1-332Y6R0 | 32.5*18.5*35.5 | 3.3mH | 6.0A | - | ||
| FACM25V1-332Y6R0E | 32.5*18.5*35.5 | 3.3mH | 6.0A | - | ||
| FACM25V1-333Y1R8 | 32.5*18.5*35.5 | 33.0mH | 1.8A | - | ||
| FACM25V1-333Y1R8E | 32.5*18.5*35.5 | 33.0mH | 1.8A | - | ||
| FACM25V1-393Y1R5 | 32.5*18.5*35.5 | 39.0mH | 1.5A | - | ||
| FACM25V1-393Y1R5E | 32.5*18.5*35.5 | 39.0mH | 1.5A | - | ||
| FACM25V1-472Y5R0 | 32.5*18.5*35.5 | 4.7mH | 5.0A | - | ||
| FACM25V1-472Y5R0E | 32.5*18.5*35.5 | 4.7mH | 5.0A | - | ||
| FACM25V1-473Y1R0 | 32.5*18.5*35.5 | 47.0mH | 1.0A | - | ||
| FACM25V1-473Y1R0E | 32.5*18.5*35.5 | 47.0mH | 1.0A | - | ||
| FACM25V1-473Y1R2 | 32.5*18.5*35.5 | 47.0mH | 1.2A | - | ||
| FACM25V1-473Y1R2E | 32.5*18.5*35.5 | 47.0mH | 1.2A | - | ||
| FACM25V1-562Y4R0 | 32.5*18.5*35.5 | 5.6mH | 4.0A | - | ||
| FACM25V1-562Y4R0E | 32.5*18.5*35.5 | 5.6mH | 4.0A | - | ||
| FACM25V1-563Y0R8 | 32.5*18.5*35.5 | 56.0mH | 0.8A | - | ||
| FACM25V1-563Y0R8E | 32.5*18.5*35.5 | 56.0mH | 0.8A | - | ||
| FACM25V1-682Y3R5 | 32.5*18.5*35.5 | 6.8mH | 3.5A | - | ||
| FACM25V1-682Y3R5E | 32.5*18.5*35.5 | 6.8mH | 3.5A | - | ||
| FACM25V1-683Y0R7 | 32.5*18.5*35.5 | 68.0mH | 0.7A | - | ||
| FACM25V1-683Y0R7E | 32.5*18.5*35.5 | 68.0mH | 0.7A | - | ||
| FACM25V1-823Y0R6 | 32.5*18.5*35.5 | 82.0mH | 0.6A | - | ||
| FACM25V1-823Y0R6E | 32.5*18.5*35.5 | 82.0mH | 0.6A | - | ||
| FACM25V2 | 32.5*18.5*35.5 | 1.0mH-100mH | 0.4A-10.0A | - | - | - |
| FACM25V2-102Y10R0 | 32.5*18.5*35.5 | 1.0mH | 10.0A | - | ||
| FACM25V2-102Y10R0E | 32.5*18.5*35.5 | 1.0mH | 10.0A | - | ||
| FACM25V2-103Y3R3 | 32.5*18.5*35.5 | 10.0mH | 3.3A | - | ||
| FACM25V2-103Y3R3E | 32.5*18.5*35.5 | 10.0mH | 3.3A | - | ||
| FACM25V2-104Y0R4 | 32.5*18.5*35.5 | 100mH | 0.4A | - | ||
| FACM25V2-104Y0R4E | 32.5*18.5*35.5 | 100mH | 0.4A | - | ||
| FACM25V2-123Y3R0 | 32.5*18.5*35.5 | 12.0mH | 3.0A | - | ||
| FACM25V2-123Y3R0E | 32.5*18.5*35.5 | 12.0mH | 3.0A | - | ||
| FACM25V2-152Y8R0 | 32.5*18.5*35.5 | 1.5mH | 8.0A | - | ||
| FACM25V2-152Y8R0E | 32.5*18.5*35.5 | 1.5mH | 8.0A | - | ||
| FACM25V2-153Y2R5 | 32.5*18.5*35.5 | 15.0mH | 2.5A | - | ||
| FACM25V2-153Y2R5E | 32.5*18.5*35.5 | 15.0mH | 2.5A | - | ||
| FACM25V2-202Y7R0 | 32.5*18.5*35.5 | 2.0mH | 7.0A | - | ||
| FACM25V2-202Y7R0E | 32.5*18.5*35.5 | 2.0mH | 7.0A | - | ||
| FACM25V2-203Y2R2 | 32.5*18.5*35.5 | 20.0mH | 2.2A | - | ||
| FACM25V2-203Y2R2E | 32.5*18.5*35.5 | 20.0mH | 2.2A | - | ||
| FACM25V2-273Y2R0 | 32.5*18.5*35.5 | 27.0mH | 2.0A | - | ||
| FACM25V2-273Y2R0E | 32.5*18.5*35.5 | 27.0mH | 2.0A | - | ||
| FACM25V2-332Y6R0 | 32.5*18.5*35.5 | 3.3mH | 6.0A | - | ||
| FACM25V2-332Y6R0E | 32.5*18.5*35.5 | 3.3mH | 6.0A | - | ||
| FACM25V2-333Y1R8 | 32.5*18.5*35.5 | 33.0mH | 1.8A | - | ||
| FACM25V2-333Y1R8E | 32.5*18.5*35.5 | 33.0mH | 1.8A | - | ||
| FACM25V2-393Y1R5 | 32.5*18.5*35.5 | 39.0mH | 1.5A | - | ||
| FACM25V2-393Y1R5E | 32.5*18.5*35.5 | 39.0mH | 1.5A | - | ||
| FACM25V2-472Y5R0 | 32.5*18.5*35.5 | 4.7mH | 5.0A | - | ||
| FACM25V2-472Y5R0E | 32.5*18.5*35.5 | 4.7mH | 5.0A | - | ||
| FACM25V2-473Y1R0 | 32.5*18.5*35.5 | 47.0mH | 1.0A | - | ||
| FACM25V2-473Y1R0E | 32.5*18.5*35.5 | 47.0mH | 1.0A | - | ||
| FACM25V2-473Y1R2 | 32.5*18.5*35.5 | 47.0mH | 1.2A | - | ||
| FACM25V2-473Y1R2E | 32.5*18.5*35.5 | 47.0mH | 1.2A | - | ||
| FACM25V2-562Y4R0 | 32.5*18.5*35.5 | 5.6mH | 4.0A | - | ||
| FACM25V2-562Y4R0E | 32.5*18.5*35.5 | 5.6mH | 4.0A | - | ||
| FACM25V2-563Y0R8 | 32.5*18.5*35.5 | 56.0mH | 0.8A | - | ||
| FACM25V2-563Y0R8E | 32.5*18.5*35.5 | 56.0mH | 0.8A | - | ||
| FACM25V2-682Y3R5 | 32.5*18.5*35.5 | 6.8mH | 3.5A | - | ||
| FACM25V2-682Y3R5E | 32.5*18.5*35.5 | 6.8mH | 3.5A | - | ||
| FACM25V2-683Y0R7 | 32.5*18.5*35.5 | 68.0mH | 0.7A | - | ||
| FACM25V2-683Y0R7E | 32.5*18.5*35.5 | 68.0mH | 0.7A | - | ||
| FACM25V2-823Y0R6 | 32.5*18.5*35.5 | 82.0mH | 0.6A | - | ||
| FACM25V2-823Y0R6E | 32.5*18.5*35.5 | 82.0mH | 0.6A | - | ||
| FACM31H1 | 44.0*43.0*25.5 | 1.0mH-100mH | 1.5A-15.0A | - | - | - |
| FACM31H1-102Y15R0 | 44.0*43.0*25.5 | 1.0mH | 15.0A | - | ||
| FACM31H1-102Y15R0E | 44.0*43.0*25.5 | 1.0mH | 15.0A | - | ||
| FACM31H1-103Y6R0 | 44.0*43.0*25.5 | 10.0mH | 6.0A | - | ||
| FACM31H1-103Y6R0E | 44.0*43.0*25.5 | 10.0mH | 6.0A | - | ||
| FACM31H1-104Y1R5 | 44.0*43.0*25.5 | 100.0mH | 1.5A | - | ||
| FACM31H1-104Y1R5E | 44.0*43.0*25.5 | 100.0mH | 1.5A | - | ||
| FACM31H1-152Y15R0 | 44.0*43.0*25.5 | 1.5mH | 15.0A | - | ||
| FACM31H1-152Y15R0E | 44.0*43.0*25.5 | 1.5mH | 15.0A | - | ||
| FACM31H1-153Y5R5 | 44.0*43.0*25.5 | 15.0mH | 5.5A | - | ||
| FACM31H1-153Y5R5E | 44.0*43.0*25.5 | 15.0mH | 5.5A | - | ||
| FACM31H1-202Y11R0 | 44.0*43.0*25.5 | 2.0mH | 11.0A | - | ||
| FACM31H1-202Y11R0E | 44.0*43.0*25.5 | 2.0mH | 11.0A | - | ||
| FACM31H1-203Y4R5 | 44.0*43.0*25.5 | 20.0mH | 4.5A | - | ||
| FACM31H1-203Y4R5E | 44.0*43.0*25.5 | 20.0mH | 4.5A | - | ||
| FACM31H1-252Y10R0 | 44.0*43.0*25.5 | 2.5mH | 10.0A | - | ||
| FACM31H1-252Y10R0E | 44.0*43.0*25.5 | 2.5mH | 10.0A | - | ||
| FACM31H1-272Y9R0 | 44.0*43.0*25.5 | 2.7mH | 9.0A | - | ||
| FACM31H1-272Y9R0E | 44.0*43.0*25.5 | 2.7mH | 9.0A | - | ||
| FACM31H1-273Y4R0 | 44.0*43.0*25.5 | 27.0mH | 4.0A | - | ||
| FACM31H1-273Y4R0E | 44.0*43.0*25.5 | 27.0mH | 4.0A | - | ||
| FACM31H1-332Y8R0 | 44.0*43.0*25.5 | 3.3mH | 8.0A | - | ||
| FACM31H1-332Y8R0E | 44.0*43.0*25.5 | 3.3mH | 8.0A | - | ||
| FACM31H1-333Y3R5 | 44.0*43.0*25.5 | 33.0mH | 3.5A | - | ||
| FACM31H1-333Y3R5E | 44.0*43.0*25.5 | 33.0mH | 3.5A | - | ||
| FACM31H1-472Y7R5 | 44.0*43.0*25.5 | 4.7mH | 7.5A | - | ||
| FACM31H1-472Y7R5E | 44.0*43.0*25.5 | 4.7mH | 7.5A | - | ||
| FACM31H1-473Y3R0 | 44.0*43.0*25.5 | 47.0mH | 3.0A | - | ||
| FACM31H1-473Y3R0E | 44.0*43.0*25.5 | 47.0mH | 3.0A | - | ||
| FACM31H1-562Y8R0 | 44.0*43.0*25.5 | 5.6mH | 8.0A | - | ||
| FACM31H1-562Y8R0E | 44.0*43.0*25.5 | 5.6mH | 8.0A | - | ||
| FACM31H1-563Y2R5 | 44.0*43.0*25.5 | 56.0mH | 2.5A | - | ||
| FACM31H1-563Y2R5E | 44.0*43.0*25.5 | 56.0mH | 2.5A | - | ||
| FACM31H1-682Y7R0 | 44.0*43.0*25.5 | 6.8mH | 7.0A | - | ||
| FACM31H1-682Y7R0E | 44.0*43.0*25.5 | 6.8mH | 7.0A | - | ||
| FACM31H1-683Y2R3 | 44.0*43.0*25.5 | 68.0mH | 2.3A | - | ||
| FACM31H1-683Y2R3E | 44.0*43.0*25.5 | 68.0mH | 2.3A | - | ||
| FACM31H1-822Y7R0 | 44.0*43.0*25.5 | 8.2mH | 7.0A | - | ||
| FACM31H1-822Y7R0E | 44.0*43.0*25.5 | 8.2mH | 7.0A | - | ||
| FACM31H1-823Y2R0 | 44.0*43.0*25.5 | 82.0mH | 2.0A | - | ||
| FACM31H1-823Y2R0E | 44.0*43.0*25.5 | 82.0mH | 2.0A | - | ||
| FACM31H2 | 44.0*43.0*25.5 | 1.0mH-100mH | 1.5A-15.0A | - | - | - |
| FACM31H2-102Y15R0 | 44.0*43.0*25.5 | 1.0mH | 15.0A | - | ||
| FACM31H2-102Y15R0E | 44.0*43.0*25.5 | 1.0mH | 15.0A | - | ||
| FACM31H2-103Y6R0 | 44.0*43.0*25.5 | 10.0mH | 6.0A | - | ||
| FACM31H2-103Y6R0E | 44.0*43.0*25.5 | 10.0mH | 6.0A | - | ||
| FACM31H2-104Y1R5 | 44.0*43.0*25.5 | 100.0mH | 1.5A | - | ||
| FACM31H2-104Y1R5E | 44.0*43.0*25.5 | 100.0mH | 1.5A | - | ||
| FACM31H2-152Y15R0 | 44.0*43.0*25.5 | 1.5mH | 15.0A | - | ||
| FACM31H2-152Y15R0E | 44.0*43.0*25.5 | 1.5mH | 15.0A | - | ||
| FACM31H2-153Y5R5 | 44.0*43.0*25.5 | 15.0mH | 5.5A | - | ||
| FACM31H2-153Y5R5E | 44.0*43.0*25.5 | 15.0mH | 5.5A | - | ||
| FACM31H2-202Y11R0 | 44.0*43.0*25.5 | 2.0mH | 11.0A | - | ||
| FACM31H2-202Y11R0E | 44.0*43.0*25.5 | 2.0mH | 11.0A | - | ||
| FACM31H2-203Y4R5 | 44.0*43.0*25.5 | 20.0mH | 4.5A | - | ||
| FACM31H2-203Y4R5E | 44.0*43.0*25.5 | 20.0mH | 4.5A | - | ||
| FACM31H2-252Y10R0 | 44.0*43.0*25.5 | 2.5mH | 10.0A | - | ||
| FACM31H2-252Y10R0E | 44.0*43.0*25.5 | 2.5mH | 10.0A | - | ||
| FACM31H2-272Y9R0 | 44.0*43.0*25.5 | 2.7mH | 9.0A | - | ||
| FACM31H2-272Y9R0E | 44.0*43.0*25.5 | 2.7mH | 9.0A | - | ||
| FACM31H2-273Y4R0 | 44.0*43.0*25.5 | 27.0mH | 4.0A | - | ||
| FACM31H2-273Y4R0E | 44.0*43.0*25.5 | 27.0mH | 4.0A | - | ||
| FACM31H2-332Y8R0 | 44.0*43.0*25.5 | 3.3mH | 8.0A | - | ||
| FACM31H2-332Y8R0E | 44.0*43.0*25.5 | 3.3mH | 8.0A | - | ||
| FACM31H2-333Y3R5 | 44.0*43.0*25.5 | 33.0mH | 3.5A | - | ||
| FACM31H2-333Y3R5E | 44.0*43.0*25.5 | 33.0mH | 3.5A | - | ||
| FACM31H2-472Y7R5 | 44.0*43.0*25.5 | 4.7mH | 7.5A | - | ||
| FACM31H2-472Y7R5E | 44.0*43.0*25.5 | 4.7mH | 7.5A | - | ||
| FACM31H2-473Y3R0 | 44.0*43.0*25.5 | 47.0mH | 3.0A | - | ||
| FACM31H2-473Y3R0E | 44.0*43.0*25.5 | 47.0mH | 3.0A | - | ||
| FACM31H2-562Y8R0 | 44.0*43.0*25.5 | 5.6mH | 8.0A | - | ||
| FACM31H2-562Y8R0E | 44.0*43.0*25.5 | 5.6mH | 8.0A | - | ||
| FACM31H2-563Y2R5 | 44.0*43.0*25.5 | 56.0mH | 2.5A | - | ||
| FACM31H2-563Y2R5E | 44.0*43.0*25.5 | 56.0mH | 2.5A | - | ||
| FACM31H2-682Y7R0 | 44.0*43.0*25.5 | 6.8mH | 7.0A | - | ||
| FACM31H2-682Y7R0E | 44.0*43.0*25.5 | 6.8mH | 7.0A | - | ||
| FACM31H2-683Y2R3 | 44.0*43.0*25.5 | 68.0mH | 2.3A | - | ||
| FACM31H2-683Y2R3E | 44.0*43.0*25.5 | 68.0mH | 2.3A | - | ||
| FACM31H2-822Y7R0 | 44.0*43.0*25.5 | 8.2mH | 7.0A | - | ||
| FACM31H2-822Y7R0E | 44.0*43.0*25.5 | 8.2mH | 7.0A | - | ||
| FACM31H2-823Y2R0 | 44.0*43.0*25.5 | 82.0mH | 2.0A | - | ||
| FACM31H2-823Y2R0E | 44.0*43.0*25.5 | 82.0mH | 2.0A | - | ||
| FACM31V1 | 43.0*29.0*46.0 | 1.0mH-100mH | 1.5A-15.0A | - | - | - |
| FACM31V1-102Y15R0 | 43.0*29.0*46.0 | 1.0mH | 15.0A | - | ||
| FACM31V1-102Y15R0E | 43.0*29.0*46.0 | 1.0mH | 15.0A | - | ||
| FACM31V1-103Y6R0 | 43.0*29.0*46.0 | 10.0mH | 6.0A | - | ||
| FACM31V1-103Y6R0E | 43.0*29.0*46.0 | 10.0mH | 6.0A | - | ||
| FACM31V1-104Y1R5 | 43.0*29.0*46.0 | 100.0mH | 1.5A | - | ||
| FACM31V1-104Y1R5E | 43.0*29.0*46.0 | 100.0mH | 1.5A | - | ||
| FACM31V1-152Y15R0 | 43.0*29.0*46.0 | 1.5mH | 15.0A | - | ||
| FACM31V1-152Y15R0E | 43.0*29.0*46.0 | 1.5mH | 15.0A | - | ||
| FACM31V1-153Y5R5 | 43.0*29.0*46.0 | 15.0mH | 5.5A | - | ||
| FACM31V1-153Y5R5E | 43.0*29.0*46.0 | 15.0mH | 5.5A | - | ||
| FACM31V1-202Y11R0 | 43.0*29.0*46.0 | 2.0mH | 11.0A | - | ||
| FACM31V1-202Y11R0E | 43.0*29.0*46.0 | 2.0mH | 11.0A | - | ||
| FACM31V1-203Y4R5 | 43.0*29.0*46.0 | 20.0mH | 4.5A | - | ||
| FACM31V1-203Y4R5E | 43.0*29.0*46.0 | 20.0mH | 4.5A | - | ||
| FACM31V1-252Y10R0 | 43.0*29.0*46.0 | 2.5mH | 10.0A | - | ||
| FACM31V1-252Y10R0E | 43.0*29.0*46.0 | 2.5mH | 10.0A | - | ||
| FACM31V1-272Y9R0 | 43.0*29.0*46.0 | 2.7mH | 9.0A | - | ||
| FACM31V1-272Y9R0E | 43.0*29.0*46.0 | 2.7mH | 9.0A | - | ||
| FACM31V1-273Y4R0 | 43.0*29.0*46.0 | 27.0mH | 4.0A | - | ||
| FACM31V1-273Y4R0E | 43.0*29.0*46.0 | 27.0mH | 4.0A | - | ||
| FACM31V1-332Y8R0 | 43.0*29.0*46.0 | 3.3mH | 8.0A | - | ||
| FACM31V1-332Y8R0E | 43.0*29.0*46.0 | 3.3mH | 8.0A | - | ||
| FACM31V1-333Y3R5 | 43.0*29.0*46.0 | 33.0mH | 3.5A | - | ||
| FACM31V1-333Y3R5E | 43.0*29.0*46.0 | 33.0mH | 3.5A | - | ||
| FACM31V1-472Y7R5 | 43.0*29.0*46.0 | 4.7mH | 7.5A | - | ||
| FACM31V1-472Y7R5E | 43.0*29.0*46.0 | 4.7mH | 7.5A | - | ||
| FACM31V1-473Y3R0 | 43.0*29.0*46.0 | 47.0mH | 3.0A | - | ||
| FACM31V1-473Y3R0E | 43.0*29.0*46.0 | 47.0mH | 3.0A | - | ||
| FACM31V1-562Y8R0 | 43.0*29.0*46.0 | 5.6mH | 8.0A | - | ||
| FACM31V1-562Y8R0E | 43.0*29.0*46.0 | 5.6mH | 8.0A | - | ||
| FACM31V1-563Y2R5 | 43.0*29.0*46.0 | 56.0mH | 2.5A | - | ||
| FACM31V1-563Y2R5E | 43.0*29.0*46.0 | 56.0mH | 2.5A | - | ||
| FACM31V1-682Y7R0 | 43.0*29.0*46.0 | 6.8mH | 7.0A | - | ||
| FACM31V1-682Y7R0E | 43.0*29.0*46.0 | 6.8mH | 7.0A | - | ||
| FACM31V1-683Y2R3 | 43.0*29.0*46.0 | 68.0mH | 2.3A | - | ||
| FACM31V1-683Y2R3E | 43.0*29.0*46.0 | 68.0mH | 2.3A | - | ||
| FACM31V1-822Y7R0 | 43.0*29.0*46.0 | 8.2mH | 7.0A | - | ||
| FACM31V1-822Y7R0E | 43.0*29.0*46.0 | 8.2mH | 7.0A | - | ||
| FACM31V1-823Y2R0 | 43.0*29.0*46.0 | 82.0mH | 2.0A | - | ||
| FACM31V1-823Y2R0E | 43.0*29.0*46.0 | 82.0mH | 2.0A | - | ||
| FACM31V2 | 43.0*29.0*46.0 | 1.0mH-100mH | 1.5A-15.0A | - | - | - |
| FACM31V2-102Y15R0 | 43.0*29.0*46.0 | 1.0mH | 15.0A | - | ||
| FACM31V2-102Y15R0E | 43.0*29.0*46.0 | 1.0mH | 15.0A | - | ||
| FACM31V2-103Y6R0 | 43.0*29.0*46.0 | 10.0mH | 6.0A | - | ||
| FACM31V2-103Y6R0E | 43.0*29.0*46.0 | 10.0mH | 6.0A | - | ||
| FACM31V2-104Y1R5 | 43.0*29.0*46.0 | 100.0mH | 1.5A | - | ||
| FACM31V2-104Y1R5E | 43.0*29.0*46.0 | 100.0mH | 1.5A | - | ||
| FACM31V2-152Y15R0 | 43.0*29.0*46.0 | 1.5mH | 15.0A | - | ||
| FACM31V2-152Y15R0E | 43.0*29.0*46.0 | 1.5mH | 15.0A | - | ||
| FACM31V2-153Y5R5 | 43.0*29.0*46.0 | 15.0mH | 5.5A | - | ||
| FACM31V2-153Y5R5E | 43.0*29.0*46.0 | 15.0mH | 5.5A | - | ||
| FACM31V2-202Y11R0 | 43.0*29.0*46.0 | 2.0mH | 11.0A | - | ||
| FACM31V2-202Y11R0E | 43.0*29.0*46.0 | 2.0mH | 11.0A | - | ||
| FACM31V2-203Y4R5 | 43.0*29.0*46.0 | 20.0mH | 4.5A | - | ||
| FACM31V2-203Y4R5E | 43.0*29.0*46.0 | 20.0mH | 4.5A | - | ||
| FACM31V2-252Y10R0 | 43.0*29.0*46.0 | 2.5mH | 10.0A | - | ||
| FACM31V2-252Y10R0E | 43.0*29.0*46.0 | 2.5mH | 10.0A | - | ||
| FACM31V2-272Y9R0 | 43.0*29.0*46.0 | 2.7mH | 9.0A | - | ||
| FACM31V2-272Y9R0E | 43.0*29.0*46.0 | 2.7mH | 9.0A | - | ||
| FACM31V2-273Y4R0 | 43.0*29.0*46.0 | 27.0mH | 4.0A | - | ||
| FACM31V2-273Y4R0E | 43.0*29.0*46.0 | 27.0mH | 4.0A | - | ||
| FACM31V2-332Y8R0 | 43.0*29.0*46.0 | 3.3mH | 8.0A | - | ||
| FACM31V2-332Y8R0E | 43.0*29.0*46.0 | 3.3mH | 8.0A | - | ||
| FACM31V2-333Y3R5 | 43.0*29.0*46.0 | 33.0mH | 3.5A | - | ||
| FACM31V2-333Y3R5E | 43.0*29.0*46.0 | 33.0mH | 3.5A | - | ||
| FACM31V2-472Y7R5 | 43.0*29.0*46.0 | 4.7mH | 7.5A | - | ||
| FACM31V2-472Y7R5E | 43.0*29.0*46.0 | 4.7mH | 7.5A | - | ||
| FACM31V2-473Y3R0 | 43.0*29.0*46.0 | 47.0mH | 3.0A | - | ||
| FACM31V2-473Y3R0E | 43.0*29.0*46.0 | 47.0mH | 3.0A | - | ||
| FACM31V2-562Y8R0 | 43.0*29.0*46.0 | 5.6mH | 8.0A | - | ||
| FACM31V2-562Y8R0E | 43.0*29.0*46.0 | 5.6mH | 8.0A | - | ||
| FACM31V2-563Y2R5 | 43.0*29.0*46.0 | 56.0mH | 2.5A | - | ||
| FACM31V2-563Y2R5E | 43.0*29.0*46.0 | 56.0mH | 2.5A | - | ||
| FACM31V2-682Y7R0 | 43.0*29.0*46.0 | 6.8mH | 7.0A | - | ||
| FACM31V2-682Y7R0E | 43.0*29.0*46.0 | 6.8mH | 7.0A | - | ||
| FACM31V2-683Y2R3 | 43.0*29.0*46.0 | 68.0mH | 2.3A | - | ||
| FACM31V2-683Y2R3E | 43.0*29.0*46.0 | 68.0mH | 2.3A | - | ||
| FACM31V2-822Y7R0 | 43.0*29.0*46.0 | 8.2mH | 7.0A | - | ||
| FACM31V2-822Y7R0E | 43.0*29.0*46.0 | 8.2mH | 7.0A | - | ||
| FACM31V2-823Y2R0 | 43.0*29.0*46.0 | 82.0mH | 2.0A | - | ||
| FACM31V2-823Y2R0E | 43.0*29.0*46.0 | 82.0mH | 2.0A | - |
* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
| Series |
