Alloy core-Metal soft magnetic core_Iron Powder Core_KT201-40

KT201-40

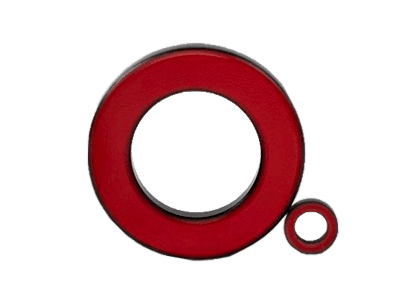

*The picture is for reference only, please refer to the actual product/technical specification for specific parameters

Alloy core-Metal soft magnetic core

  • 型号:KT201-40
  • Coating ID (mm): 50.8
  • Coating OD (mm): 24.1
  • Coating HT (mm): 22.2
  • Without coating HT (mm): —
  • Without coating ID (mm): —
  • Without coating OD (mm): —
  • Ae(cm2): 2.81
  • le(cm): 11.8
  • V(cm3): 33.2
  • W(cm2): —
  • Perm.(μ): —
  • Al(nH/N2): 194
