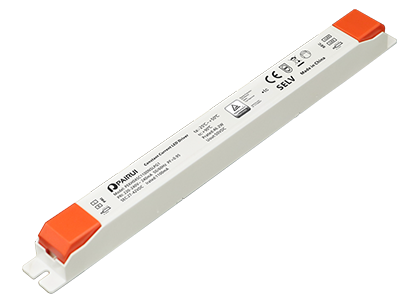

Plastic housing External slim type

PEKH(25-45W)
Click to expand the criteria search box
  • Product number

  • {/php}
  • Rated power(W)

  • Output current(mA)

  • Output voltage(V)

  • PF

  • Ripple

Plastic housing External slim type Filter Models: 5 in total, please see the table below.

Series Rated power(W) Input voltage(V) Output current(mA) Output voltage(V) PF Efficiency Certificate Spec. Sample Application
PEKH025CxxxxNSLPG1
25 220-240 300-600 - 0.95 - -
-
PEKH025C0300NSLPG1
25 220-240 300 50-76 0.95 86.0% SAA CCC TUV CE
PEKH025C0400NSLPG1
25 220-240 400 40-55 0.95 86.0% SAA CCC TUV CE
PEKH025C0450NSLPG1
25 220-240 450 40-55 0.95 86.0% SAA CCC TUV CE
PEKH025C0500NSLPG1
25 220-240 500 27-42 0.95 86.0% SAA CCC TUV CE
PEKH025C0550NSLPG1
25 220-240 550 27-42 0.95 86.0% SAA CCC TUV CE
PEKH025C0600NSLPG1
25 220-240 600 27-42 0.95 86.0% SAA CCC TUV CE
PEKH030CxxxxNSLPG1
30 220-240 300-700 - 0.95 - -
-
PEKH030C0300NSLPG1
30 220-240 300 70-95 0.95 86.0% SAA CCC TUV CE
PEKH030C0350NSLPG1
30 220-240 350 50-76 0.95 86.0% SAA CCC TUV CE
PEKH030C0400NSLPG1
30 220-240 400 50-76 0.95 86.0% SAA CCC TUV CE
PEKH030C0500NSLPG1
30 220-240 500 40-55 0.95 86.0% SAA CCC TUV CE
PEKH030C0550NSLPG1
30 220-240 550 40-55 0.95 86.0% SAA CCC TUV CE
PEKH030C0650NSLPG1
30 220-240 650 27-42 0.95 86.0% SAA CCC TUV CE
PEKH030C0700NSLPG1
30 220-240 700 27-42 0.95 86.0% SAA CCC TUV CE
PEKH035CxxxxNSLPG1
35 220-240 350-800 - 0.95 - -
-
PEKH035C0350NSLPG1
35 220-240 350 70-95 0.95 87.0% SAA CCC TUV CE
PEKH035C0450NSLPG1
35 220-240 450 50-76 0.95 87.0% SAA CCC TUV CE
PEKH035C0600NSLPG1
35 220-240 600 40-55 0.95 87.0% SAA CCC TUV CE
PEKH035C0730NSLPG1
35 220-240 730 27-42 0.95 87.0% SAA CCC TUV CE
PEKH035C0750NSLPG1
35 220-240 750 27-42 0.95 87.0% SAA CCC TUV CE
PEKH035C0760NSLPG1
35 220-240 760 27-42 0.95 87.0% SAA CCC TUV CE
PEKH035C0800NSLPG1
35 220-240 800 27-42 0.95 87.0% SAA CCC TUV CE
PEKH040CxxxxNSLPG1
40 220-240 400-950 - 0.95 - -
-
PEKH040C0400NSLPG1
40 220-240 400 70-95 0.95 87.0% SAA CCC TUV CE
PEKH040C0500NSLPG1
40 220-240 500 50-76 0.95 87.0% SAA CCC TUV CE
PEKH040C0650NSLPG1
40 220-240 650 40-55 0.95 87.0% SAA CCC TUV CE
PEKH040C0700NSLPG1
40 220-240 700 40-55 0.95 87.0% SAA CCC TUV CE
PEKH040C0850NSLPG1
40 220-240 850 27-42 0.95 87.0% SAA CCC TUV CE
PEKH040C0900NSLPG1
40 220-240 900 27-42 0.95 87.0% SAA CCC TUV CE
PEKH040C0950NSLPG1
40 220-240 950 27-42 0.95 87.0% SAA CCC TUV CE
PEKH045CxxxxNSLPG1
45 220-240 550-1100 - 0.95 - -
-
PEKH045C0550NSLPG1
45 220-240 550 50-76 0.95 87.0% SAA CCC TUV CE
PEKH045C0750NSLPG1
45 220-240 750 40-55 0.95 87.0% SAA CCC TUV CE
PEKH045C0950NSLPG1
45 220-240 950 30-45 0.95 87.0% SAA CCC TUV CE
PEKH045C1000NSLPG1
45 220-240 1000 27-42 0.95 87.0% SAA CCC TUV CE
PEKH045C1050NSLPG1
45 220-240 1050 27-42 0.95 87.0% SAA CCC TUV CE
PEKH045C1100NSLPG1
45 220-240 1100 27-42 0.95 87.0% SAA CCC TUV CE

* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
