TIS Three-Phase Dedicated

TIS240
TIS480
TIS960
Click to expand the criteria search box
  • Product number

  • {/php}
  • Rated power(W)

  • Output voltage(V)

  • Output current(A)

  • PFC function

  • DC-OK

TIS Three-Phase Dedicated Filter Models: 3 in total, please see the table below.

Series Rated power(W) Input voltage(V) Output current(A) Output voltage(V) Efficiency Certificate Spec. Sample Application
TIS240
240W 340-550V - 24V 48V - -
-

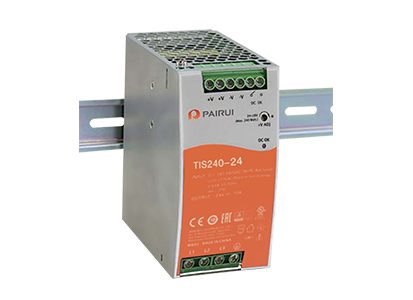

TIS240-24
240W 340-550V 10.00A 24V 92.0% UL CB CE CUL
TIS240-48
240W 340-550V 5.00A 48V 92.0% UL CB CE CUL
TIS480
480W 340-550V - 24V 48V - -
-

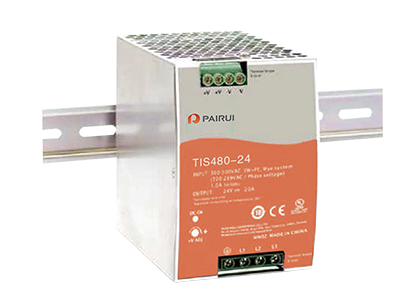

TIS480-24
480W 340-550V 20.00A 24V 92.5% UL CB CE CUL
TIS480-48
480W 340-550V 10.00A 48V 93.0% UL CB CE CUL
TIS960
960W 340-550V - 24V 48V - -
-

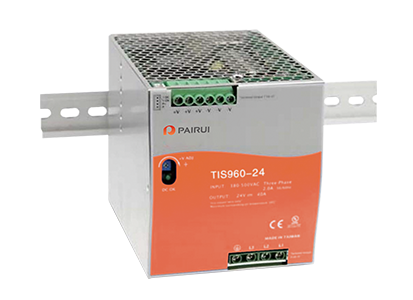

TIS960-24
960W 340-550V 40.00A 24V 94.0% UL CB CE CUL
TIS960-48
960W 340-550V 20.00A 48V 94.5% UL CB CE CUL

* The above product parameters are for reference only, please refer to the technical specifications for detailed technical parameters
