DC-DC Module

Loading

Lateral swipe →
Series Rated power(W) Input voltage(V) Output voltage(V) Output current(mA) Dimension (mm) Efficiency Spec. Sample Application

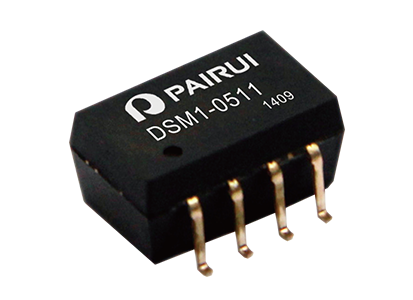

DSM-1
1.00 3.3-15(±10%) 3.3-15,±5-±15 - 12.7x7.5x6.25 -
-
DSM1-0310
1.00 3.3(3.0~3.6) 3.30 300 12.7x7.5x6.25 60.0%
DSM1-1524
1.00 15(13.5~16.5) 15.00 67 12.7x7.5x6.25 72.0%
DSM1-1521
1.00 15(13.5~16.5) 15.00 67 12.7x7.5x6.25 72.0%
DSM1-0311
1.00 3.3(3.0~3.6) 5.00 200 12.7x7.5x6.25 68.0%
DSM1-0312
1.00 3.3(3.0~3.6) 9.00 111 12.7x7.5x6.25 66.0%
DSM1-0313
1.00 3.3(3.0~3.6) 12.00 83 12.7x7.5x6.25 77.0%
DSM1-0314
1.00 3.3(3.0~3.6) 15.00 67 12.7x7.5x6.25 73.0%
DSM1-0321
1.00 3.3(3.0~3.6) ±5 100 12.7x7.5x6.25 70.0%
DSM1-0323
1.00 3.3(3.0~3.6) ±12 42 12.7x7.5x6.25 74.0%
DSM1-0324
1.00 3.3(3.0~3.6) ±15 33 12.7x7.5x6.25 77.0%
DSM1-0510
1.00 5(4.5-5.5) 3.30 300 12.7x7.5x6.25 60.0%
DSM1-0511
1.00 5(4.5-5.5) 5.00 200 12.7x7.5x6.25 68.0%
DSM1-0512
1.00 5(4.5-5.5) 9.00 111 12.7x7.5x6.25 76.0%
DSM1-0513
1.00 5(4.5-5.5) 12.00 83 12.7x7.5x6.25 78.0%
DSM1-0514
1.00 5(4.5-5.5) 15.00 67 12.7x7.5x6.25 78.0%
DSM1-0521
1.00 5(4.5-5.5) ±5 100 12.7x7.5x6.25 70.0%
DSM1-0522
1.00 5(4.5-5.5) ±9 56 12.7x7.5x6.25 73.0%
DSM1-0523
1.00 5(4.5-5.5) ±12 42 12.7x7.5x6.25 77.0%
DSM1-0524
1.00 5(4.5-5.5) ±15 33 12.7x7.5x6.25 78.0%
DSM1-1210
1.00 12(10.8~13.2) 3.30 300 12.7x7.5x6.25 60.0%
DSM1-1211
1.00 12(10.8~13.2) 5.00 200 12.7x7.5x6.25 68.0%
DSM1-1212
1.00 12(10.8~13.2) 9.00 111 12.7x7.5x6.25 73.0%
DSM1-1213
1.00 12(10.8~13.2) 12.00 83 12.7x7.5x6.25 80.0%
DSM1-1214
1.00 12(10.8~13.2) 15.00 67 12.7x7.5x6.25 81.0%
DSM1-1222
1.00 12(10.8~13.2) ±9 56 12.7x7.5x6.25 73.0%
DSM1-1223
1.00 12(10.8~13.2) ±12 42 12.7x7.5x6.25 73.0%
DSM1-1510
1.00 15(13.5~16.5) 3.30 300 12.7x7.5x6.25 60.0%
DSM1-1511
1.00 15(13.5~16.5) 5.00 200 12.7x7.5x6.25 70.0%
DSM1-1512
1.00 15(13.5~16.5) 9.00 111 12.7x7.5x6.25 71.0%
DSM1-1513
1.00 15(13.5~16.5) 12.00 83 12.7x7.5x6.25 72.0%
DSM1-1514
1.00 15(13.5~16.5) 15.00 67 12.7x7.5x6.25 72.0%
DSM1-1221
1.00 15(13.5~16.5) ±5 100 12.7x7.5x6.25 70.0%
DSM1-1224
1.00 15(13.5~16.5) ±15 33 12.7x7.5x6.25 78.0%
DTM-1
1.00 3.3-24(±10%) 3.3-15,±5-±15 - 12.7x7.5x6.25 -
-
DTM1-0310
1.00 3.3(3.0~3.6) 3.30 300 12.7x7.5x6.25 60.0%
DTM1-0311
1.00 3.3(3.0~3.6) 5.00 200 12.7x7.5x6.25 68.0%
DTM1-0312
1.00 3.3(3.0~3.6) 9.00 111 12.7x7.5x6.25 76.0%
DTM1-0313
1.00 3.3(3.0~3.6) 12.00 83 12.7x7.5x6.25 77.0%
DTM1-0314
1.00 3.3(3.0~3.6) 15.00 67 12.7x7.5x6.25 78.0%
DTM1-0321
1.00 3.3(3.0~3.6) ±5 100 12.7x7.5x6.25 70.0%
DTM1-0322
1.00 3.3(3.0~3.6) ±9 56 12.7x7.5x6.25 73.0%
DTM1-0323
1.00 3.3(3.0~3.6) ±12 42 12.7x7.5x6.25 78.0%
DTM1-0324
1.00 3.3(3.0~3.6) ±15 33 12.7x7.5x6.25 79.0%
DTM1-0510
1.00 5(4.5-5.5) 3.30 300 12.7x7.5x6.25 60.0%
DTM1-0511
1.00 5(4.5-5.5) 5.00 200 12.7x7.5x6.25 70.0%
DTM1-0512
1.00 5(4.5-5.5) 9.00 111 12.7x7.5x6.25 76.0%
DTM1-0513
1.00 5(4.5-5.5) 12.00 83 12.7x7.5x6.25 78.0%
DTM1-0514
1.00 5(4.5-5.5) 15.00 67 12.7x7.5x6.25 78.0%
DTM1-0521
1.00 5(4.5-5.5) ±5 100 12.7x7.5x6.25 70.0%
DTM1-0522
1.00 5(4.5-5.5) ±9 56 12.7x7.5x6.25 73.0%
DTM1-0523
1.00 5(4.5-5.5) ±12 42 12.7x7.5x6.25 77.0%
DTM1-0524
1.00 5(4.5-5.5) ±15 33 12.7x7.5x6.25 78.0%
DTM1-1210
1.00 12(10.8~13.2) 3.30 300 12.7x7.5x6.25 60.0%
DTM1-1211
1.00 12(10.8~13.2) 5.00 200 12.7x7.5x6.25 71.0%
DTM1-1212
1.00 12(10.8~13.2) 9.00 111 12.7x7.5x6.25 73.0%
DTM1-1213
1.00 12(10.8~13.2) 12.00 83 12.7x7.5x6.25 80.0%
DTM1-1214
1.00 12(10.8~13.2) 15.00 67 12.7x7.5x6.25 81.0%
DTM1-1221
1.00 12(10.8~13.2) ±5 100 12.7x7.5x6.25 70.0%
DTM1-1222
1.00 12(10.8~13.2) ±9 56 12.7x7.5x6.25 73.0%
DTM1-1223
1.00 12(10.8~13.2) ±12 42 12.7x7.5x6.25 77.0%
DTM1-1224
1.00 12(10.8~13.2) ±15 33 12.7x7.5x6.25 78.0%
DTM1-1511
1.00 15(13.5~16.5) 5.00 200 12.7x7.5x6.25 70.0%
DTM1-1514
1.00 15(13.5~16.5) 15.00 67 12.7x7.5x6.25 80.0%
DTM1-2411
1.00 24(21.6~26.4) 5.00 200 12.7x7.5x6.25 70.0%
DTM-1F
1.00 3.3-12(±10%) 3.3-15,±5-±15 - 15.24x7.5x8.5 -
-
DTM1-0310F
1.00 3.3(3.0~3.6) 3.30 300 15.24x7.5x8.5 60.0%
DTM1-0311F
1.00 3.3(3.0~3.6) 5.00 200 15.24x7.5x8.5 68.0%
DTM1-0312F
1.00 3.3(3.0~3.6) 9.00 111 15.24x7.5x8.5 76.0%
DTM1-0313F
1.00 3.3(3.0~3.6) 12.00 83 15.24x7.5x8.5 77.0%
DTM1-0314F
1.00 3.3(3.0~3.6) 15.00 67 15.24x7.5x8.5 78.0%
DTM1-0321F
1.00 3.3(3.0~3.6) ±5 100 15.24x7.5x8.5 70.0%
DTM1-0322F
1.00 3.3(3.0~3.6) ±9 56 15.24x7.5x8.5 73.0%
DTM1-0323F
1.00 3.3(3.0~3.6) ±12 42 15.24x7.5x8.5 78.0%
DTM1-0324F
1.00 3.3(3.0~3.6) ±15 33 15.24x7.5x8.5 79.0%
DTM1-0510F
1.00 5(4.5-5.5) 3.30 300 15.24x7.5x8.5 60.0%
DTM1-0511F
1.00 5(4.5-5.5) 5.00 200 15.24x7.5x8.5 70.0%
DTM1-0512F
1.00 5(4.5-5.5) 9.00 111 15.24x7.5x8.5 76.0%
DTM1-0513F
1.00 5(4.5-5.5) 12.00 83 15.24x7.5x8.5 78.0%
DTM1-0514F
1.00 5(4.5-5.5) 15.00 67 15.24x7.5x8.5 78.0%
DTM1-0521F
1.00 5(4.5-5.5) ±5 100 15.24x7.5x8.5 70.0%
DTM1-0522F
1.00 5(4.5-5.5) ±9 56 15.24x7.5x8.5 73.0%
DTM1-0523F
1.00 5(4.5-5.5) ±12 42 15.24x7.5x8.5 77.0%
DTM1-0524F
1.00 5(4.5-5.5) ±15 33 15.24x7.5x8.5 78.0%
DTM1-1210F
1.00 12(10.8~13.2) 3.30 300 15.24x7.5x8.5 60.0%
DTM1-1211F
1.00 12(10.8~13.2) 5.00 200 15.24x7.5x8.5 71.0%
DTM1-1212F
1.00 12(10.8~13.2) 9.00 111 15.24x7.5x8.5 73.0%
DTM1-1213F
1.00 12(10.8~13.2) 12.00 83 15.24x7.5x8.5 80.0%
DTM1-1214F
1.00 12(10.8~13.2) 15.00 67 15.24x7.5x8.5 81.0%
DTM1-1221F
1.00 12(10.8~13.2) ±5 100 15.24x7.5x8.5 70.0%
DTM1-1222F
1.00 12(10.8~13.2) ±9 56 15.24x7.5x8.5 73.0%
DTM1-1223F
1.00 12(10.8~13.2) ±12 42 15.24x7.5x8.5 77.0%
DTM1-1224F
1.00 12(10.8~13.2) ±15 33 15.24x7.5x8.5 78.0%
DAE-1
1.00 5-48(±10%) 3.3-24, ±3.3-±24,5/5-24/24 - 19.6x10.0x6.0 -
-
DAE1-0510
1.00 5(4.5~5.5) 3.30 300 19.6x10.0x6.0 72.0%
DAE1-0511
1.00 5(4.5~5.5) 5.00 200 19.6x10.0x6.0 70.0%
DAE1-0512
1.00 5(4.5~5.5) 9.00 110 19.6x10.0x6.0 78.0%
DAE1-0513
1.00 5(4.5~5.5) 12.00 83 19.6x10.0x6.0 78.0%
DAE1-0514
1.00 5(4.5~5.5) 15.00 68 19.6x10.0x6.0 80.0%
DAE1-0515
1.00 5(4.5~5.5) 24.00 42 19.6x10.0x6.0 81.0%
DAE1-0520
1.00 5(4.5~5.5) ±3.3 150 19.6x10.0x6.0 72.0%
DAE1-0521
1.00 5(4.5~5.5) ±5 100 19.6x10.0x6.0 72.0%
DAE1-0522
1.00 5(4.5~5.5) ±9 55 19.6x10.0x6.0 77.0%
DAE1-0523
1.00 5(4.5~5.5) ±12 40 19.6x10.0x6.0 79.0%
DAE1-0524
1.00 5(4.5~5.5) ±15 33 19.6x10.0x6.0 80.0%
DAE1-0525
1.00 5(4.5~5.5) ±24 21 19.6x10.0x6.0 81.0%
DAE1-0501
1.00 5(4.5~5.5) 5, 5 100 19.6x10.0x6.0 70.0%
DAE1-0502
1.00 5(4.5~5.5) 9, 9 55 19.6x10.0x6.0 76.0%
DAE1-0503
1.00 5(4.5~5.5) 12, 12 40 19.6x10.0x6.0 77.0%
DAE1-0504
1.00 5(4.5~5.5) 15, 15 33 19.6x10.0x6.0 78.0%
DAE1-0505
1.00 5(4.5~5.5) 24, 24 21 19.6x10.0x6.0 76.0%
DAE1-1210
1.00 12(10.8~13.2) 3.30 300 19.6x10.0x6.0 74.0%
DAE1-1211
1.00 12(10.8~13.2) 5.00 200 19.6x10.0x6.0 71.0%
DAE1-1212
1.00 12(10.8~13.2) 9.00 110 19.6x10.0x6.0 76.0%
DAE1-1213
1.00 12(10.8~13.2) 12.00 83 19.6x10.0x6.0 78.0%
DAE1-1214
1.00 12(10.8~13.2) 15.00 68 19.6x10.0x6.0 79.0%
DAE1-1215
1.00 12(10.8~13.2) 24.00 42 19.6x10.0x6.0 84.0%
DAE1-1220
1.00 12(10.8~13.2) ±3.3 150 19.6x10.0x6.0 72.0%
DAE1-1221
1.00 12(10.8~13.2) ±5 100 19.6x10.0x6.0 72.0%
DAE1-1222
1.00 12(10.8~13.2) ±9 55 19.6x10.0x6.0 78.0%
DAE1-1223
1.00 12(10.8~13.2) ±12 40 19.6x10.0x6.0 79.0%
DAE1-1224
1.00 12(10.8~13.2) ±15 33 19.6x10.0x6.0 78.0%
DAE1-1225
1.00 12(10.8~13.2) ±24 21 19.6x10.0x6.0 76.0%
DAE1-1201
1.00 12(10.8~13.2) 5, 5 100 19.6x10.0x6.0 72.0%
DAE1-1202
1.00 12(10.8~13.2) 9, 9 55 19.6x10.0x6.0 78.0%
DAE1-1203
1.00 12(10.8~13.2) 12, 12 40 19.6x10.0x6.0 78.0%
DAE1-1204
1.00 12(10.8~13.2) 15, 15 33 19.6x10.0x6.0 80.0%
DAE1-1205
1.00 12(10.8~13.2) 24, 24 21 19.6x10.0x6.0 72.0%
DAE1-1510
1.00 15(13.5~16.5) 3.30 300 19.6x10.0x6.0 72.0%
DAE1-1511
1.00 15(13.5~16.5) 5.00 200 19.6x10.0x6.0 72.0%
DAE1-1512
1.00 15(13.5~16.5) 9.00 110 19.6x10.0x6.0 74.0%
DAE1-1513
1.00 15(13.5~16.5) 12.00 83 19.6x10.0x6.0 76.0%
DAE1-1514
1.00 15(13.5~16.5) 15.00 68 19.6x10.0x6.0 75.0%
DAE1-1515
1.00 15(13.5~16.5) 24.00 42 19.6x10.0x6.0 72.0%
DAE1-1520
1.00 15(13.5~16.5) ±3.3 150 19.6x10.0x6.0 72.0%
DAE1-1521
1.00 15(13.5~16.5) ±5 100 19.6x10.0x6.0 72.0%
DAE1-1522
1.00 15(13.5~16.5) ±9 55 19.6x10.0x6.0 74.0%
DAE1-1523
1.00 15(13.5~16.5) ±12 40 19.6x10.0x6.0 76.0%
DAE1-1524
1.00 15(13.5~16.5) ±15 33 19.6x10.0x6.0 79.0%
DAE1-1525
1.00 15(13.5~16.5) ±24 21 19.6x10.0x6.0 78.0%
DAE1-1501
1.00 15(13.5~16.5) 5, 5 100 19.6x10.0x6.0 72.0%
DAE1-1502
1.00 15(13.5~16.5) 9, 9 55 19.6x10.0x6.0 78.0%
DAE1-1503
1.00 15(13.5~16.5) 12, 12 40 19.6x10.0x6.0 78.0%
DAE1-1504
1.00 15(13.5~16.5) 15, 15 33 19.6x10.0x6.0 80.0%
DAE1-1505
1.00 15(13.5~16.5) 24, 24 21 19.6x10.0x6.0 72.0%
DAE1-2410
1.00 24(21.6~26.4) 3.30 300 19.6x10.0x6.0 72.0%
DAE1-2411
1.00 24(21.6~26.4) 5.00 200 19.6x10.0x6.0 73.0%
DAE1-2412
1.00 24(21.6~26.4) 9.00 110 19.6x10.0x6.0 75.0%
DAE1-2413
1.00 24(21.6~26.4) 12.00 83 19.6x10.0x6.0 78.0%
DAE1-2414
1.00 24(21.6~26.4) 15.00 68 19.6x10.0x6.0 79.0%
DAE1-2415
1.00 24(21.6~26.4) 24.00 42 19.6x10.0x6.0 78.0%
DAE1-2420
1.00 24(21.6~26.4) ±3.3 150 19.6x10.0x6.0 72.0%
DAE1-2421
1.00 24(21.6~26.4) ±5 100 19.6x10.0x6.0 73.0%
DAE1-2422
1.00 24(21.6~26.4) ±9 55 19.6x10.0x6.0 79.0%
DAE1-2423
1.00 24(21.6~26.4) ±12 40 19.6x10.0x6.0 80.0%
DAE1-2424
1.00 24(21.6~26.4) ±15 33 19.6x10.0x6.0 80.0%
DAE1-2425
1.00 24(21.6~26.4) ±24 21 19.6x10.0x6.0 81.0%
DAE1-2401
1.00 24(21.6~26.4) 5, 5 100 19.6x10.0x6.0 71.0%
DAE1-2402
1.00 24(21.6~26.4) 9, 9 55 19.6x10.0x6.0 74.0%
DAE1-2403
1.00 24(21.6~26.4) 12, 12 40 19.6x10.0x6.0 76.0%
DAE1-2404
1.00 24(21.6~26.4) 15,  15 33 19.6x10.0x6.0 76.0%
DAE1-2405
1.00 24(21.6~26.4) 24, 24 21 19.6x10.0x6.0 72.0%
DAE1-4811
1.00 48(43.2~52.8) 5.00 200 19.6x10.0x6.0 72.0%
DAE1-4812
1.00 48(43.2~52.8) 9.00 110 19.6x10.0x6.0 74.0%
DAE1-4813
1.00 48(43.2~52.8) 12.00 83 19.6x10.0x6.0 76.0%
DAE1-4814
1.00 48(43.2~52.8) 15.00 68 19.6x10.0x6.0 76.0%
DAE1-4821
1.00 48(43.2~52.8) ±5 100 19.6x10.0x6.0 72.0%
DAE1-4822
1.00 48(43.2~52.8) ±9 55 19.6x10.0x6.0 74.0%
DAE1-4823
1.00 48(43.2~52.8) ±12 40 19.6x10.0x6.0 76.0%
DAE1-4824
1.00 48(43.2~52.8) ±15 33 19.6x10.0x6.0 74.0%
DAE-1F
1.00 5-24(±10%) 5-24, ±5-±24 - 19.6x10.0x6.0 -
-
DAE1-0511F
1.00 5(4.5~5.5) 5.00 200 19.6x10.0x6.0 70.0%
DAE1-0512F
1.00 5(4.5~5.5) 9.00 110 19.6x10.0x6.0 78.0%
DAE1-0513F
1.00 5(4.5~5.5) 12.00 83 19.6x10.0x6.0 78.0%
DAE1-0514F
1.00 5(4.5~5.5) 15.00 68 19.6x10.0x6.0 80.0%
DAE1-0515F
1.00 5(4.5~5.5) 24.00 42 19.6x10.0x6.0 81.0%
DAE1-0520F
1.00 5(4.5~5.5) ±3.3 150 19.6x10.0x6.0 72.0%
DAE1-0521F
1.00 5(4.5~5.5) ±5 100 19.6x10.0x6.0 72.0%
DAE1-0522F
1.00 5(4.5~5.5) ±9 55 19.6x10.0x6.0 77.0%
DAE1-0523F
1.00 5(4.5~5.5) ±12 40 19.6x10.0x6.0 79.0%
DAE1-0524F
1.00 5(4.5~5.5) ±15 33 19.6x10.0x6.0 80.0%
DAE1-0525F
1.00 5(4.5~5.5) ±24 21 19.6x10.0x6.0 81.0%
DAE1-1211F
1.00 12(10.8~13.2) 5.00 200 19.6x10.0x6.0 71.0%
DAE1-1212F
1.00 12(10.8~13.2) 9.00 110 19.6x10.0x6.0 76.0%
DAE1-1213F
1.00 12(10.8~13.2) 12.00 83 19.6x10.0x6.0 78.0%
DAE1-1214F
1.00 12(10.8~13.2) 15.00 68 19.6x10.0x6.0 79.0%
DAE1-1215F
1.00 12(10.8~13.2) 24.00 42 19.6x10.0x6.0 84.0%
DAE1-1221F
1.00 12(10.8~13.2) ±5 100 19.6x10.0x6.0 72.0%
DAE1-1222F
1.00 12(10.8~13.2) ±9 55 19.6x10.0x6.0 78.0%
DAE1-1223F
1.00 12(10.8~13.2) ±12 40 19.6x10.0x6.0 79.0%
DAE1-1224F
1.00 12(10.8~13.2) ±15 33 19.6x10.0x6.0 78.0%
DAE1-1225F
1.00 12(10.8~13.2) ±24 21 19.6x10.0x6.0 76.0%
DAE1-1511F
1.00 15(13.5~16.5) 5.00 200 19.6x10.0x6.0 72.0%
DAE1-1512F
1.00 15(13.5~16.5) 9.00 110 19.6x10.0x6.0 74.0%
DAE1-1513F
1.00 15(13.5~16.5) 12.00 83 19.6x10.0x6.0 76.0%
DAE1-1514F
1.00 15(13.5~16.5) 15.00 68 19.6x10.0x6.0 75.0%
DAE1-1515F
1.00 15(13.5~16.5) 24.00 42 19.6x10.0x6.0 72.0%
DAE1-2411F
1.00 24(21.6~26.4) 5.00 200 19.6x10.0x6.0 73.0%
DAE1-2412F
1.00 24(21.6~26.4) 9.00 110 19.6x10.0x6.0 75.0%
DAE1-2413F
1.00 24(21.6~26.4) 12.00 83 19.6x10.0x6.0 78.0%
DAE1-2414F
1.00 24(21.6~26.4) 15.00 68 19.6x10.0x6.0 79.0%
DAE1-2415F
1.00 24(21.6~26.4) 24.00 42 19.6x10.0x6.0 78.0%
DAE1-2421F
1.00 24(21.6~26.4) ±5 100 19.6x10.0x6.0 73.0%
DAE1-2422F
1.00 24(21.6~26.4) ±9 55 19.6x10.0x6.0 79.0%
DAE1-2423F
1.00 24(21.6~26.4) ±12 40 19.6x10.0x6.0 80.0%
DAE1-2424F
1.00 24(21.6~26.4) ±15 33 19.6x10.0x6.0 80.0%
DAE1-2425F
1.00 24(21.6~26.4) ±24 21 19.6x10.0x6.0 81.0%
DAE-1G
1.00 5-24(±10%) 5-24, ±5-±24 - 19.6x10.0x7.0 -
-
DAE1-0511G
1.00 5(4.5~5.5) 5.00 200 19.6x10.0x7.0 70.0%
DAE1-0512G
1.00 5(4.5~5.5) 9.00 110 19.6x10.0x7.0 78.0%
DAE1-0513G
1.00 5(4.5~5.5) 12.00 83 19.6x10.0x7.0 78.0%
DAE1-0514G
1.00 5(4.5~5.5) 15.00 68 19.6x10.0x7.0 80.0%
DAE1-0515G
1.00 5(4.5~5.5) 24.00 42 19.6x10.0x7.0 81.0%
DAE1-0520G
1.00 5(4.5~5.5) ±3.3 150 19.6x10.0x7.0 72.0%
DAE1-0521G
1.00 5(4.5~5.5) ±5 100 19.6x10.0x7.0 72.0%
DAE1-0522G
1.00 5(4.5~5.5) ±9 55 19.6x10.0x7.0 77.0%
DAE1-0523G
1.00 5(4.5~5.5) ±12 40 19.6x10.0x7.0 79.0%
DAE1-0524G
1.00 5(4.5~5.5) ±15 33 19.6x10.0x7.0 80.0%
DAE1-0525G
1.00 5(4.5~5.5) ±24 21 19.6x10.0x7.0 81.0%
DAE1-1211G
1.00 12(10.8~13.2) 5.00 200 19.6x10.0x7.0 71.0%
DAE1-1212G
1.00 12(10.8~13.2) 9.00 110 19.6x10.0x7.0 76.0%
DAE1-1213G
1.00 12(10.8~13.2) 12.00 83 19.6x10.0x7.0 78.0%
DAE1-1214G
1.00 12(10.8~13.2) 15.00 68 19.6x10.0x7.0 79.0%
DAE1-1215G
1.00 12(10.8~13.2) 24.00 42 19.6x10.0x7.0 84.0%
DAE1-1221G
1.00 12(10.8~13.2) ±5 100 19.6x10.0x7.0 72.0%
DAE1-1222G
1.00 12(10.8~13.2) ±9 55 19.6x10.0x7.0 78.0%
DAE1-1223G
1.00 12(10.8~13.2) ±12 40 19.6x10.0x7.0 79.0%
DAE1-1224G
1.00 12(10.8~13.2) ±15 33 19.6x10.0x7.0 78.0%
DAE1-1225G
1.00 12(10.8~13.2) ±24 21 19.6x10.0x7.0 76.0%
DAE1-1511G
1.00 15(13.5~16.5) 5.00 200 19.6x10.0x7.0 72.0%
DAE1-1512G
1.00 15(13.5~16.5) 9.00 110 19.6x10.0x7.0 74.0%
DAE1-1513G
1.00 15(13.5~16.5) 12.00 83 19.6x10.0x7.0 76.0%
DAE1-1514G
1.00 15(13.5~16.5) 15.00 68 19.6x10.0x7.0 75.0%
DAE1-1515G
1.00 15(13.5~16.5) 24.00 42 19.6x10.0x7.0 72.0%
DAE1-1521G
1.00 15(13.5~16.5) ±5 100 19.6x10.0x7.0 72.0%
DAE1-1522G
1.00 15(13.5~16.5) ±9 55 19.6x10.0x7.0 74.0%
DAE1-1523G
1.00 15(13.5~16.5) ±12 40 19.6x10.0x7.0 76.0%
DAE1-1524G
1.00 15(13.5~16.5) ±15 33 19.6x10.0x7.0 79.0%
DAE1-1525G
1.00 15(13.5~16.5) ±24 21 19.6x10.0x7.0 78.0%
DAE1-2411G
1.00 24(21.6~26.4) 5.00 200 19.6x10.0x7.0 73.0%
DAE1-2412G
1.00 24(21.6~26.4) 9.00 110 19.6x10.0x7.0 75.0%
DAE1-2413G
1.00 24(21.6~26.4) 12.00 83 19.6x10.0x7.0 78.0%
DAE1-2414G
1.00 24(21.6~26.4) 15.00 68 19.6x10.0x7.0 79.0%
DAE1-2415G
1.00 24(21.6~26.4) 24.00 42 19.6x10.0x7.0 78.0%
DAE1-2421G
1.00 24(21.6~26.4) ±5 100 19.6x10.0x7.0 73.0%
DAE1-2422G
1.00 24(21.6~26.4) ±9 55 19.6x10.0x7.0 79.0%
DAE1-2423G
1.00 24(21.6~26.4) ±12 40 19.6x10.0x7.0 80.0%
DAE1-2424G
1.00 24(21.6~26.4) ±15 33 19.6x10.0x7.0 80.0%
DAE1-2425G
1.00 24(21.6~26.4) ±24 21 19.6x10.0x7.0 81.0%
DAE-1H
1.00 5-24(±10%) 3.3-24, ±5-±24 - 19.6x12.5x9.5 -
-
DAE1-0510H
1.00 5(4.5~5.5) 3.30 300 19.6x12.5x9.5 72.0%
DAE1-0511H
1.00 5(4.5~5.5) 5.00 200 19.6x12.5x9.5 70.0%
DAE1-0512H
1.00 5(4.5~5.5) 9.00 110 19.6x12.5x9.5 78.0%
DAE1-0513H
1.00 5(4.5~5.5) 12.00 83 19.6x12.5x9.5 78.0%
DAE1-0514H
1.00 5(4.5~5.5) 15.00 68 19.6x12.5x9.5 80.0%
DAE1-0515H
1.00 5(4.5~5.5) 24.00 42 19.6x12.5x9.5 81.0%
DAE1-0520H
1.00 5(4.5~5.5) ±3.3 150 19.6x12.5x9.5 72.0%
DAE1-0521H
1.00 5(4.5~5.5) ±5 100 19.6x12.5x9.5 72.0%
DAE1-0522H
1.00 5(4.5~5.5) ±9 55 19.6x12.5x9.5 77.0%
DAE1-0523H
1.00 5(4.5~5.5) ±12 40 19.6x12.5x9.5 79.0%
DAE1-0524H
1.00 5(4.5~5.5) ±15 33 19.6x12.5x9.5 80.0%
DAE1-0525H
1.00 5(4.5~5.5) ±24 21 19.6x12.5x9.5 81.0%
DAE1-1210H
1.00 12(10.8~13.2) 3.30 300 19.6x12.5x9.5 74.0%
DAE1-1211H
1.00 12(10.8~13.2) 5.00 200 19.6x12.5x9.5 71.0%
DAE1-1212H
1.00 12(10.8~13.2) 9.00 110 19.6x12.5x9.5 76.0%
DAE1-1213H
1.00 12(10.8~13.2) 12.00 83 19.6x12.5x9.5 78.0%
DAE1-1214H
1.00 12(10.8~13.2) 15.00 68 19.6x12.5x9.5 79.0%
DAE1-1215H
1.00 12(10.8~13.2) 24.00 42 19.6x12.5x9.5 84.0%
DAE1-1221H
1.00 12(10.8~13.2) ±5 100 19.6x12.5x9.5 72.0%
DAE1-1222H
1.00 12(10.8~13.2) ±9 55 19.6x12.5x9.5 78.0%
DAE1-1223H
1.00 12(10.8~13.2) ±12 40 19.6x12.5x9.5 79.0%
DAE1-1224H
1.00 12(10.8~13.2) ±15 33 19.6x12.5x9.5 78.0%
DAE1-1225H
1.00 12(10.8~13.2) ±24 21 19.6x12.5x9.5 76.0%
DAE1-1510H
1.00 15(13.5~16.5) 3.30 300 19.6x12.5x9.5 72.0%
DAE1-1511H
1.00 15(13.5~16.5) 5.00 200 19.6x12.5x9.5 72.0%
DAE1-1512H
1.00 15(13.5~16.5) 9.00 110 19.6x12.5x9.5 74.0%
DAE1-1513H
1.00 15(13.5~16.5) 12.00 83 19.6x12.5x9.5 76.0%
DAE1-1514H
1.00 15(13.5~16.5) 15.00 68 19.6x12.5x9.5 75.0%
DAE1-1515H
1.00 15(13.5~16.5) 24.00 42 19.6x12.5x9.5 72.0%
DAE1-1521H
1.00 15(13.5~16.5) ±5 100 19.6x12.5x9.5 72.0%
DAE1-1522H
1.00 15(13.5~16.5) ±9 55 19.6x12.5x9.5 74.0%
DAE1-1523H
1.00 15(13.5~16.5) ±12 40 19.6x12.5x9.5 76.0%
DAE1-1524H
1.00 15(13.5~16.5) ±15 33 19.6x12.5x9.5 79.0%
DAE1-1525H
1.00 15(13.5~16.5) ±24 21 19.6x12.5x9.5 78.0%
DAE1-2410H
1.00 24(21.6~26.4) 3.30 300 19.6x12.5x9.5 72.0%
DAE1-2411H
1.00 24(21.6~26.4) 5.00 200 19.6x12.5x9.5 73.0%
DAE1-2412H
1.00 24(21.6~26.4) 9.00 110 19.6x12.5x9.5 75.0%
DAE1-2413H
1.00 24(21.6~26.4) 12.00 83 19.6x12.5x9.5 78.0%
DAE1-2414H
1.00 24(21.6~26.4) 15.00 68 19.6x12.5x9.5 79.0%
DAE1-2415H
1.00 24(21.6~26.4) 24.00 42 19.6x12.5x9.5 78.0%
DAE1-2421H
1.00 24(21.6~26.4) ±5 100 19.6x12.5x9.5 73.0%
DAE1-2422H
1.00 24(21.6~26.4) ±9 55 19.6x12.5x9.5 79.0%
DAE1-2423H
1.00 24(21.6~26.4) ±12 40 19.6x12.5x9.5 80.0%
DAE1-2424H
1.00 24(21.6~26.4) ±15 33 19.6x12.5x9.5 80.0%
DAE1-2425H
1.00 24(21.6~26.4) ±24 21 19.6x12.5x9.5 81.0%
DBE-1
1.00 3.3-24(±10%) 3.3-24 - 11.6x10.0x6.0 see specification
-

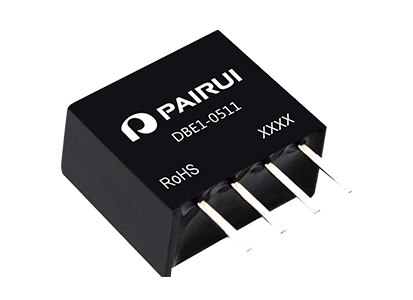

DBE1-0511
1.00 5(4.5~5.5) 5.00 200 11.6x10.0x6.0 70.0%
DBE1-0512
1.00 5(4.5~5.5) 9.00 110 11.6x10.0x6.0 78.0%
DBE1-0513
1.00 5(4.5~5.5) 12.00 83 11.6x10.0x6.0 78.0%
DBE1-0514
1.00 5(4.5~5.5) 15.00 68 11.6x10.0x6.0 80.0%
DBE1-0515
1.00 5(4.5~5.5) 24.00 42 11.6x10.0x6.0 81.0%
DBE1-1211
1.00 12(10.8~13.2) 5.00 200 11.6x10.0x6.0 71.0%
DBE1-1212
1.00 12(10.8~13.2) 9.00 110 11.6x10.0x6.0 76.0%
DBE1-1213
1.00 12(10.8~13.2) 12.00 83 11.6x10.0x6.0 78.0%
DBE1-1214
1.00 12(10.8~13.2) 15.00 68 11.6x10.0x6.0 79.0%
DBE1-1215
1.00 12(10.8~13.2) 24.00 42 11.6x10.0x6.0 84.0%
DBE1-1511
1.00 15(13.5~16.5) 5.00 200 11.6x10.0x6.0 72.0%
DBE1-1512
1.00 15(13.5~16.5) 9.00 110 11.6x10.0x6.0 74.0%
DBE1-1513
1.00 15(13.5~16.5) 12.00 83 11.6x10.0x6.0 76.0%
DBE1-1514
1.00 15(13.5~16.5) 15.00 68 11.6x10.0x6.0 75.0%
DBE1-1515
1.00 15(13.5~16.5) 24.00 42 11.6x10.0x6.0 72.0%
DBE1-2411
1.00 24(21.6~26.4) 5.00 200 11.6x10.0x6.0 73.0%
DBE1-2412
1.00 24(21.6~26.4) 9.00 110 11.6x10.0x6.0 75.0%
DBE1-2413
1.00 24(21.6~26.4) 12.00 83 11.6x10.0x6.0 78.0%
DBE1-2414
1.00 24(21.6~26.4) 15.00 68 11.6x10.0x6.0 79.0%
DBE1-2415
1.00 24(21.6~26.4) 24.00 42 11.6x10.0x6.0 78.0%
DBE-1F
1.00 3.3-24(±10%) 3.3-24 - 11.6x10.0x6.0 see specification
-
DBE1-0310F
1.00 3.3(2.97~3.63) 3.30 300 11.6x10.0x6.0 76.0%
DBE1-0311F
1.00 3.3(2.97~3.63) 5.00 200 11.6x10.0x6.0 77.0%
DBE1-0510F
1.00 5(4.5~5.5) 5.00 200 11.6x10.0x6.0 76.0%
DBE1-0511F
1.00 5(4.5~5.5) 5.00 200 11.6x10.0x6.0 80.0%
DBE1-0512F
1.00 5(4.5~5.5) 9.00 110 11.6x10.0x6.0 81.0%
DBE1-0513F
1.00 5(4.5~5.5) 12.00 83 11.6x10.0x6.0 77.0%
DBE1-0514F
1.00 5(4.5~5.5) 15.00 68 11.6x10.0x6.0 79.0%
DBE1-0515F
1.00 5(4.5~5.5) 24.00 42 11.6x10.0x6.0 78.0%
DBE1-1210F
1.00 12(10.8~13.2) 3.30 300 11.6x10.0x6.0 77.0%
DBE1-1211F
1.00 12(10.8~13.2) 5.00 200 11.6x10.0x6.0 79.0%
DBE1-1212F
1.00 12(10.8~13.2) 9.00 110 11.6x10.0x6.0 79.0%
DBE1-1213F
1.00 12(10.8~13.2) 12.00 83 11.6x10.0x6.0 81.0%
DBE1-1214F
1.00 12(10.8~13.2) 15.00 68 11.6x10.0x6.0 82.0%
DBE1-1215F
1.00 12(10.8~13.2) 24.00 42 11.6x10.0x6.0 78.0%
DBE1-1511F
1.00 15(13.5~16.5) 5.00 200 11.6x10.0x6.0 70.0%
DBE1-1514F
1.00 15(13.5~16.5) 15.00 68 11.6x10.0x6.0 78.0%
DBE1-2410F
1.00 24(21.6~26.4) 5.00 200 11.6x10.0x6.0 74.0%
DBE1-2411F
1.00 24(21.6~26.4) 5.00 200 11.6x10.0x6.0 70.0%
DBE1-2412F
1.00 24(21.6~26.4) 9.00 110 11.6x10.0x6.0 77.0%
DBE1-2413F
1.00 24(21.6~26.4) 12.00 83 11.6x10.0x6.0 80.0%
DBE1-2414F
1.00 24(21.6~26.4) 15.00 68 11.6x10.0x6.0 78.0%
DBE1-2415F
1.00 24(21.6~26.4) 24.00 42 11.6x10.0x6.0 80.0%
DAR-1
1.00 5-24(±5%) 5-24 - 19.6x10.0x7.0 see specification
-
DAR1-0511
1.00 5(4.75~5.25) 5.00 200 19.6x10.0x7.0 66.0%
DAR1-0512
1.00 5(4.75~5.25) 9.00 110 19.6x10.0x7.0 70.0%
DAR1-0513
1.00 5(4.75~5.25) 12.00 83 19.6x10.0x7.0 71.0%
DAR1-0514
1.00 5(4.75~5.25) 15.00 68 19.6x10.0x7.0 73.0%
DAR1-0515
1.00 5(4.75~5.25) 24.00 42 19.6x10.0x7.0 68.0%
DAR1-1210
1.00 12(11.4~12.6) 3.30 303 19.6x10.0x7.0 65.0%
DAR1-1211
1.00 12(11.4~12.6) 5.00 200 19.6x10.0x7.0 67.0%
DAR1-1212
1.00 12(11.4~12.6) 9.00 110 19.6x10.0x7.0 72.0%
DAR1-1213
1.00 12(11.4~12.6) 12.00 83 19.6x10.0x7.0 70.0%
DAR1-1214
1.00 12(11.4~12.6) 15.00 68 19.6x10.0x7.0 74.0%
DAR1-1215
1.00 12(11.4~12.6) 24.00 42 19.6x10.0x7.0 68.0%
DAR1-1511
1.00 15(14.25~15.75) 5.00 200 19.6x10.0x7.0 67.0%
DAR1-1512
1.00 15(14.25~15.75) 9.00 110 19.6x10.0x7.0 71.0%
DAR1-1513
1.00 15(14.25~15.75) 12.00 83 19.6x10.0x7.0 71.0%
DAR1-1514
1.00 15(14.25~15.75) 15.00 68 19.6x10.0x7.0 72.0%
DAR1-1515
1.00 15(14.25~15.75) 24.00 42 19.6x10.0x7.0 68.0%
DAR1-2411
1.00 24(22.8~25.2) 5.00 200 19.6x10.0x7.0 68.0%
DAR1-2412
1.00 24(22.8~25.2) 9.00 110 19.6x10.0x7.0 68.0%
DAR1-2413
1.00 24(22.8~25.2) 12.00 83 19.6x10.0x7.0 73.0%
DAR1-2414
1.00 24(22.8~25.2) 15.00 68 19.6x10.0x7.0 75.0%
DAR1-2415
1.00 24(22.8~25.2) 24.00 42 19.6x10.0x7.0 68.0%
DAR-1F
1.00 5-24(±5%) 5-24 - 19.6x10.0x7.0 see specification
-
DAR1-0511F
1.00 5(4.75~5.25) 5.00 200 19.6x10.0x7.0 72.0%
DAR1-0512F
1.00 5(4.75~5.25) 9.00 110 19.6x10.0x7.0 72.0%
DAR1-0513F
1.00 5(4.75~5.25) 12.00 83 19.6x10.0x7.0 72.0%
DAR1-0514F
1.00 5(4.75~5.25) 15.00 68 19.6x10.0x7.0 72.0%
DAR1-0515F
1.00 5(4.75~5.25) 24.00 42 19.6x10.0x7.0 72.0%
DAR1-1210F
1.00 12(11.4~12.6) 3.30 303 19.6x10.0x7.0 72.0%
DAR1-1211F
1.00 12(11.4~12.6) 5.00 200 19.6x10.0x7.0 72.0%
DAR1-1212F
1.00 12(11.4~12.6) 9.00 110 19.6x10.0x7.0 72.0%
DAR1-1213F
1.00 12(11.4~12.6) 12.00 83 19.6x10.0x7.0 72.0%
DAR1-1214F
1.00 12(11.4~12.6) 15.00 68 19.6x10.0x7.0 72.0%
DAR1-1215F
1.00 12(11.4~12.6) 24.00 42 19.6x10.0x7.0 72.0%
DAR1-2411F
1.00 24(22.8~25.2) 5.00 200 19.6x10.0x7.0 72.0%
DAR1-2412F
1.00 24(22.8~25.2) 9.00 110 19.6x10.0x7.0 72.0%
DAR1-2413F
1.00 24(22.8~25.2) 12.00 83 19.6x10.0x7.0 72.0%
DAR1-2414F
1.00 24(22.8~25.2) 15.00 68 19.6x10.0x7.0 72.0%
DAR1-2415F
1.00 24(22.8~25.2) 24.00 42 19.6x10.0x7.0 72.0%
DBR-1
1.00 5-24(±5%) ±5-±24 - 27.5x12.0x9.5 see specification
-
DBR1-0521
1.00 5(4.75~5.25) ±5 100 27.5x12.0x9.5 54.0%
DBR1-0522
1.00 5(4.75~5.25) ±9 55 27.5x12.0x9.5 63.0%
DBR1-0523
1.00 5(4.75~5.25) ±12 40 27.5x12.0x9.5 63.0%
DBR1-0524
1.00 5(4.75~5.25) ±15 33 27.5x12.0x9.5 65.0%
DBR1-0525
1.00 5(4.75~5.25) ±24 21 27.5x12.0x9.5 62.0%
DBR1-1221
1.00 12(11.4~12.6) ±5 100 27.5x12.0x9.5 56.0%
DBR1-1222
1.00 12(11.4~12.6) ±9 55 27.5x12.0x9.5 62.0%
DBR1-1223
1.00 12(11.4~12.6) ±12 40 27.5x12.0x9.5 65.0%
DBR1-1224
1.00 12(11.4~12.6) ±15 33 27.5x12.0x9.5 66.0%
DBR1-1225
1.00 12(11.4~12.6) ±24 21 27.5x12.0x9.5 62.0%
DBR1-2421
1.00 24(22.8~25.2) ±5 100 27.5x12.0x9.5 54.0%
DBR1-2422
1.00 24(22.8~25.2) ±9 55 27.5x12.0x9.5 62.0%
DBR1-2423
1.00 24(22.8~25.2) ±12 40 27.5x12.0x9.5 64.0%
DBR1-2424
1.00 24(22.8~25.2) ±15 33 27.5x12.0x9.5 66.0%
DBR1-2425
1.00 24(22.8~25.2) ±24 21 27.5x12.0x9.5 62.0%
DBR-1F
1.00 5-24(±5%) ±5-±24 - 27.5x12.0x9.5 see specification
-
DBR1-0521F
1.00 5(4.75~5.25) ±5 100 27.5x12.0x9.5 54.0%
DBR1-0522F
1.00 5(4.75~5.25) ±9 55 27.5x12.0x9.5 63.0%
DBR1-0523F
1.00 5(4.75~5.25) ±12 40 27.5x12.0x9.5 63.0%
DBR1-0524F
1.00 5(4.75~5.25) ±15 33 27.5x12.0x9.5 65.0%
DBR1-0525F
1.00 5(4.75~5.25) ±24 21 27.5x12.0x9.5 62.0%
DBR1-1221F
1.00 12(11.4~12.6) ±5 100 27.5x12.0x9.5 56.0%
DBR1-1222F
1.00 12(11.4~12.6) ±9 55 27.5x12.0x9.5 62.0%
DBR1-1223F
1.00 12(11.4~12.6) ±12 40 27.5x12.0x9.5 65.0%
DBR1-1224F
1.00 12(11.4~12.6) ±15 33 27.5x12.0x9.5 66.0%
DBR1-1225F
1.00 12(11.4~12.6) ±24 21 27.5x12.0x9.5 62.0%
DBR1-2421F
1.00 24(22.8~25.2) ±5 100 27.5x12.0x9.5 54.0%
DBR1-2422F
1.00 24(22.8~25.2) ±9 55 27.5x12.0x9.5 62.0%
DBR1-2423F
1.00 24(22.8~25.2) ±12 40 27.5x12.0x9.5 64.0%
DBR1-2424F
1.00 24(22.8~25.2) ±15 33 27.5x12.0x9.5 66.0%
DBR1-2425F
1.00 24(22.8~25.2) ±24 21 27.5x12.0x9.5 62.0%
DAV-1
1.00 5-48(2:1) 5-24, ±5-±24 - 22.0x12.0x9.5 see specification
-
DAV1-0511
1.00 5(4.5~9) 5.00 200 22.0x12.0x9.5 67.0%
DAV1-0512
1.00 5(4.5~9) 9.00 110 22.0x12.0x9.5 72.0%
DAV1-0513
1.00 5(4.5~9) 12.00 83 22.0x12.0x9.5 73.0%
DAV1-0514
1.00 5(4.5~9) 15.00 68 22.0x12.0x9.5 72.0%
DAV1-0515
1.00 5(4.5~9) 24.00 42 22.0x12.0x9.5 71.0%
DAV1-0521
1.00 5(4.5~9) ±5 100 22.0x12.0x9.5 67.0%
DAV1-0522
1.00 5(4.5~9) ±9 55 22.0x12.0x9.5 71.0%
DAV1-0523
1.00 5(4.5~9) ±12 40 22.0x12.0x9.5 72.0%
DAV1-0524
1.00 5(4.5~9) ±15 33 22.0x12.0x9.5 73.0%
DAV1-0525
1.00 5(4.5~9) ±24 21 22.0x12.0x9.5 72.0%
DAV1-1211
1.00 12(9~18) 5.00 200 22.0x12.0x9.5 75.0%
DAV1-1212
1.00 12(9~18) 9.00 110 22.0x12.0x9.5 77.0%
DAV1-1213
1.00 12(9~18) 12.00 83 22.0x12.0x9.5 79.0%
DAV1-1214
1.00 12(9~18) 15.00 68 22.0x12.0x9.5 80.0%
DAV1-1215
1.00 12(9~18) 24.00 42 22.0x12.0x9.5 78.0%
DAV1-1221
1.00 12(9~18) ±5 100 22.0x12.0x9.5 73.0%
DAV1-1222
1.00 12(9~18) ±9 55 22.0x12.0x9.5 74.0%
DAV1-1223
1.00 12(9~18) ±12 40 22.0x12.0x9.5 78.0%
DAV1-1224
1.00 12(9~18) ±15 33 22.0x12.0x9.5 77.0%
DAV1-1225
1.00 12(9~18) ±24 21 22.0x12.0x9.5 76.0%
DAV1-2411
1.00 24(18~36) 5.00 200 22.0x12.0x9.5 77.0%
DAV1-2412
1.00 24(18~36) 9.00 110 22.0x12.0x9.5 79.0%
DAV1-2413
1.00 24(18~36) 12.00 83 22.0x12.0x9.5 80.0%
DAV1-2414
1.00 24(18~36) 15.00 68 22.0x12.0x9.5 80.0%
DAV1-2415
1.00 24(18~36) 24.00 42 22.0x12.0x9.5 80.0%
DAV1-2421
1.00 24(18~36) ±5 100 22.0x12.0x9.5 76.0%
DAV1-2422
1.00 24(18~36) ±9 55 22.0x12.0x9.5 78.0%
DAV1-2423
1.00 24(18~36) ±12 40 22.0x12.0x9.5 79.0%
DAV1-2424
1.00 24(18~36) ±15 33 22.0x12.0x9.5 78.0%
DAV1-2425
1.00 24(18~36) ±24 21 22.0x12.0x9.5 78.0%
DAV1-4811
1.00 48(36~72) 5.00 200 22.0x12.0x9.5 78.0%
DAV1-4812
1.00 48(36~72) 9.00 110 22.0x12.0x9.5 78.0%
DAV1-4813
1.00 48(36~72) 12.00 83 22.0x12.0x9.5 79.0%
DAV1-4814
1.00 48(36~72) 15.00 68 22.0x12.0x9.5 80.0%
DAV1-4815
1.00 48(36~72) 24.00 42 22.0x12.0x9.5 80.0%
DAV1-4821
1.00 48(36~72) ±5 100 22.0x12.0x9.5 75.0%
DAV1-4822
1.00 48(36~72) ±9 55 22.0x12.0x9.5 78.0%
DAV1-4823
1.00 48(36~72) ±12 40 22.0x12.0x9.5 79.0%
DAV1-4824
1.00 48(36~72) ±15 33 22.0x12.0x9.5 75.0%
DAV1-4825
1.00 48(36~72) ±24 21 22.0x12.0x9.5 76.0%
DAV-1F
1.00 5-48(2:1) 5-24, ±5-±24 - 22.0x12.0x9.5 see specification
-
DAV1-0511F
1.00 5(4.5~9) 5.00 200 22.0x12.0x9.5 67.0%
DAV1-0512F
1.00 5(4.5~9) 9.00 110 22.0x12.0x9.5 72.0%
DAV1-0513F
1.00 5(4.5~9) 12.00 83 22.0x12.0x9.5 73.0%
DAV1-0514F
1.00 5(4.5~9) 15.00 68 22.0x12.0x9.5 72.0%
DAV1-0515F
1.00 5(4.5~9) 24.00 42 22.0x12.0x9.5 71.0%
DAV1-0521F
1.00 5(4.5~9) ±5 100 22.0x12.0x9.5 67.0%
DAV1-0522F
1.00 5(4.5~9) ±9 55 22.0x12.0x9.5 71.0%
DAV1-0523F
1.00 5(4.5~9) ±12 40 22.0x12.0x9.5 72.0%
DAV1-0524F
1.00 5(4.5~9) ±15 33 22.0x12.0x9.5 73.0%
DAV1-0525F
1.00 5(4.5~9) ±24 21 22.0x12.0x9.5 72.0%
DAV1-1211F
1.00 12(9~18) 5.00 200 22.0x12.0x9.5 75.0%
DAV1-1212F
1.00 12(9~18) 9.00 110 22.0x12.0x9.5 77.0%
DAV1-1213F
1.00 12(9~18) 12.00 83 22.0x12.0x9.5 79.0%
DAV1-1214F
1.00 12(9~18) 15.00 68 22.0x12.0x9.5 80.0%
DAV1-1215F
1.00 12(9~18) 24.00 42 22.0x12.0x9.5 78.0%
DAV1-1221F
1.00 12(9~18) ±5 100 22.0x12.0x9.5 73.0%
DAV1-1222F
1.00 12(9~18) ±9 55 22.0x12.0x9.5 74.0%
DAV1-1223F
1.00 12(9~18) ±12 40 22.0x12.0x9.5 78.0%
DAV1-1224F
1.00 12(9~18) ±15 33 22.0x12.0x9.5 77.0%
DAV1-1225F
1.00 12(9~18) ±24 21 22.0x12.0x9.5 76.0%
DAV1-2411F
1.00 24(18~36) 5.00 200 22.0x12.0x9.5 77.0%
DAV1-2412F
1.00 24(18~36) 9.00 110 22.0x12.0x9.5 79.0%
DAV1-2413F
1.00 24(18~36) 12.00 83 22.0x12.0x9.5 80.0%
DAV1-2414F
1.00 24(18~36) 15.00 68 22.0x12.0x9.5 80.0%
DAV1-2415F
1.00 24(18~36) 24.00 42 22.0x12.0x9.5 80.0%
DAV1-2421F
1.00 24(18~36) ±5 100 22.0x12.0x9.5 76.0%
DAV1-2422F
1.00 24(18~36) ±9 55 22.0x12.0x9.5 78.0%
DAV1-2423F
1.00 24(18~36) ±12 40 22.0x12.0x9.5 79.0%
DAV1-2424F
1.00 24(18~36) ±15 33 22.0x12.0x9.5 78.0%
DAV1-2425F
1.00 24(18~36) ±24 21 22.0x12.0x9.5 78.0%
DAV1-4811F
1.00 48(36~72) 5.00 200 22.0x12.0x9.5 78.0%
DAV1-4812F
1.00 48(36~72) 9.00 110 22.0x12.0x9.5 78.0%
DAV1-4813F
1.00 48(36~72) 12.00 83 22.0x12.0x9.5 79.0%
DAV1-4814F
1.00 48(36~72) 15.00 68 22.0x12.0x9.5 80.0%
DAV1-4815F
1.00 48(36~72) 24.00 42 22.0x12.0x9.5 80.0%
DAV1-4821F
1.00 48(36~72) ±5 100 22.0x12.0x9.5 75.0%
DAV1-4822F
1.00 48(36~72) ±9 55 22.0x12.0x9.5 78.0%
DAV1-4823F
1.00 48(36~72) ±12 40 22.0x12.0x9.5 79.0%
DAV1-4824F
1.00 48(36~72) ±15 33 22.0x12.0x9.5 75.0%
DAV1-4825F
1.00 48(36~72) ±24 21 22.0x12.0x9.5 76.0%
DAV-1W
1.00 24 48(4:1) 5-24, ±5-±24 - 22.0x12.0x9.5 see specification
-
DAV1W-2411
1.00 24(9~36) 5.00 200 22.0x12.0x9.5 72.0%
DAV1W-2412
1.00 24(9~36) 9.00 110 22.0x12.0x9.5 74.0%
DAV1W-2413
1.00 24(9~36) 12.00 83 22.0x12.0x9.5 76.0%
DAV1W-2414
1.00 24(9~36) 15.00 68 22.0x12.0x9.5 77.0%
DAV1W-2415
1.00 24(9~36) 24.00 42 22.0x12.0x9.5 78.0%
DAV1W-2421
1.00 24(9~36) ±5 100 22.0x12.0x9.5 72.0%
DAV1W-2422
1.00 24(9~36) ±9 55 22.0x12.0x9.5 74.0%
DAV1W-2423
1.00 24(9~36) ±12 40 22.0x12.0x9.5 75.0%
DAV1W-2424
1.00 24(9~36) ±15 33 22.0x12.0x9.5 77.0%
DAV1W-2425
1.00 24(9~36) ±24 21 22.0x12.0x9.5 78.0%
DAV1W-4811
1.00 48(18~72) 5.00 200 22.0x12.0x9.5 70.0%
DAV1W-4812
1.00 48(18~72) 9.00 110 22.0x12.0x9.5 72.0%
DAV1W-4813
1.00 48(18~72) 12.00 83 22.0x12.0x9.5 73.0%
DAV1W-4814
1.00 48(18~72) 15.00 68 22.0x12.0x9.5 75.0%
DAV1W-4815
1.00 48(18~72) 24.00 42 22.0x12.0x9.5 77.0%
DAV1W-4821
1.00 48(18~72) ±5 100 22.0x12.0x9.5 70.0%
DAV1W-4822
1.00 48(18~72) ±9 55 22.0x12.0x9.5 71.0%
DAV1W-4823
1.00 48(18~72) ±12 40 22.0x12.0x9.5 73.0%
DAV1W-4824
1.00 48(18~72) ±15 33 22.0x12.0x9.5 75.0%
DAV1W-4825
1.00 48(18~72) ±24 21 22.0x12.0x9.5 77.0%
DAE-2
2.00 5-24(±10%) 5-24, ±5-±24,5/5-24/24 - 19.6x10.0x7.0 -
-
DAE2-0511
2.00 5(4.5~5.5) 5.00 400 19.6x10.0x7.0 70.0%
DAE2-0512
2.00 5(4.5~5.5) 9.00 220 19.6x10.0x7.0 83.0%
DAE2-0513
2.00 5(4.5~5.5) 12.00 166 19.6x10.0x7.0 85.0%
DAE2-0514
2.00 5(4.5~5.5) 15.00 136 19.6x10.0x7.0 83.0%
DAE2-0515
2.00 5(4.5~5.5) 24.00 84 19.6x10.0x7.0 81.0%
DAE2-0521
2.00 5(4.5~5.5) ±5 200 19.6x10.0x7.0 82.0%
DAE2-0522
2.00 5(4.5~5.5) ±9 110 19.6x10.0x7.0 85.0%
DAE2-0523
2.00 5(4.5~5.5) ±12 80 19.6x10.0x7.0 86.0%
DAE2-0524
2.00 5(4.5~5.5) ±15 68 19.6x10.0x7.0 82.0%
DAE2-0525
2.00 5(4.5~5.5) ±24 42 19.6x10.0x7.0 84.0%
DAE2-0501
2.00 5(4.5~5.5) 5, 5 200 19.6x10.0x7.0 80.0%
DAE2-0502
2.00 5(4.5~5.5) 9, 9 110 19.6x10.0x7.0 82.0%
DAE2-0503
2.00 5(4.5~5.5) 12, 12 80 19.6x10.0x7.0 82.0%
DAE2-0504
2.00 5(4.5~5.5) 15, 15 68 19.6x10.0x7.0 83.0%
DAE2-0505
2.00 5(4.5~5.5) 24, 24 42 19.6x10.0x7.0 80.0%
DAE2-1211
2.00 12(10.8~13.2) 5.00 400 19.6x10.0x7.0 78.0%
DAE2-1212
2.00 12(10.8~13.2) 9.00 220 19.6x10.0x7.0 82.0%
DAE2-1213
2.00 12(10.8~13.2) 12.00 166 19.6x10.0x7.0 84.0%
DAE2-1214
2.00 12(10.8~13.2) 15.00 136 19.6x10.0x7.0 81.0%
DAE2-1215
2.00 12(10.8~13.2) 24.00 84 19.6x10.0x7.0 80.0%
DAE2-1221
2.00 12(10.8~13.2) ±5 200 19.6x10.0x7.0 81.0%
DAE2-1222
2.00 12(10.8~13.2) ±9 110 19.6x10.0x7.0 84.0%
DAE2-1223
2.00 12(10.8~13.2) ±12 80 19.6x10.0x7.0 86.0%
DAE2-1224
2.00 12(10.8~13.2) ±15 68 19.6x10.0x7.0 82.0%
DAE2-1225
2.00 12(10.8~13.2) ±24 42 19.6x10.0x7.0 84.0%
DAE2-1201
2.00 12(10.8~13.2) 5, 5 200 19.6x10.0x7.0 80.0%
DAE2-1202
2.00 12(10.8~13.2) 9, 9 110 19.6x10.0x7.0 83.0%
DAE2-1203
2.00 12(10.8~13.2) 12, 12 80 19.6x10.0x7.0 85.0%
DAE2-1204
2.00 12(10.8~13.2) 15, 15 68 19.6x10.0x7.0 83.0%
DAE2-1205
2.00 12(10.8~13.2) 24, 24 42 19.6x10.0x7.0 80.0%
DAE2-2410
2.00 24(21.6~26.4) 3.30 606 19.6x10.0x7.0 78.0%
DAE2-2411
2.00 24(21.6~26.4) 5.00 400 19.6x10.0x7.0 81.0%
DAE2-2412
2.00 24(21.6~26.4) 9.00 220 19.6x10.0x7.0 85.0%
DAE2-2413
2.00 24(21.6~26.4) 12.00 166 19.6x10.0x7.0 84.0%
DAE2-2414
2.00 24(21.6~26.4) 15.00 136 19.6x10.0x7.0 85.0%
DAE2-2415
2.00 24(21.6~26.4) 24.00 84 19.6x10.0x7.0 84.0%
DAE2-2421
2.00 24(21.6~26.4) ±5 200 19.6x10.0x7.0 80.0%
DAE2-2422
2.00 24(21.6~26.4) ±9 110 19.6x10.0x7.0 84.0%
DAE2-2423
2.00 24(21.6~26.4) ±12 80 19.6x10.0x7.0 84.0%
DAE2-2424
2.00 24(21.6~26.4) ±15 68 19.6x10.0x7.0 84.0%
DAE2-2425
2.00 24(21.6~26.4) ±24 42 19.6x10.0x7.0 85.0%
DAE2-2401
2.00 24(21.6~26.4) 5, 5 200 19.6x10.0x7.0 81.0%
DAE2-2402
2.00 24(21.6~26.4) 9, 9 110 19.6x10.0x7.0 82.0%
DAE2-2403
2.00 24(21.6~26.4) 12, 12 80 19.6x10.0x7.0 84.0%
DAE2-2404
2.00 24(21.6~26.4) 15,  15 68 19.6x10.0x7.0 84.0%
DAE2-2405
2.00 24(21.6~26.4) 24, 24 42 19.6x10.0x7.0 80.0%
DAE-2F
2.00 5-24(±10%) 5-24, ±5-±24 - 19.6x10.0x7.0 -
-
DAE2-0510F
2.00 5(4.5~5.5) 3.30 606 19.6x10.0x7.0 78.0%
DAE2-0511F
2.00 5(4.5~5.5) 5.00 400 19.6x10.0x7.0 70.0%
DAE2-0512F
2.00 5(4.5~5.5) 9.00 220 19.6x10.0x7.0 83.0%
DAE2-0513F
2.00 5(4.5~5.5) 12.00 166 19.6x10.0x7.0 85.0%
DAE2-0514F
2.00 5(4.5~5.5) 15.00 136 19.6x10.0x7.0 83.0%
DAE2-0515F
2.00 5(4.5~5.5) 24.00 84 19.6x10.0x7.0 81.0%
DAE2-0521F
2.00 5(4.5~5.5) ±5 200 19.6x10.0x7.0 82.0%
DAE2-0522F
2.00 5(4.5~5.5) ±9 110 19.6x10.0x7.0 85.0%
DAE2-0523F
2.00 5(4.5~5.5) ±12 80 19.6x10.0x7.0 86.0%
DAE2-0524F
2.00 5(4.5~5.5) ±15 68 19.6x10.0x7.0 82.0%
DAE2-0525F
2.00 5(4.5~5.5) ±24 42 19.6x10.0x7.0 84.0%
DAE2-1211F
2.00 12(10.8~13.2) 5.00 400 19.6x10.0x7.0 78.0%
DAE2-1212F
2.00 12(10.8~13.2) 9.00 220 19.6x10.0x7.0 82.0%
DAE2-1213F
2.00 12(10.8~13.2) 12.00 166 19.6x10.0x7.0 84.0%
DAE2-1214F
2.00 12(10.8~13.2) 15.00 136 19.6x10.0x7.0 81.0%
DAE2-1215F
2.00 12(10.8~13.2) 24.00 84 19.6x10.0x7.0 80.0%
DAE2-1221F
2.00 12(10.8~13.2) ±5 200 19.6x10.0x7.0 81.0%
DAE2-1222F
2.00 12(10.8~13.2) ±9 110 19.6x10.0x7.0 84.0%
DAE2-1223F
2.00 12(10.8~13.2) ±12 80 19.6x10.0x7.0 86.0%
DAE2-1224F
2.00 12(10.8~13.2) ±15 68 19.6x10.0x7.0 82.0%
DAE2-1225F
2.00 12(10.8~13.2) ±24 42 19.6x10.0x7.0 84.0%
DAE2-2411F
2.00 24(21.6~26.4) 5.00 400 19.6x10.0x7.0 81.0%
DAE2-2412F
2.00 24(21.6~26.4) 9.00 220 19.6x10.0x7.0 85.0%
DAE2-2413F
2.00 24(21.6~26.4) 12.00 166 19.6x10.0x7.0 84.0%
DAE2-2414F
2.00 24(21.6~26.4) 15.00 136 19.6x10.0x7.0 85.0%
DAE2-2415F
2.00 24(21.6~26.4) 24.00 84 19.6x10.0x7.0 84.0%
DAE2-2421F
2.00 24(21.6~26.4) ±5 200 19.6x10.0x7.0 80.0%
DAE2-2422F
2.00 24(21.6~26.4) ±9 110 19.6x10.0x7.0 84.0%
DAE2-2423F
2.00 24(21.6~26.4) ±12 80 19.6x10.0x7.0 84.0%
DAE2-2424F
2.00 24(21.6~26.4) ±15 68 19.6x10.0x7.0 84.0%
DAE2-2425F
2.00 24(21.6~26.4) ±24 42 19.6x10.0x7.0 85.0%
DAE-2G
2.00 5-24(±10%) 5-24, ±5-±24 - 19.6x10.0x7.0 -
-
DAE2-0510G
2.00 5(4.5~5.5) 3.30 606 19.6x10.0x7.0 78.0%
DAE2-0511G
2.00 5(4.5~5.5) 5.00 400 19.6x10.0x7.0 70.0%
DAE2-0512G
2.00 5(4.5~5.5) 9.00 220 19.6x10.0x7.0 83.0%
DAE2-0513G
2.00 5(4.5~5.5) 12.00 166 19.6x10.0x7.0 85.0%
DAE2-0514G
2.00 5(4.5~5.5) 15.00 136 19.6x10.0x7.0 83.0%
DAE2-0515G
2.00 5(4.5~5.5) 24.00 84 19.6x10.0x7.0 81.0%
DAE2-0521G
2.00 5(4.5~5.5) ±5 200 19.6x10.0x7.0 82.0%
DAE2-0522G
2.00 5(4.5~5.5) ±9 110 19.6x10.0x7.0 85.0%
DAE2-0523G
2.00 5(4.5~5.5) ±12 80 19.6x10.0x7.0 86.0%
DAE2-0524G
2.00 5(4.5~5.5) ±15 68 19.6x10.0x7.0 82.0%
DAE2-0525G
2.00 5(4.5~5.5) ±24 42 19.6x10.0x7.0 84.0%
DAE2-1211G
2.00 12(10.8~13.2) 5.00 400 19.6x10.0x7.0 78.0%
DAE2-1212G
2.00 12(10.8~13.2) 9.00 220 19.6x10.0x7.0 82.0%
DAE2-1213G
2.00 12(10.8~13.2) 12.00 166 19.6x10.0x7.0 84.0%
DAE2-1214G
2.00 12(10.8~13.2) 15.00 136 19.6x10.0x7.0 81.0%
DAE2-1215G
2.00 12(10.8~13.2) 24.00 84 19.6x10.0x7.0 80.0%
DAE2-1221G
2.00 12(10.8~13.2) ±5 200 19.6x10.0x7.0 81.0%
DAE2-1222G
2.00 12(10.8~13.2) ±9 110 19.6x10.0x7.0 84.0%
DAE2-1223G
2.00 12(10.8~13.2) ±12 80 19.6x10.0x7.0 86.0%
DAE2-1224G
2.00 12(10.8~13.2) ±15 68 19.6x10.0x7.0 82.0%
DAE2-1225G
2.00 12(10.8~13.2) ±24 42 19.6x10.0x7.0 84.0%
DAE2-2411G
2.00 24(21.6~26.4) 5.00 400 19.6x10.0x7.0 81.0%
DAE2-2412G
2.00 24(21.6~26.4) 9.00 220 19.6x10.0x7.0 85.0%
DAE2-2413G
2.00 24(21.6~26.4) 12.00 166 19.6x10.0x7.0 84.0%
DAE2-2414G
2.00 24(21.6~26.4) 15.00 136 19.6x10.0x7.0 85.0%
DAE2-2415G
2.00 24(21.6~26.4) 24.00 84 19.6x10.0x7.0 84.0%
DAE2-2421G
2.00 24(21.6~26.4) ±5 200 19.6x10.0x7.0 80.0%
DAE2-2422G
2.00 24(21.6~26.4) ±9 110 19.6x10.0x7.0 84.0%
DAE2-2423G
2.00 24(21.6~26.4) ±12 80 19.6x10.0x7.0 84.0%
DAE2-2424G
2.00 24(21.6~26.4) ±15 68 19.6x10.0x7.0 84.0%
DAE2-2425G
2.00 24(21.6~26.4) ±24 42 19.6x10.0x7.0 85.0%
DAE-2H
2.00 5-24(±10%) 3.3-15, ±5-±15 - 19.6x12.5x9.5 see specification
-
DAE2-0510H
2.00 5(4.5~5.5) 3.30 606 19.6x12.5x9.5 78.0%
DAE2-0511H
2.00 5(4.5~5.5) 5.00 400 19.6x12.5x9.5 70.0%
DAE2-0512H
2.00 5(4.5~5.5) 9.00 220 19.6x12.5x9.5 83.0%
DAE2-0513H
2.00 5(4.5~5.5) 12.00 166 19.6x12.5x9.5 85.0%
DAE2-0514H
2.00 5(4.5~5.5) 15.00 136 19.6x12.5x9.5 83.0%
DAE2-0515H
2.00 5(4.5~5.5) 24.00 84 19.6x12.5x9.5 81.0%
DAE2-0521H
2.00 5(4.5~5.5) ±5 200 19.6x12.5x9.5 82.0%
DAE2-0522H
2.00 5(4.5~5.5) ±9 110 19.6x12.5x9.5 85.0%
DAE2-0523H
2.00 5(4.5~5.5) ±12 80 19.6x12.5x9.5 86.0%
DAE2-0524H
2.00 5(4.5~5.5) ±15 68 19.6x12.5x9.5 82.0%
DAE2-0525H
2.00 5(4.5~5.5) ±24 42 19.6x12.5x9.5 84.0%
DAE2-1211H
2.00 12(10.8~13.2) 5.00 400 19.6x12.5x9.5 78.0%
DAE2-1212H
2.00 12(10.8~13.2) 9.00 220 19.6x12.5x9.5 82.0%
DAE2-1213H
2.00 12(10.8~13.2) 12.00 166 19.6x12.5x9.5 84.0%
DAE2-1214H
2.00 12(10.8~13.2) 15.00 136 19.6x12.5x9.5 81.0%
DAE2-1215H
2.00 12(10.8~13.2) 24.00 84 19.6x12.5x9.5 80.0%
DAE2-1221H
2.00 12(10.8~13.2) ±5 200 19.6x12.5x9.5 81.0%
DAE2-1222H
2.00 12(10.8~13.2) ±9 110 19.6x12.5x9.5 84.0%
DAE2-1223H
2.00 12(10.8~13.2) ±12 80 19.6x12.5x9.5 86.0%
DAE2-1224H
2.00 12(10.8~13.2) ±15 68 19.6x12.5x9.5 82.0%
DAE2-1225H
2.00 12(10.8~13.2) ±24 42 19.6x12.5x9.5 84.0%
DAE2-2411H
2.00 24(21.6~26.4) 5.00 400 19.6x12.5x9.5 81.0%
DAE2-2412H
2.00 24(21.6~26.4) 9.00 220 19.6x12.5x9.5 85.0%
DAE2-2413H
2.00 24(21.6~26.4) 12.00 166 19.6x12.5x9.5 84.0%
DAE2-2414H
2.00 24(21.6~26.4) 15.00 136 19.6x12.5x9.5 85.0%
DAE2-2415H
2.00 24(21.6~26.4) 24.00 84 19.6x12.5x9.5 84.0%
DAE2-2421H
2.00 24(21.6~26.4) ±5 200 19.6x12.5x9.5 80.0%
DAE2-2422H
2.00 24(21.6~26.4) ±9 110 19.6x12.5x9.5 84.0%
DAE2-2423H
2.00 24(21.6~26.4) ±12 80 19.6x12.5x9.5 84.0%
DAE2-2424H
2.00 24(21.6~26.4) ±15 68 19.6x12.5x9.5 84.0%
DAE2-2425H
2.00 24(21.6~26.4) ±24 42 19.6x12.5x9.5 85.0%
DBE-2
2.00 3.3-24(±10%) 3.3-15 - 11.6x10.0x7.5 see specification
-
DBE2-0310
2.00 3.3(3.0~3.6) 3.30 400 11.6x10.0x7.5 73.0%
DBE2-0311
2.00 3.3(3.0~3.6) 5.00 400 11.6x10.0x7.5 78.0%
DBE2-0312
2.00 3.3(3.0~3.6) 9.00 222 11.6x10.0x7.5 72.0%
DBE2-0313
2.00 3.3(3.0~3.6) 12.00 167 11.6x10.0x7.5 72.0%
DBE2-0314
2.00 3.3(3.0~3.6) 15.00 133 11.6x10.0x7.5 72.0%
DBE2-0510
2.00 5(4.5~5.5) 3.30 400 11.6x10.0x7.5 74.0%
DBE2-0511
2.00 5(4.5~5.5) 5.00 400 11.6x10.0x7.5 80.0%
DBE2-0512
2.00 5(4.5~5.5) 9.00 222 11.6x10.0x7.5 84.0%
DBE2-0513
2.00 5(4.5~5.5) 12.00 167 11.6x10.0x7.5 83.0%
DBE2-0514
2.00 5(4.5~5.5) 15.00 133 11.6x10.0x7.5 84.0%
DBE2-0515
2.00 5(4.5~5.5) 24.00 84 11.6x10.0x7.5 80.0%
DBE2-1210
2.00 12(10.8~13.2) 3.30 400 11.6x10.0x7.5 72.0%
DBE2-1211
2.00 12(10.8~13.2) 5.00 400 11.6x10.0x7.5 81.0%
DBE2-1212
2.00 12(10.8~13.2) 9.00 222 11.6x10.0x7.5 82.0%
DBE2-1213
2.00 12(10.8~13.2) 12.00 167 11.6x10.0x7.5 85.0%
DBE2-1214
2.00 12(10.8~13.2) 15.00 133 11.6x10.0x7.5 82.0%
DBE2-1510
2.00 15(13.5~16.5) 3.30 400 11.6x10.0x7.5 72.0%
DBE2-1511
2.00 15(13.5~16.5) 5.00 400 11.6x10.0x7.5 80.0%
DBE2-1512
2.00 15(13.5~16.5) 9.00 222 11.6x10.0x7.5 72.0%
DBE2-1513
2.00 15(13.5~16.5) 12.00 167 11.6x10.0x7.5 72.0%
DBE2-1514
2.00 15(13.5~16.5) 15.00 133 11.6x10.0x7.5 80.0%
DBE2-2410
2.00 24(21.6~26.4) 3.30 400 11.6x10.0x7.5 76.0%
DBE2-2411
2.00 24(21.6~26.4) 5.00 400 11.6x10.0x7.5 80.0%
DBE2-2412
2.00 24(21.6~26.4) 9.00 222 11.6x10.0x7.5 83.0%
DBE2-2413
2.00 24(21.6~26.4) 12.00 167 11.6x10.0x7.5 84.0%
DBE2-2414
2.00 24(21.6~26.4) 15.00 133 11.6x10.0x7.5 72.0%
DAR-2
2.00 5-24(±5%) 5-24 - 19.6x10.0x7.0 see specification
-
DAR2-0511
2.00 5(4.75~5.25) 5.00 400 19.6x10.0x7.0 70.0%
DAR2-0512
2.00 5(4.75~5.25) 9.00 222 19.6x10.0x7.0 70.0%
DAR2-0513
2.00 5(4.75~5.25) 12.00 167 19.6x10.0x7.0 70.0%
DAR2-0514
2.00 5(4.75~5.25) 15.00 133 19.6x10.0x7.0 70.0%
DAR2-0515
2.00 5(4.75~5.25) 24.00 83 19.6x10.0x7.0 70.0%
DAR2-1211
2.00 12(11.4~12.6) 3.30 400 19.6x10.0x7.0 70.0%
DAR2-1212
2.00 12(11.4~12.6) 5.00 222 19.6x10.0x7.0 72.0%
DAR2-1213
2.00 12(11.4~12.6) 9.00 167 19.6x10.0x7.0 70.0%
DAR2-1214
2.00 12(11.4~12.6) 12.00 133 19.6x10.0x7.0 70.0%
DAR2-1215
2.00 12(11.4~12.6) 15.00 83 19.6x10.0x7.0 72.0%
DAR2-1511
2.00 15(14.25~15.75) 24.00 400 19.6x10.0x7.0 71.0%
DAR2-1512
2.00 15(14.25~15.75) 5.00 222 19.6x10.0x7.0 70.0%
DAR2-1513
2.00 15(14.25~15.75) 9.00 167 19.6x10.0x7.0 72.0%
DAR2-1514
2.00 15(14.25~15.75) 12.00 133 19.6x10.0x7.0 70.0%
DAR2-1515
2.00 15(14.25~15.75) 15.00 83 19.6x10.0x7.0 72.0%
DAR2-2410
2.00 24(22.8~25.2) 24.00 606 19.6x10.0x7.0 70.0%
DAR2-2411
2.00 24(22.8~25.2) 5.00 400 19.6x10.0x7.0 71.0%
DAR2-2412
2.00 24(22.8~25.2) 9.00 222 19.6x10.0x7.0 70.0%
DAR2-2413
2.00 24(22.8~25.2) 12.00 167 19.6x10.0x7.0 72.0%
DAR2-2414
2.00 24(22.8~25.2) 15.00 133 19.6x10.0x7.0 70.0%
DAR2-2415
2.00 24(22.8~25.2) 24.00 83 19.6x10.0x7.0 72.0%
DAR-2F
2.00 5-24(±5%) 5-24 - 19.6x10.0x7.0 see specification
-
DAR2-0511F
2.00 5(4.75~5.25) 5.00 400 19.6x10.0x7.0 69.0%
DAR2-0513F
2.00 5(4.75~5.25) 12.00 167 19.6x10.0x7.0 69.0%
DAR2-0514F
2.00 5(4.75~5.25) 15.00 133 19.6x10.0x7.0 69.0%
DAR2-0515F
2.00 5(4.75~5.25) 24.00 83 19.6x10.0x7.0 70.0%
DAR2-1211F
2.00 12(11.4~12.6) 3.30 400 19.6x10.0x7.0 69.0%
DAR2-1213F
2.00 12(11.4~12.6) 9.00 167 19.6x10.0x7.0 69.0%
DAR2-1214F
2.00 12(11.4~12.6) 12.00 133 19.6x10.0x7.0 70.0%
DAR2-1215F
2.00 12(11.4~12.6) 15.00 83 19.6x10.0x7.0 72.0%
DAR2-2411F
2.00 24(22.8~25.2) 5.00 400 19.6x10.0x7.0 71.0%
DAR2-2413F
2.00 24(22.8~25.2) 12.00 167 19.6x10.0x7.0 70.0%
DAR2-2414F
2.00 24(22.8~25.2) 15.00 133 19.6x10.0x7.0 70.0%
DAR2-2415F
2.00 24(22.8~25.2) 24.00 83 19.6x10.0x7.0 70.0%
DMV-1
1.00 3.3-24V(±10%) - - 12.7x10.0x7.7 -
-
DMV1-0310
1.00 3.3(3.0~3.6) 3.30 300 12.7x10.0x7.7 76.0%
DMV1-0311
1.00 3.3(3.0~3.6) 5.00 200 12.7x10.0x7.7 76.0%
DMV1-0312
1.00 3.3(3.0~3.6) 9.00 111 12.7x10.0x7.7 76.0%
DMV1-0313
1.00 3.3(3.0~3.6) 12.00 83 12.7x10.0x7.7 76.0%
DMV1-0314
1.00 3.3(3.0~3.6) 15.00 67 12.7x10.0x7.7 76.0%
DMV1-0320
1.00 3.3(3.0~3.6) ±3.3 150 12.7x10.0x7.7 74.0%
DMV1-0321
1.00 3.3(3.0~3.6) ±5 100 12.7x10.0x7.7 76.0%
DMV1-0322
1.00 3.3(3.0~3.6) ±9 56 12.7x10.0x7.7 78.0%
DMV1-0323
1.00 3.3(3.0~3.6) ±12 42 12.7x10.0x7.7 78.0%
DMV1-0324
1.00 3.3(3.0~3.6) ±15 33 12.7x10.0x7.7 78.0%
DMV1-0301
1.00 3.3(3.0~3.6) 5, 5 100 12.7x10.0x7.7 79.0%
DMV1-0302
1.00 3.3(3.0~3.6) 9, 9 56 12.7x10.0x7.7 79.0%
DMV1-0303
1.00 3.3(3.0~3.6) 12, 12 42 12.7x10.0x7.7 78.0%
DMV1-0304
1.00 3.3(3.0~3.6) 15, 15 33 12.7x10.0x7.7 78.0%
DMV1-0510
1.00 5(4.5~5.5) 3.30 300 12.7x10.0x7.7 76.0%
DMV1-0511
1.00 5(4.5~5.5) 5.00 200 12.7x10.0x7.7 80.0%
DMV1-0512
1.00 5(4.5~5.5) 9.00 111 12.7x10.0x7.7 80.0%
DMV1-0513
1.00 5(4.5~5.5) 12.00 83 12.7x10.0x7.7 77.0%
DMV1-0514
1.00 5(4.5~5.5) 15.00 67 12.7x10.0x7.7 78.0%
DMV1-0520
1.00 5(4.5~5.5) ±3.3 150 12.7x10.0x7.7 74.0%
DMV1-0521
1.00 5(4.5~5.5) ±5 100 12.7x10.0x7.7 80.0%
DMV1-0522
1.00 5(4.5~5.5) ±9 56 12.7x10.0x7.7 80.0%
DMV1-0523
1.00 5(4.5~5.5) ±12 42 12.7x10.0x7.7 79.0%
DMV1-0524
1.00 5(4.5~5.5) ±15 33 12.7x10.0x7.7 79.0%
DMV1-0501
1.00 5(4.5~5.5) 5, 5 100 12.7x10.0x7.7 80.0%
DMV1-0502
1.00 5(4.5~5.5) 9, 9 56 12.7x10.0x7.7 80.0%
DMV1-0503
1.00 5(4.5~5.5) 12, 12 42 12.7x10.0x7.7 80.0%
DMV1-0504
1.00 5(4.5~5.5) 15, 15 33 12.7x10.0x7.7 79.0%
DMV1-1210
1.00 12(10.8~13.2) 3.30 300 12.7x10.0x7.7 77.0%
DMV1-1211
1.00 12(10.8~13.2) 5.00 200 12.7x10.0x7.7 78.0%
DMV1-1212
1.00 12(10.8~13.2) 9.00 111 12.7x10.0x7.7 78.0%
DMV1-1213
1.00 12(10.8~13.2) 12.00 83 12.7x10.0x7.7 80.0%
DMV1-1214
1.00 12(10.8~13.2) 15.00 67 12.7x10.0x7.7 80.0%
DMV1-1220
1.00 12(10.8~13.2) ±3.3 150 12.7x10.0x7.7 76.0%
DMV1-1221
1.00 12(10.8~13.2) ±5 100 12.7x10.0x7.7 80.0%
DMV1-1222
1.00 12(10.8~13.2) ±9 56 12.7x10.0x7.7 77.0%
DMV1-1223
1.00 12(10.8~13.2) ±12 42 12.7x10.0x7.7 79.0%
DMV1-1224
1.00 12(10.8~13.2) ±15 33 12.7x10.0x7.7 79.0%
DMV1-1201
1.00 12(10.8~13.2) 5, 5 100 12.7x10.0x7.7 80.0%
DMV1-1202
1.00 12(10.8~13.2) 9, 9 56 12.7x10.0x7.7 77.0%
DMV1-1203
1.00 12(10.8~13.2) 12, 12 42 12.7x10.0x7.7 79.0%
DMV1-1204
1.00 12(10.8~13.2) 15, 15 33 12.7x10.0x7.7 79.0%
DMV1-2410
1.00 24(21.6~26.4) 3.30 300 12.7x10.0x7.7 74.0%
DMV1-2411
1.00 24(21.6~26.4) 5.00 200 12.7x10.0x7.7 70.0%
DMV1-2412
1.00 24(21.6~26.4) 9.00 111 12.7x10.0x7.7 76.0%
DMV1-2413
1.00 24(21.6~26.4) 12.00 83 12.7x10.0x7.7 78.0%
DMV1-2414
1.00 24(21.6~26.4) 15.00 67 12.7x10.0x7.7 80.0%
DMV1-2420
1.00 24(21.6~26.4) ±3.3 150 12.7x10.0x7.7 70.0%
DMV1-2421
1.00 24(21.6~26.4) ±5 100 12.7x10.0x7.7 69.0%
DMV1-2422
1.00 24(21.6~26.4) ±9 56 12.7x10.0x7.7 74.0%
DMV1-2423
1.00 24(21.6~26.4) ±12 42 12.7x10.0x7.7 72.0%
DMV1-2424
1.00 24(21.6~26.4) ±15 33 12.7x10.0x7.7 72.0%
DMV1-2401
1.00 24(21.6~26.4) 5, 5 100 12.7x10.0x7.7 69.0%
DMV1-2402
1.00 24(21.6~26.4) 9, 9 56 12.7x10.0x7.7 74.0%
DMV1-2403
1.00 24(21.6~26.4) 12, 12 42 12.7x10.0x7.7 78.0%
DMV1-2404
1.00 24(21.6~26.4) 15, 15 33 12.7x10.0x7.7 78.0%
DMV-12W
12.00 24V 48V - - 50.8x25.4x10.16 83.0%
-
DMV12W-2411
12.00 24(9~36) 5.00 2400 50.8x25.4x10.16 81.0%
DMV12W-2412
12.00 24(9~36) 9.00 1333 50.8x25.4x10.16 84.0%
DMV12W-2413
12.00 24(9~36) 12.00 1000 50.8x25.4x10.16 84.0%
DMV12W-2414
12.00 24(9~36) 15.00 800 50.8x25.4x10.16 85.0%
DMV12W-2415
12.00 24(9~36) 24.00 500 50.8x25.4x10.16 86.0%
DMV12W-4811
12.00 48(18~72) 5.00 2400 50.8x25.4x10.16 81.0%
DMV12W-4812
12.00 48(18~72) 9.00 1333 50.8x25.4x10.16 84.0%
DMV12W-4813
12.00 48(18~72) 12.00 1000 50.8x25.4x10.16 84.0%
DMV12W-4814
12.00 48(18~72) 15.00 800 50.8x25.4x10.16 85.0%
DMV12W-4815
12.00 48(18~72) 24.00 500 50.8x25.4x10.16 86.0%
DAM-1
1.00 3.3-24V(±10%) - - 20.3x10.0x7.0 -
-
DAM1-0310
1.00 3.3(3.0~3.6) 3.30 300 20.3x10.0x7.0 72.0%
DAM1-0311
1.00 3.3(3.0~3.6) 5.00 200 20.3x10.0x7.0 74.0%
DAM1-0312
1.00 3.3(3.0~3.6) 9.00 111 20.3x10.0x7.0 72.0%
DAM1-0313
1.00 3.3(3.0~3.6) 12.00 83 20.3x10.0x7.0 72.0%
DAM1-0314
1.00 3.3(3.0~3.6) 15.00 67 20.3x10.0x7.0 72.0%
DAM1-0510
1.00 5(4.5~5.5) 3.30 300 20.3x10.0x7.0 70.0%
DAM1-0511
1.00 5(4.5~5.5) 5.00 200 20.3x10.0x7.0 70.0%
DAM1-0512
1.00 5(4.5~5.5) 9.00 111 20.3x10.0x7.0 78.0%
DAM1-0513
1.00 5(4.5~5.5) 12.00 83 20.3x10.0x7.0 78.0%
DAM1-0514
1.00 5(4.5~5.5) 15.00 67 20.3x10.0x7.0 80.0%
DAM1-0515
1.00 5(4.5~5.5) 24.00 42 20.3x10.0x7.0 81.0%
DAM1-0521
1.00 5(4.5~5.5) ±5 100 20.3x10.0x7.0 72.0%
DAM1-0522
1.00 5(4.5~5.5) ±9 56 20.3x10.0x7.0 78.0%
DAM1-0523
1.00 5(4.5~5.5) ±12 42 20.3x10.0x7.0 79.0%
DAM1-0524
1.00 5(4.5~5.5) ±15 33 20.3x10.0x7.0 79.0%
DAM1-0501
1.00 5(4.5~5.5) 5, 5 100 20.3x10.0x7.0 70.0%
DAM1-0502
1.00 5(4.5~5.5) 9, 9 56 20.3x10.0x7.0 76.0%
DAM1-0503
1.00 5(4.5~5.5) 12, 12 42 20.3x10.0x7.0 77.0%
DAM1-0504
1.00 5(4.5~5.5) 15, 15 33 20.3x10.0x7.0 78.0%
DAM1-1210
1.00 12(10.8~13.2) 3.30 300 20.3x10.0x7.0 73.0%
DAM1-1211
1.00 12(10.8~13.2) 5.00 200 20.3x10.0x7.0 71.0%
DAM1-1212
1.00 12(10.8~13.2) 9.00 111 20.3x10.0x7.0 76.0%
DAM1-1213
1.00 12(10.8~13.2) 12.00 83 20.3x10.0x7.0 78.0%
DAM1-1214
1.00 12(10.8~13.2) 15.00 67 20.3x10.0x7.0 79.0%
DAM1-1215
1.00 12(10.8~13.2) 24.00 42 20.3x10.0x7.0 78.0%
DAM1-1221
1.00 12(10.8~13.2) ±5 100 20.3x10.0x7.0 72.0%
DAM1-1222
1.00 12(10.8~13.2) ±9 56 20.3x10.0x7.0 78.0%
DAM1-1223
1.00 12(10.8~13.2) ±12 42 20.3x10.0x7.0 79.0%
DAM1-1224
1.00 12(10.8~13.2) ±15 33 20.3x10.0x7.0 78.0%
DAM1-1201
1.00 12(10.8~13.2) 5, 5 100 20.3x10.0x7.0 72.0%
DAM1-1202
1.00 12(10.8~13.2) 9, 9 56 20.3x10.0x7.0 78.0%
DAM1-1203
1.00 12(10.8~13.2) 12, 12 42 20.3x10.0x7.0 78.0%
DAM1-1204
1.00 12(10.8~13.2) 15, 15 33 20.3x10.0x7.0 80.0%
DAM1-1511
1.00 15(13.5~16.5) 5.00 200 20.3x10.0x7.0 79.0%
DAM1-1514
1.00 15(13.5~16.5) 15.00 67 20.3x10.0x7.0 79500.0%
DAM1-2410
1.00 24(21.6~26.4) 3.30 300 20.3x10.0x7.0 72.0%
DAM1-2411
1.00 24(21.6~26.4) 5.00 200 20.3x10.0x7.0 73.0%
DAM1-2412
1.00 24(21.6~26.4) 9.00 111 20.3x10.0x7.0 78.0%
DAM1-2413
1.00 24(21.6~26.4) 12.00 83 20.3x10.0x7.0 78.0%
DAM1-2414
1.00 24(21.6~26.4) 15.00 67 20.3x10.0x7.0 79.0%
DAM1-2415
1.00 24(21.6~26.4) 24.00 42 20.3x10.0x7.0 81.0%
DAM1-2421
1.00 24(21.6~26.4) ±5 100 20.3x10.0x7.0 72.0%
DAM1-2422
1.00 24(21.6~26.4) ±9 56 20.3x10.0x7.0 79.0%
DAM1-2423
1.00 24(21.6~26.4) ±12 42 20.3x10.0x7.0 80.0%
DAM1-2424
1.00 24(21.6~26.4) ±15 33 20.3x10.0x7.0 80.0%
DAM1-2401
1.00 24(21.6~26.4) 5, 5 100 20.3x10.0x7.0 71.0%
DAM1-2402
1.00 24(21.6~26.4) 9, 9 56 20.3x10.0x7.0 74.0%
DAM1-2403
1.00 24(21.6~26.4) 12, 12 42 20.3x10.0x7.0 76.0%
DAM1-2404
1.00 24(21.6~26.4) 15, 15 33 20.3x10.0x7.0 76.0%
DAM-1H
1.00 5-24V(±10%) - - 32.3x16.4x10.3 -
-
DAM1-0311H
1.00 3.3(3.0~3.6) 5.00 200 32.3x16.4x10.3 74.0%
DAM1-0312H
1.00 3.3(3.0~3.6) 9.00 111 32.3x16.4x10.3 72.0%
DAM1-0313H
1.00 3.3(3.0~3.6) 12.00 83 32.3x16.4x10.3 72.0%
DAM1-0314H
1.00 3.3(3.0~3.6) 15.00 67 32.3x16.4x10.3 72.0%
DAM1-0510H
1.00 5(4.5~5.5) 3.30 300 32.3x16.4x10.3 70.0%
DAM1-0511H
1.00 5(4.5~5.5) 5.00 200 32.3x16.4x10.3 70.0%
DAM1-0512H
1.00 5(4.5~5.5) 9.00 111 32.3x16.4x10.3 78.0%
DAM1-0513H
1.00 5(4.5~5.5) 12.00 83 32.3x16.4x10.3 78.0%
DAM1-0514H
1.00 5(4.5~5.5) 15.00 67 32.3x16.4x10.3 80.0%
DAM1-0515H
1.00 5(4.5~5.5) 24.00 42 32.3x16.4x10.3 81.0%
DAM1-0521H
1.00 5(4.5~5.5) ±5 100 32.3x16.4x10.3 72.0%
DAM1-0522H
1.00 5(4.5~5.5) ±9 56 32.3x16.4x10.3 78.0%
DAM1-0523H
1.00 5(4.5~5.5) ±12 42 32.3x16.4x10.3 79.0%
DAM1-0524H
1.00 5(4.5~5.5) ±15 33 32.3x16.4x10.3 79.0%
DAM1-1210H
1.00 12(10.8~13.2) 3.30 300 32.3x16.4x10.3 73.0%
DAM1-1211H
1.00 12(10.8~13.2) 5.00 200 32.3x16.4x10.3 71.0%
DAM1-1212H
1.00 12(10.8~13.2) 9.00 111 32.3x16.4x10.3 76.0%
DAM1-1213H
1.00 12(10.8~13.2) 12.00 83 32.3x16.4x10.3 78.0%
DAM1-1214H
1.00 12(10.8~13.2) 15.00 67 32.3x16.4x10.3 79.0%
DAM1-1215H
1.00 12(10.8~13.2) 24.00 42 32.3x16.4x10.3 78.0%
DAM1-1221H
1.00 12(10.8~13.2) ±5 100 32.3x16.4x10.3 72.0%
DAM1-1222H
1.00 12(10.8~13.2) ±9 56 32.3x16.4x10.3 78.0%
DAM1-1223H
1.00 12(10.8~13.2) ±12 42 32.3x16.4x10.3 79.0%
DAM1-1224H
1.00 12(10.8~13.2) ±15 33 32.3x16.4x10.3 78.0%
DAM1-1511H
1.00 15(13.5~16.5) 5.00 200 32.3x16.4x10.3 79.0%
DAM1-1514H
1.00 15(13.5~16.5) 15.00 67 32.3x16.4x10.3 79.0%
DAM1-2410H
1.00 24(21.6~26.4) 3.30 300 32.3x16.4x10.3 72.0%
DAM1-2411H
1.00 24(21.6~26.4) 5.00 200 32.3x16.4x10.3 73.0%
DAM1-2412H
1.00 24(21.6~26.4) 9.00 111 32.3x16.4x10.3 78.0%
DAM1-2413H
1.00 24(21.6~26.4) 12.00 83 32.3x16.4x10.3 78.0%
DAM1-2414H
1.00 24(21.6~26.4) 15.00 67 32.3x16.4x10.3 79.0%
DAM1-2415H
1.00 24(21.6~26.4) 24.00 42 32.3x16.4x10.3 81.0%
DAM1-2421H
1.00 24(21.6~26.4) ±5 100 32.3x16.4x10.3 72.0%
DAM1-2422H
1.00 24(21.6~26.4) ±9 56 32.3x16.4x10.3 79.0%
DAM1-2423H
1.00 24(21.6~26.4) ±12 42 32.3x16.4x10.3 80.0%
DAM1-2424H
1.00 24(21.6~26.4) ±15 33 32.3x16.4x10.3 80.0%
DAN-1
1.00 5-24V(±5%) - - 20.3x10.0x7.0 -
-
DAN1-0511
1.00 5(4.75~5.25) 5.00 200 20.3x10.0x7.0 71.0%
DAN1-0512
1.00 5(4.75~5.25) 9.00 111 20.3x10.0x7.0 60.0%
DAN1-0513
1.00 5(4.75~5.25) 12.00 83 20.3x10.0x7.0 64.0%
DAN1-0514
1.00 5(4.75~5.25) 15.00 67 20.3x10.0x7.0 65.0%
DAN1-0515
1.00 5(4.75~5.25) 24.00 42 20.3x10.0x7.0 62.0%
DAN1-1211
1.00 12(11.4~12.6) 5.00 200 20.3x10.0x7.0 72.0%
DAN1-1212
1.00 12(11.4~12.6) 9.00 111 20.3x10.0x7.0 67.0%
DAN1-1213
1.00 12(11.4~12.6) 12.00 83 20.3x10.0x7.0 65.0%
DAN1-1214
1.00 12(11.4~12.6) 15.00 67 20.3x10.0x7.0 64.0%
DAN1-1215
1.00 12(11.4~12.6) 24.00 42 20.3x10.0x7.0 66.0%
DAN1-1511
1.00 15(13.5~16.5) 5.00 200 20.3x10.0x7.0 70.0%
DAN1-1512
1.00 15(13.5~16.5) 9.00 111 20.3x10.0x7.0 65.0%
DAN1-1513
1.00 15(13.5~16.5) 12.00
